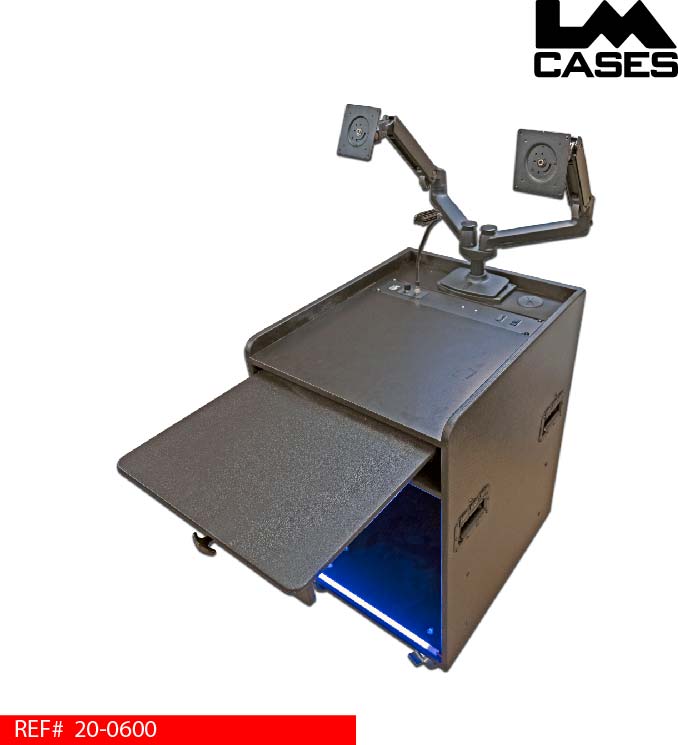

Show Control / System Processing Installed Cart
This custom show control cart is designed for installed applications. The all-black finish helps it blend into any background. The primary applications are for show control and or PA system processing.

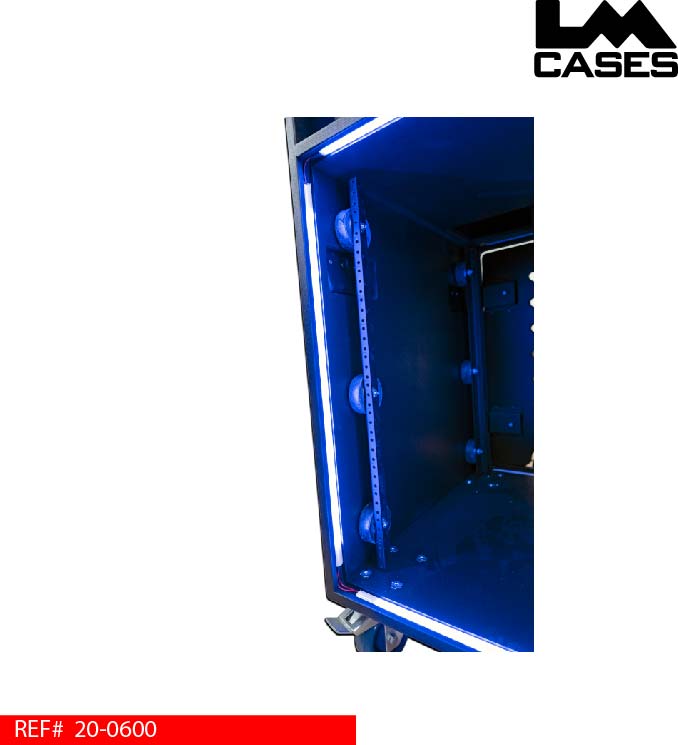

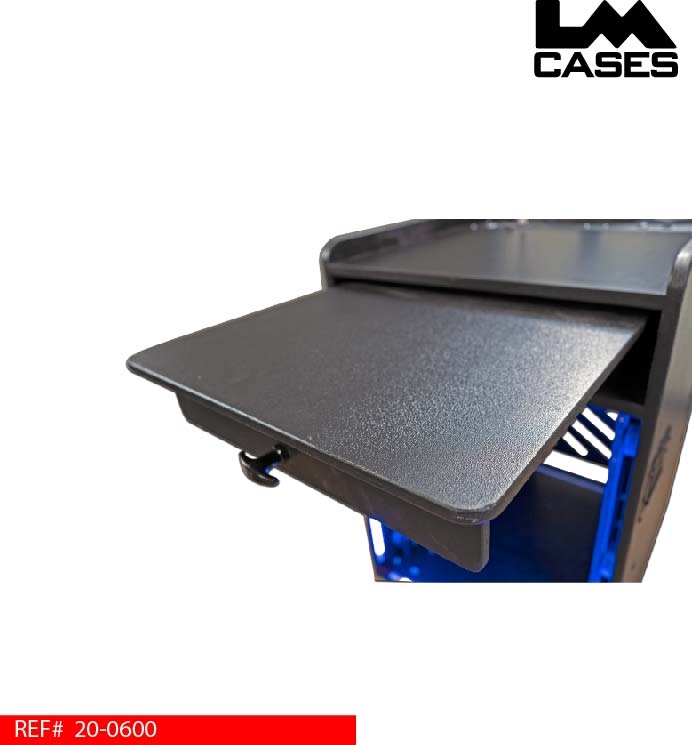

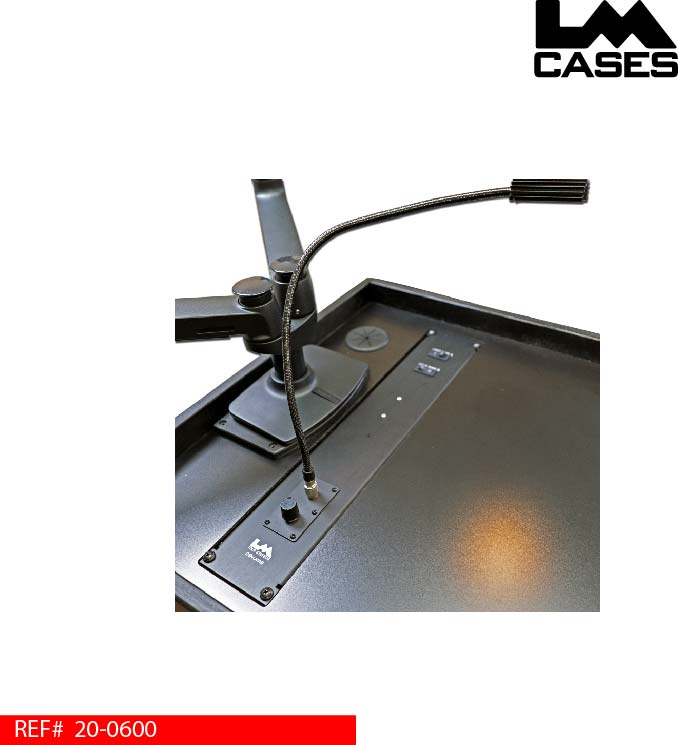

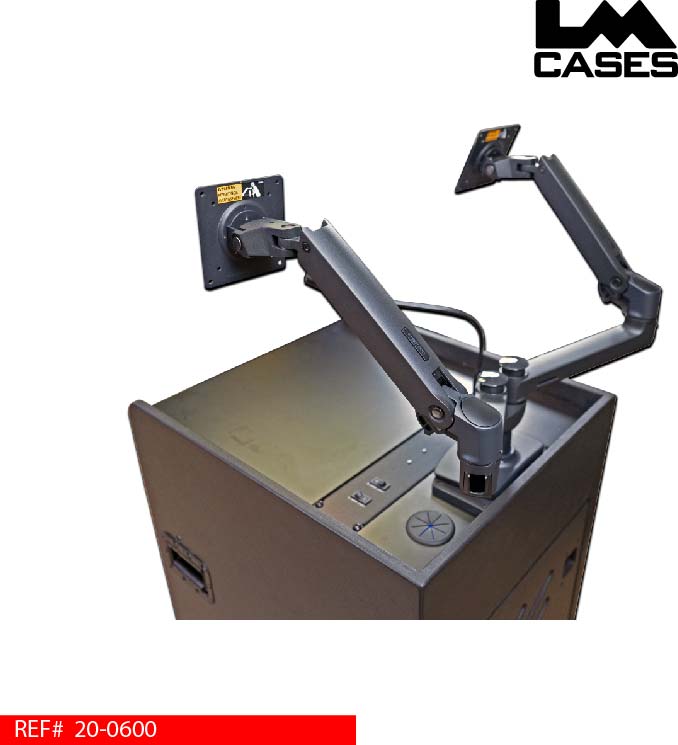

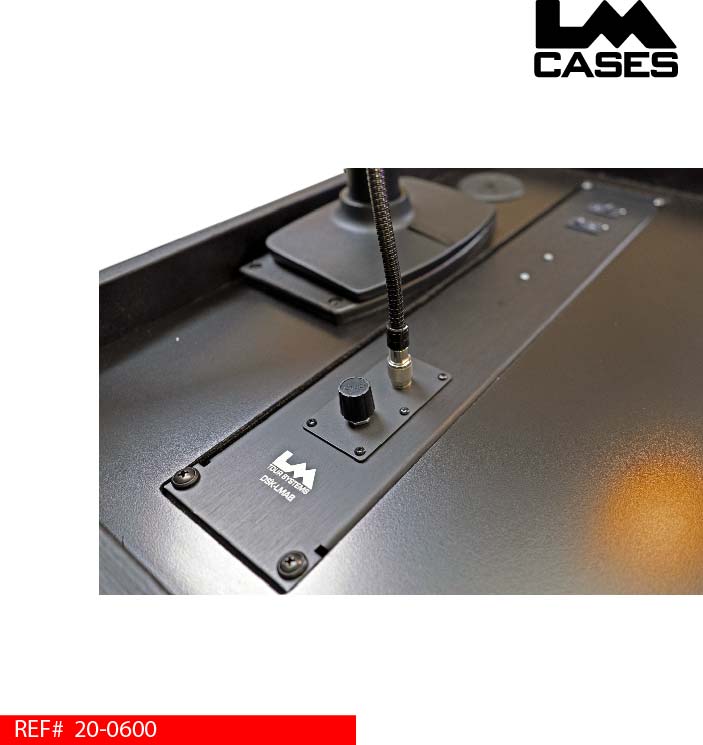

The cart features a dual monitor Ergotron mount allowing monitors to be positioned wherever users need them. The work surface is laminated with black Formica as a smooth covering for writing. The work surface features a 2U rack section that is loaded with a LM Tour Systems LMAB light module. This light module features a dimmable gooseneck light for the work surface in addition to 2 switched banks for the rack’s LED lights. The below rack features blue LED lights mounted in the front & red LED lights mounted in the back. Below the main worksurface is a slide out shelf. This shelf features multi-point locking latches that allow the shelf to be locked in various 1” increments via a single pull handle.

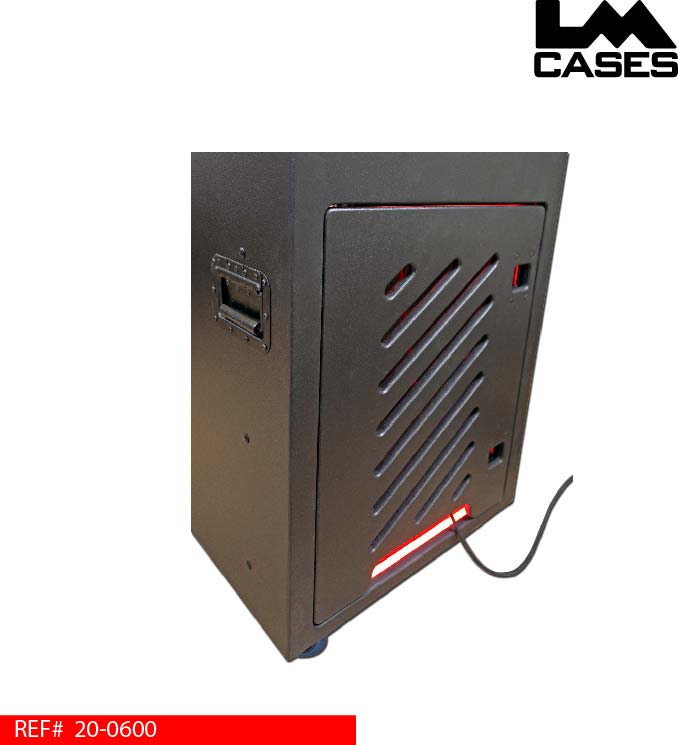

The 14U rack section is 26.75” deep. Front and rear rails are recessed 3” with 20” between the rails. The back of the rack features a vented door with slam latches.
The case exterior and all interior components are built from ¾” Baltic Birch finished with black texture coating. All hardware and fasteners are black. The case rides on 4” casters with the front 2 locking.
For a detailed Project Spotlight video on this case, CLICK HERE.
- REFERENCE: 20-0600
- CATEGORY: Audio/Visual CATEGORY: Custom Integration
