Portable Game Film Trunk With 60” TV

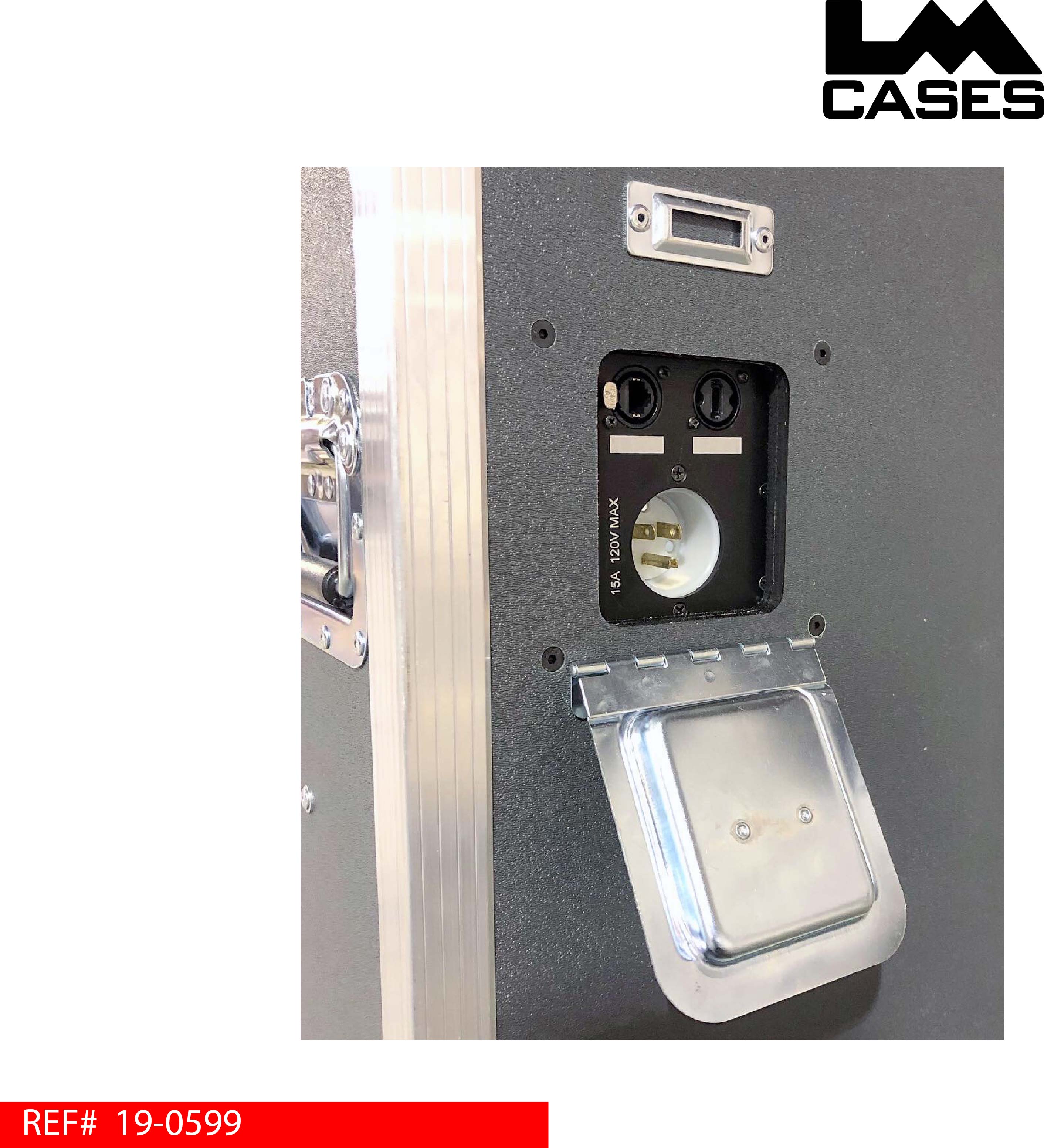

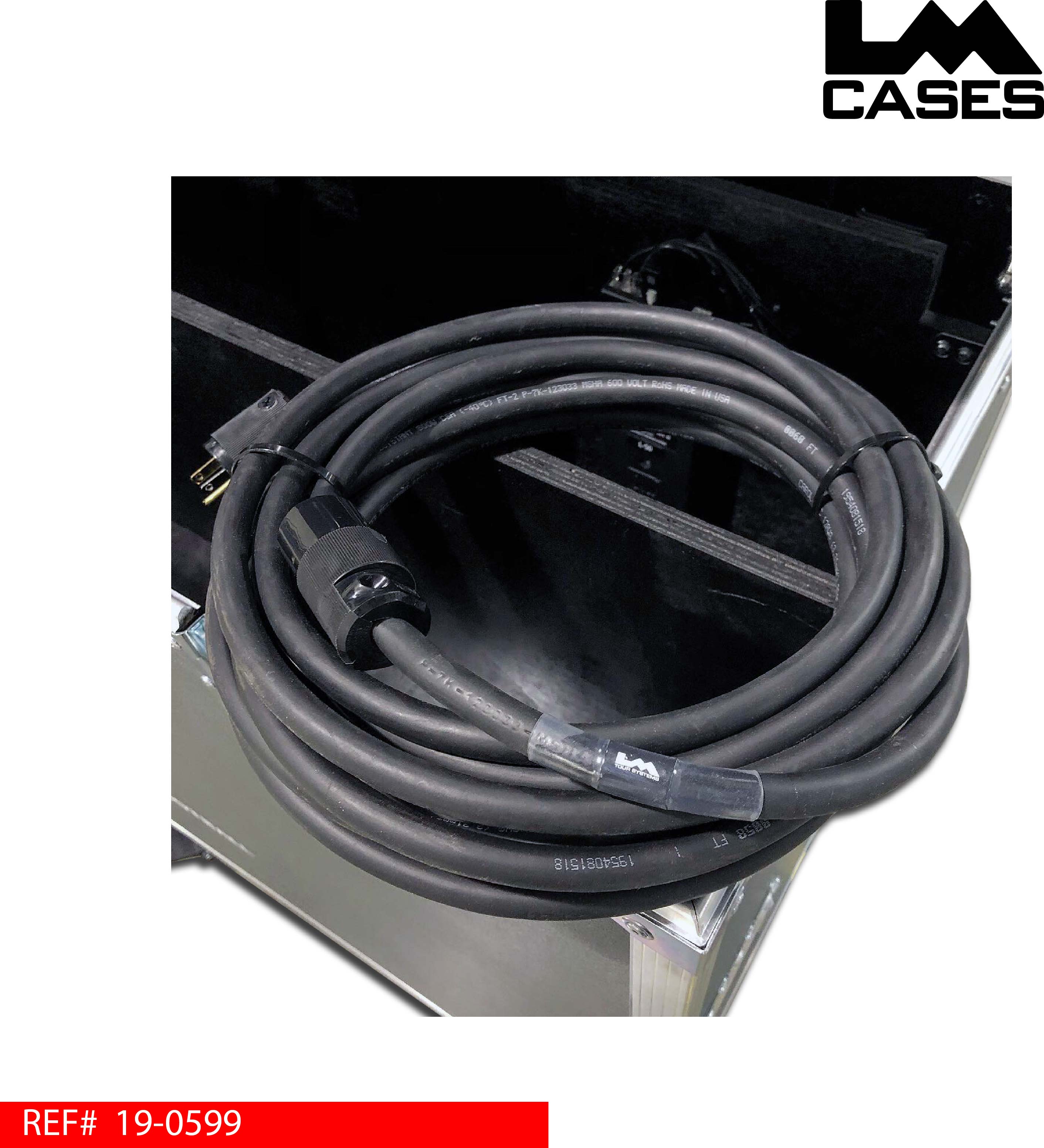

This case was built for West Memphis High School for portable game films. The case features a 60” monitor installed on a HD tour grade electric lift. The lift is controlled with a hardwired remote control that can either be used in the case or handheld. The monitor is wired to a custom IO box that features Neutrik® HDMI and Cat5 jacks. A recessed Hubbell power inlet is the main input source of power. A 25’ 12awg HD extra hard usage power cable is included.

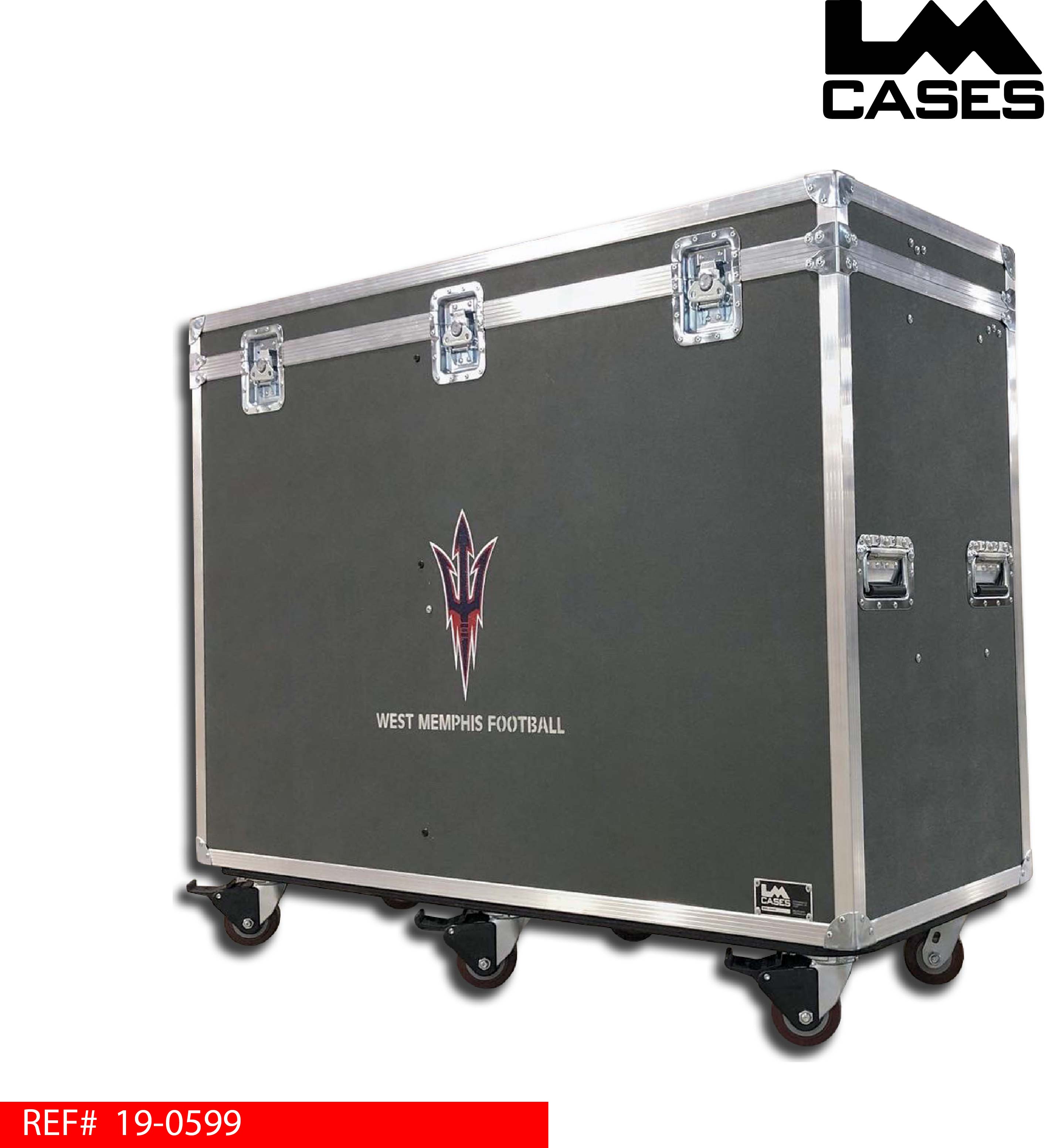

The exterior case is built out of ½” plywood laminated with your choice of ABS colors. The case rides on 6 – 4” x 2” Colson HD casters, with the front 3 locking. The exterior dims are 60” x 22.5” for truck pack. The case lid is supported by gas springs to ensure the lid will not fall on the monitor during use.
To purchase this case from our online store, CLICK HERE.
