Sonnet RackMac Pro Flypack Case

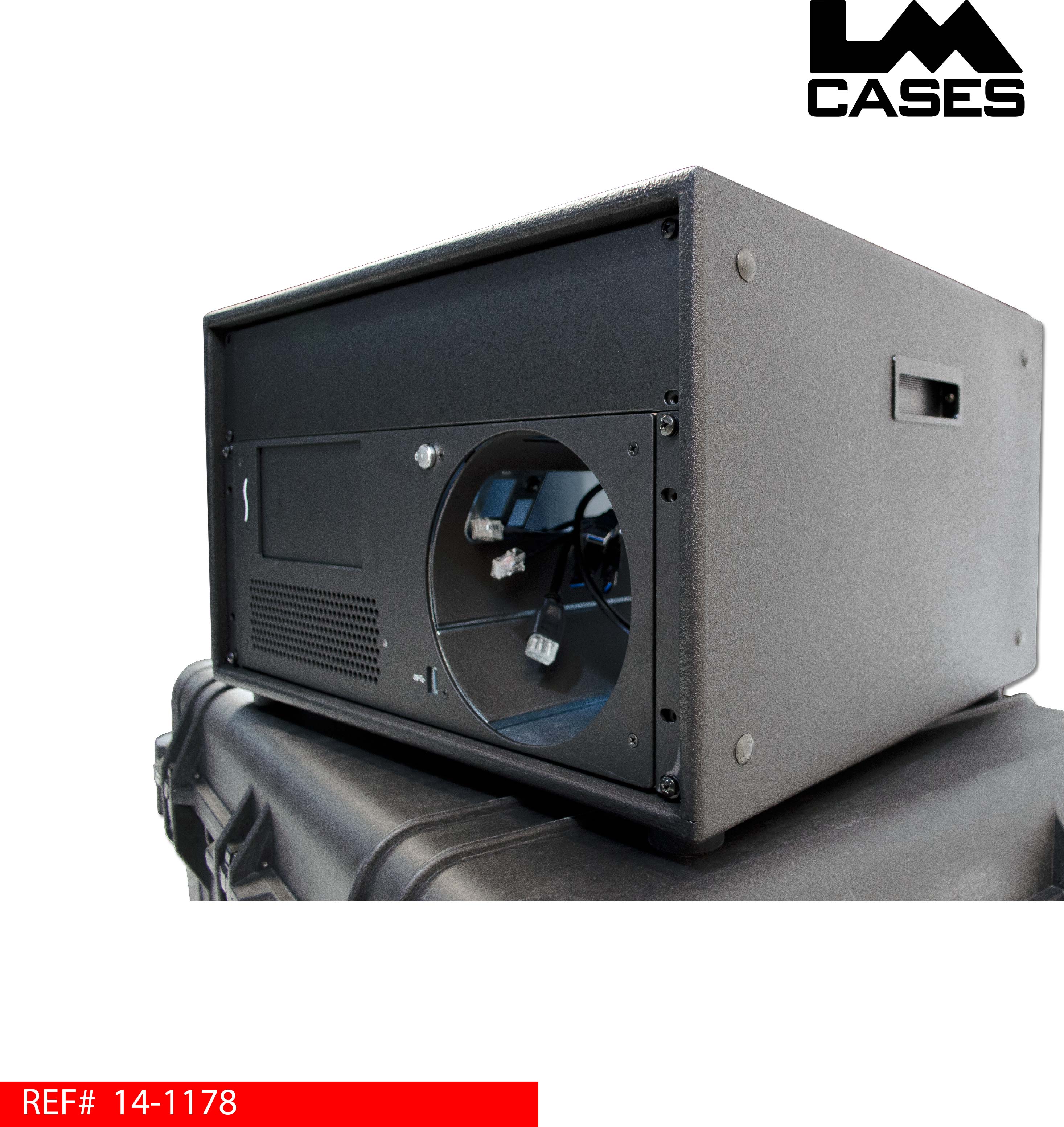

This flypack system was designed for the Farm League. The system is based around a Sonnet MacRack Pro mounted in a 6RU rack housed in a Pelican 1630 case.

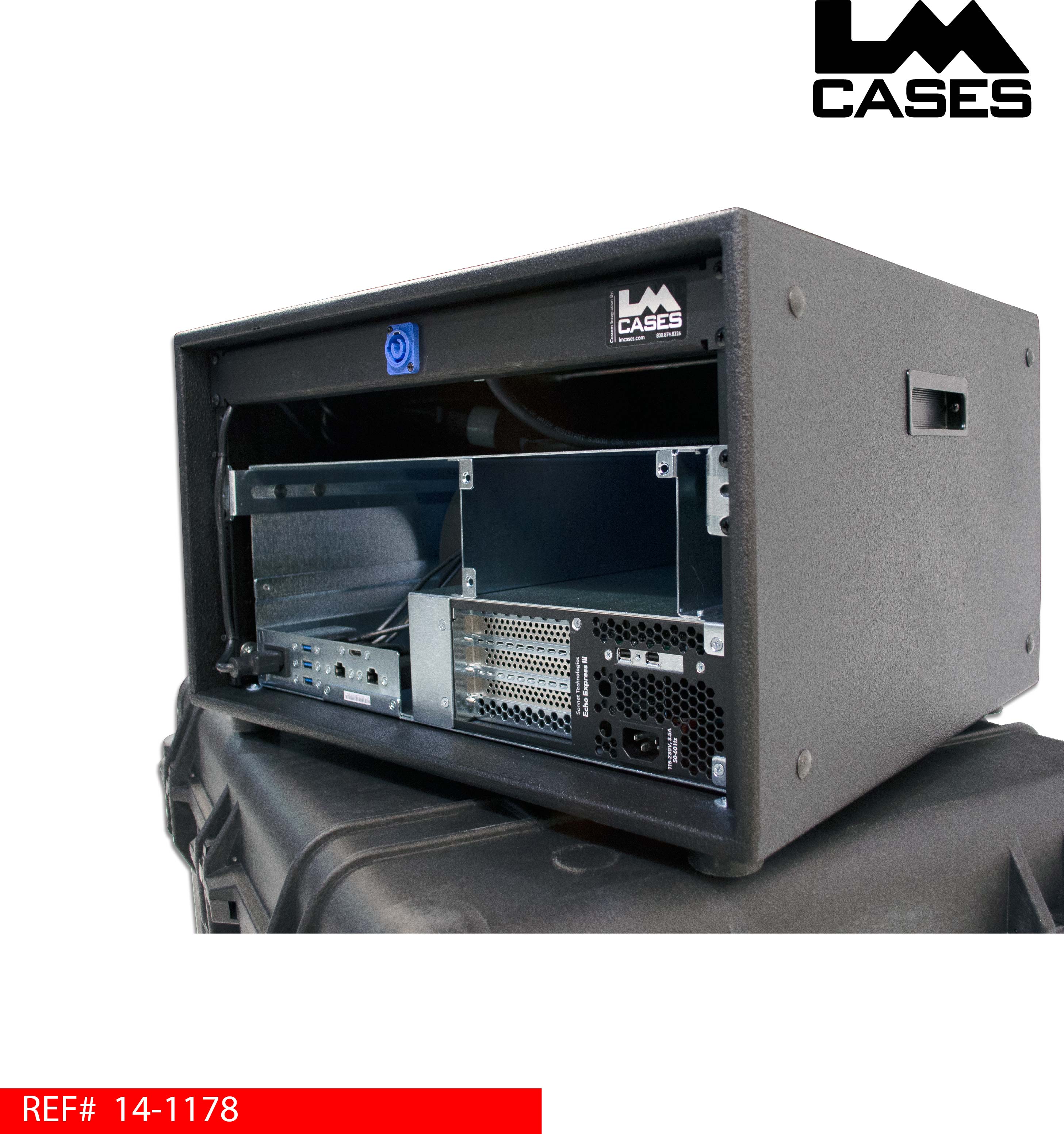

The interior rack is built out of 1/2" Baltic birch and is finished with black texture coating. The rack holds the MacRack with 2 additional rack spaces above for flexibility and future expansion. The LM Cases Custom Integration department created a 1RU rack panel with a Powercon jack allowing this case to be powered by an existing UPS system.

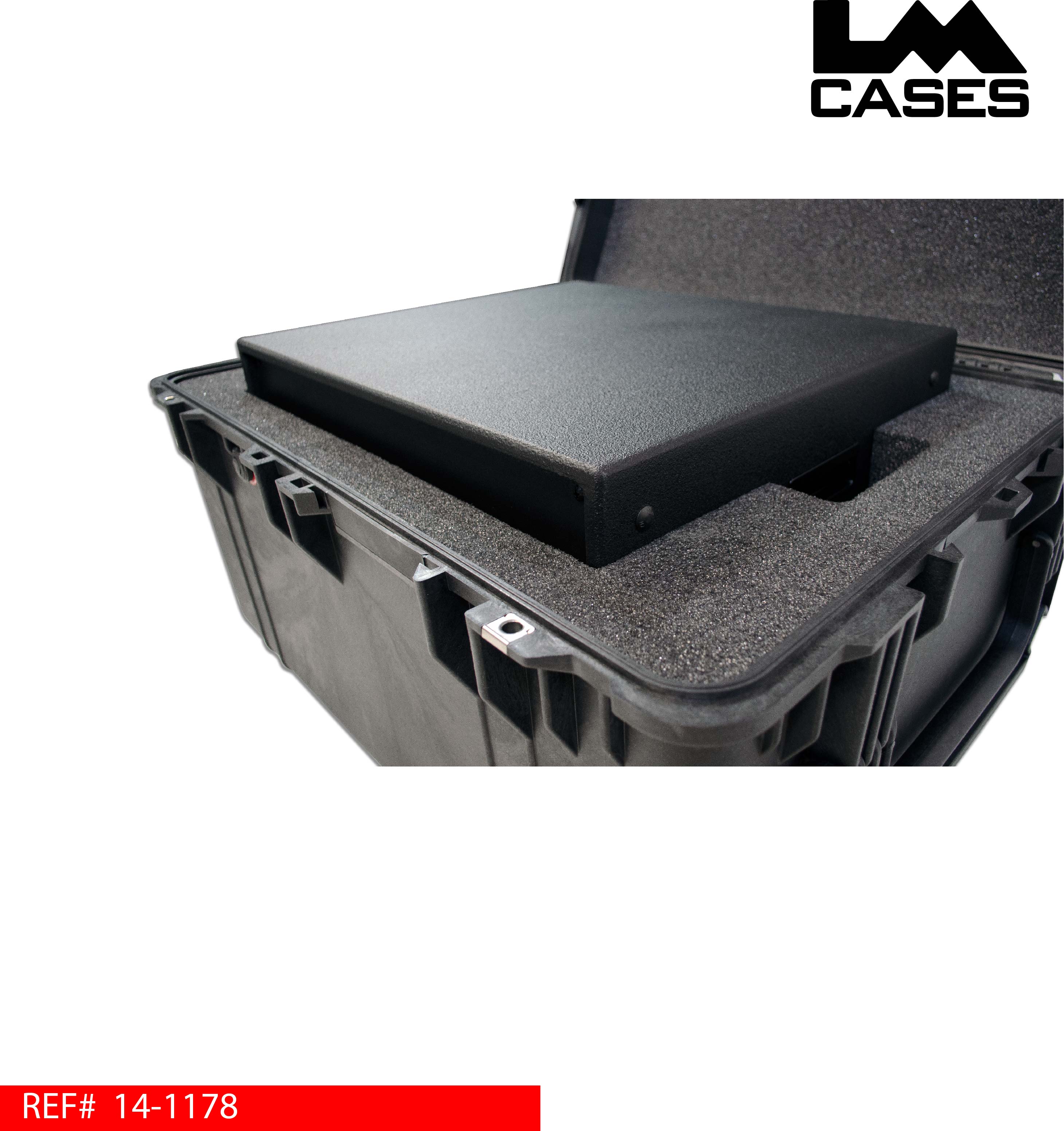

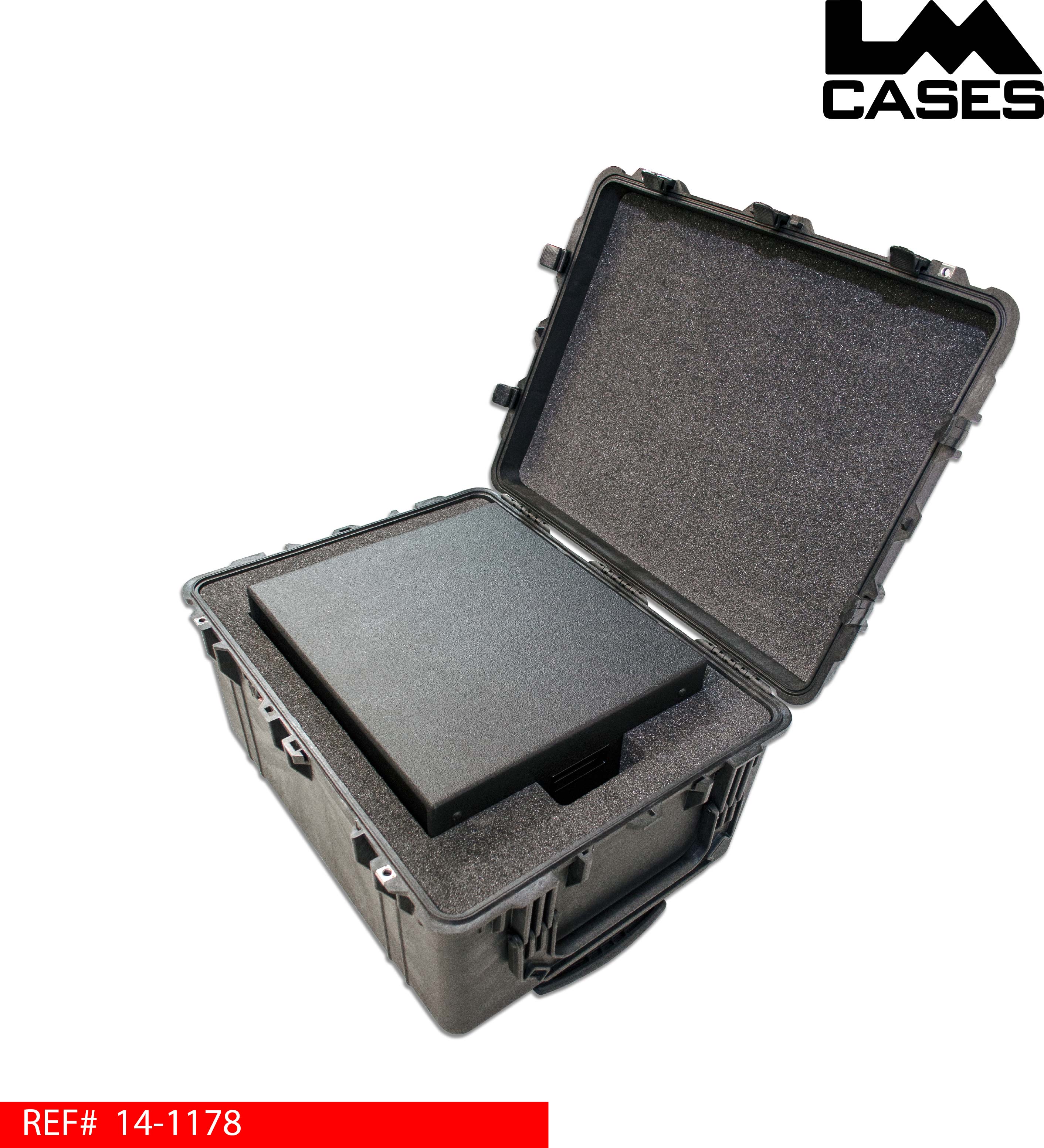

The rack shell is held in a custom CNC cut foam insert mounted in a Pelican 1630 case.
Special thanks to Farm League for a great project!
- REFERENCE: 14-1178
-
CATEGORY: Audio/Visual
CATEGORY: Custom Integration
