Snap Attack / Aerial Attack Football Machine Trunk w/Generator

This trunk is designed to hold a Snap Attack football launching machine. The trunk is fully integrated with a 125ft power cable reel, and a gas generator for long distance or remote operation. The lids of the trunk fold down and feature nets for ball storage during use.

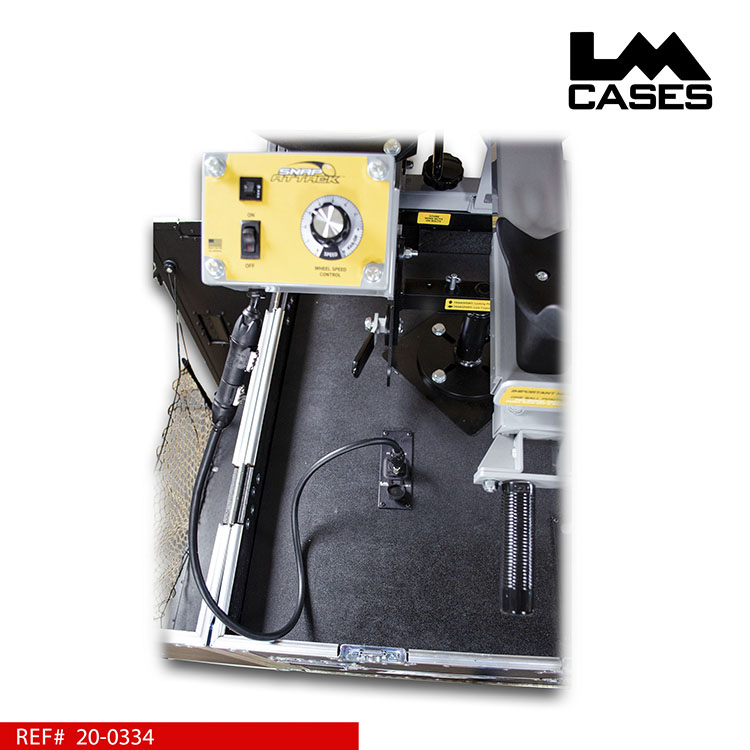

The machine is mounted via a custom metal collar. This collar is then mounted to 2 pieces of plasma cut ¼” steel for maximum strength and stability during use. The machine’s power cable is upgraded with a locking waterproof connector. A custom LM Tour Systems DSK-T outlet box is mounted in the main surface to provide a locking power outlet for the Snap Attack.

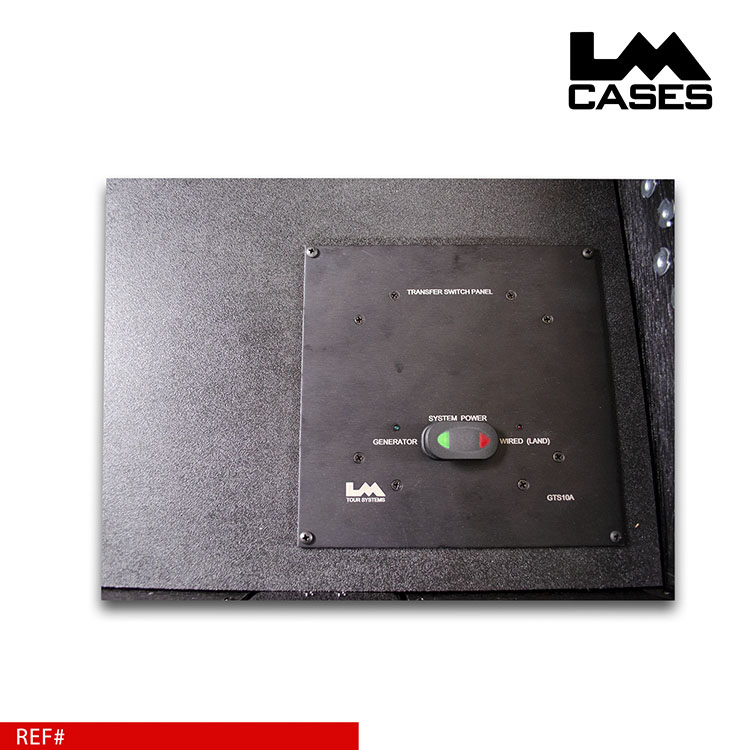

Distribution is handled by an LM Tour Systems GTSA10A transfer switch panel. This panel allows the user to quickly switch between the generator and the cable reel to power the Snap Attach.

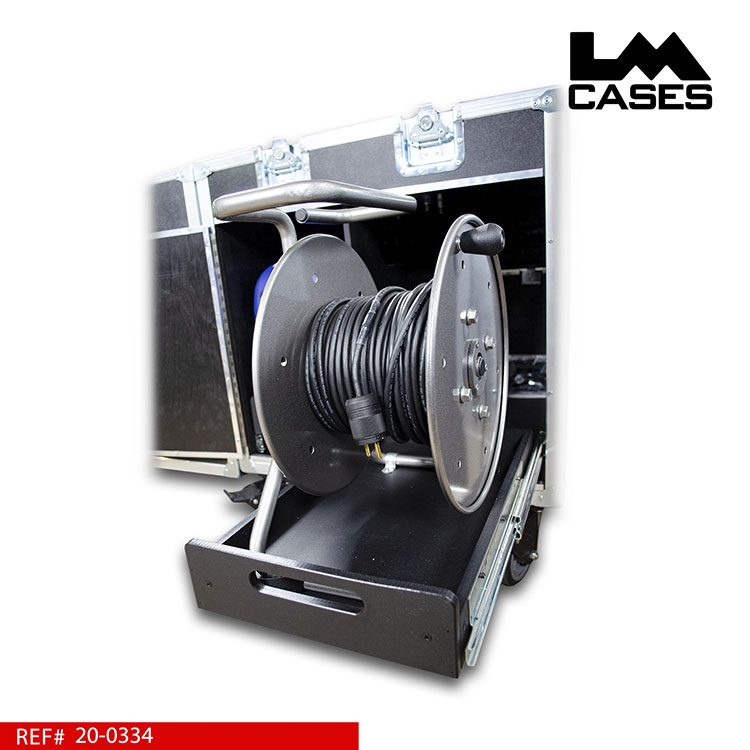

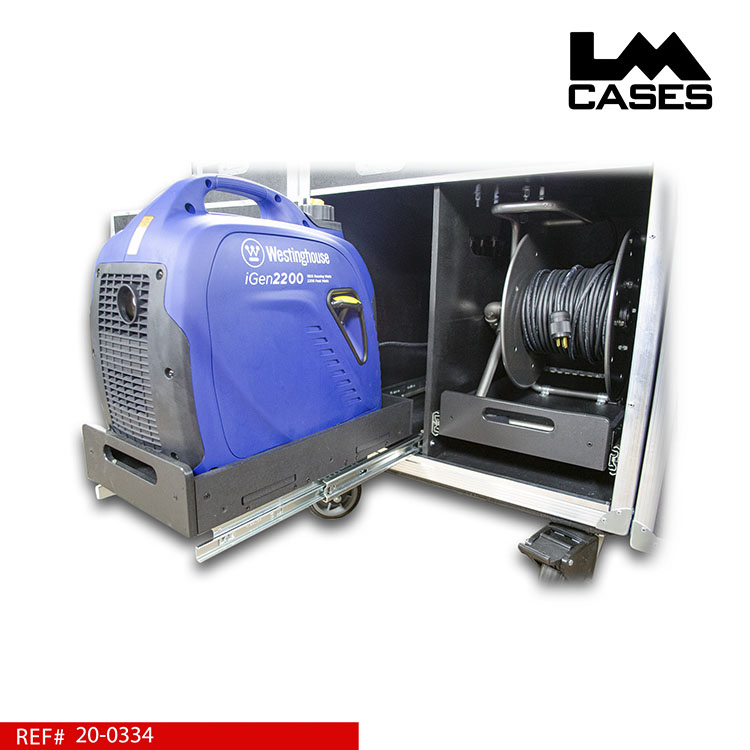

125ft of HD SO cable is mounted on a powered reel. The reel is always electrified allowing the user to retract or extend cable as needed during use. The reel is mounted on a slide out tray for easy access. A 2200w gas powered inverter generator is provided so that users can quickly deploy the system anywhere on campus or on the road without the need for land power.

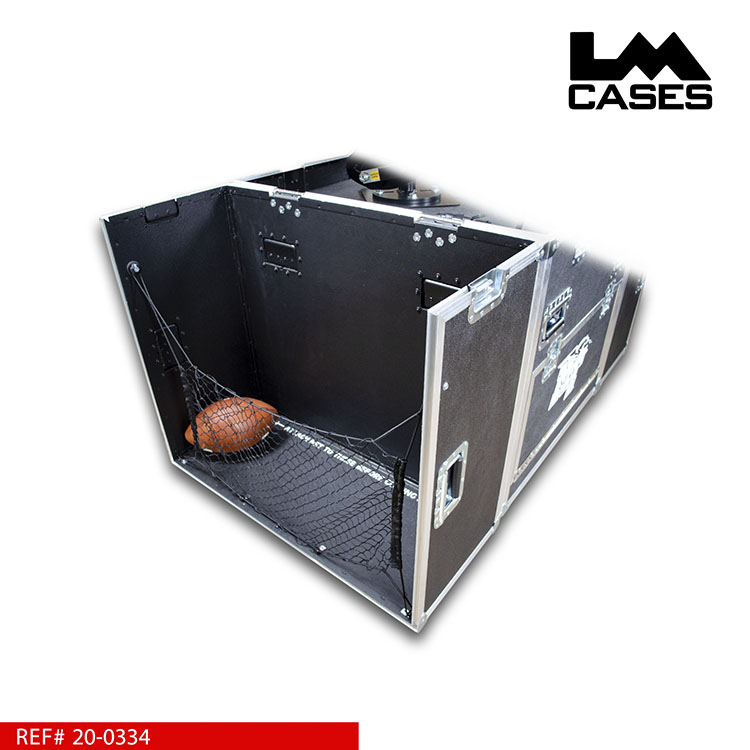

The trunk features 2 fold down top lids. The split lid design allows for fast set up and tear down and provides storage for balls during use. Each lid features elastic nets for ball storage on each side.

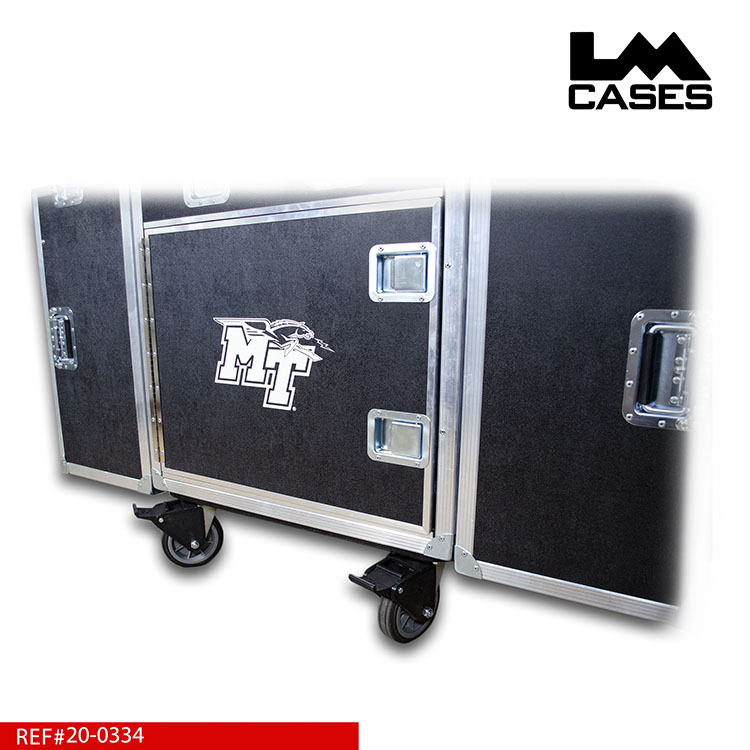

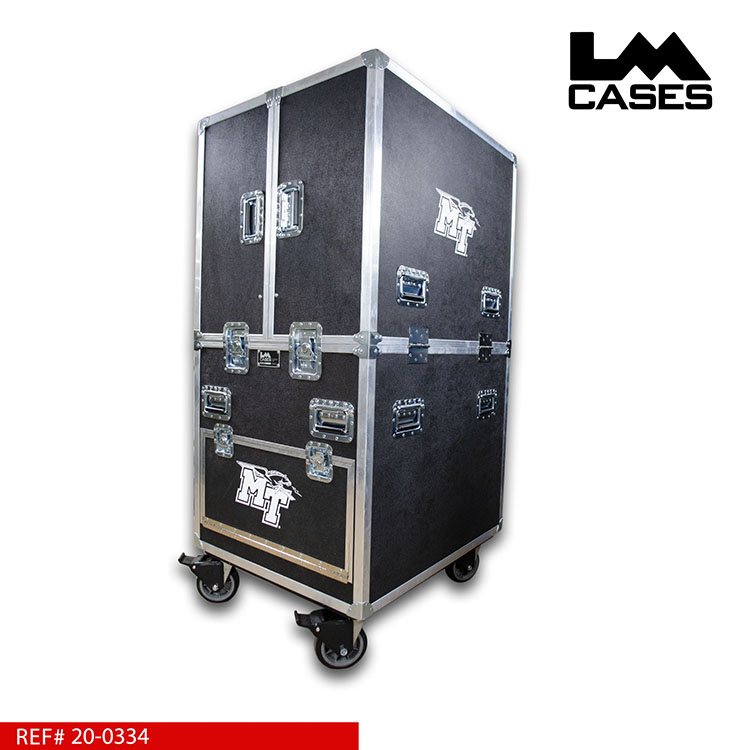

The trunk exterior is built from ½” plywood laminated with black ABS plastic and features a custom silkscreen of the Middle Tennessee logo. The trunk features deep recessed hardware and rides on 6” field casters.

Special thanks to Larry and the MT team!
