Dolphins Coaches Trunk w/USB Charging Drawer
This trunk was built for the Miami Dolphins coaching staff. The trunk features 2 hanging clothes sections, 5 cubby compartments, and 4 storage drawers. 2 of the drawers feature charging outlets featuring AC outlets in addition to USB A and C outlets for devices.

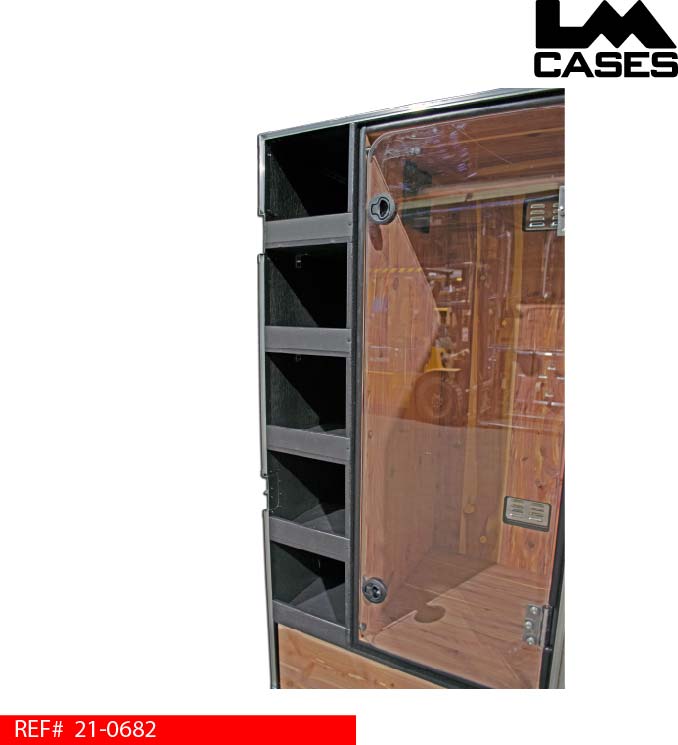

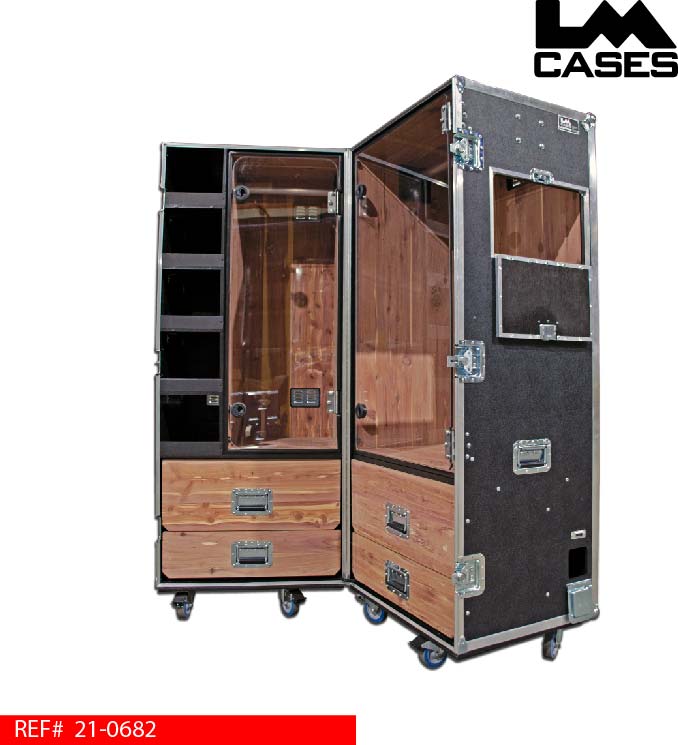

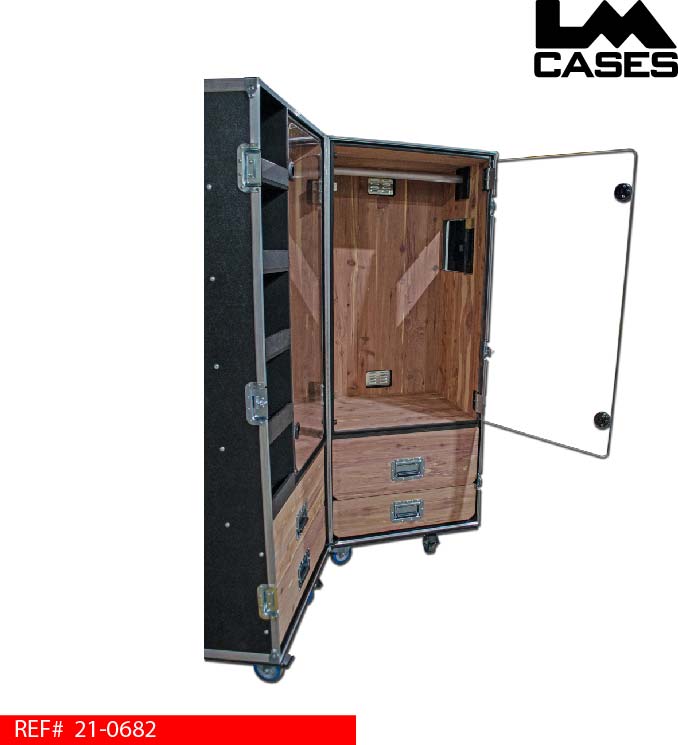

The left section of the trunk features 5 cubbies compartments for shoe storage. The left and right hanging clothes sections feature cedar lining. The sections feature a HD aluminum tube for hangars, and 3/8” clear Lexan doors to keep clothes contained during transport. The larger right hanging clothes section features a trap door. The trap door allows coaches to toss dirty clothes into the side of the trunk when they are changing.

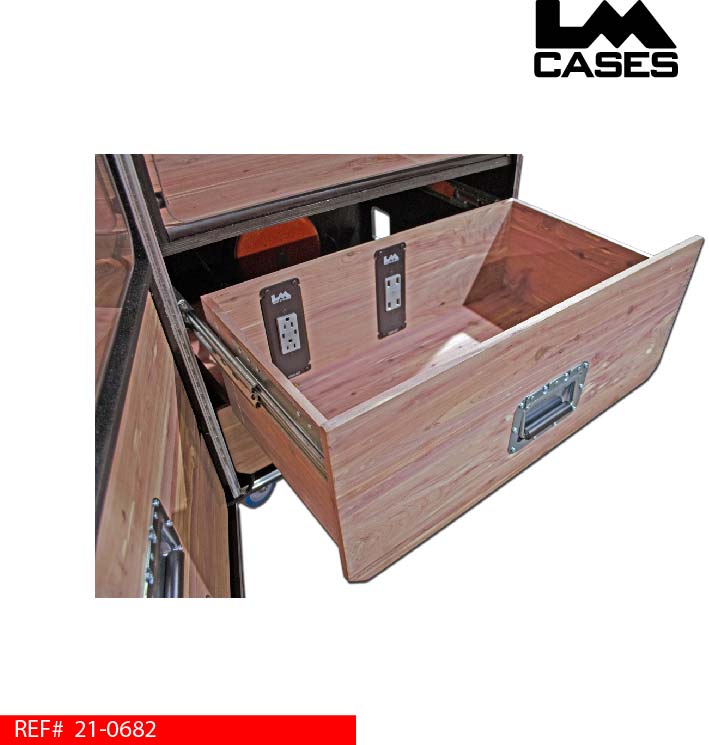

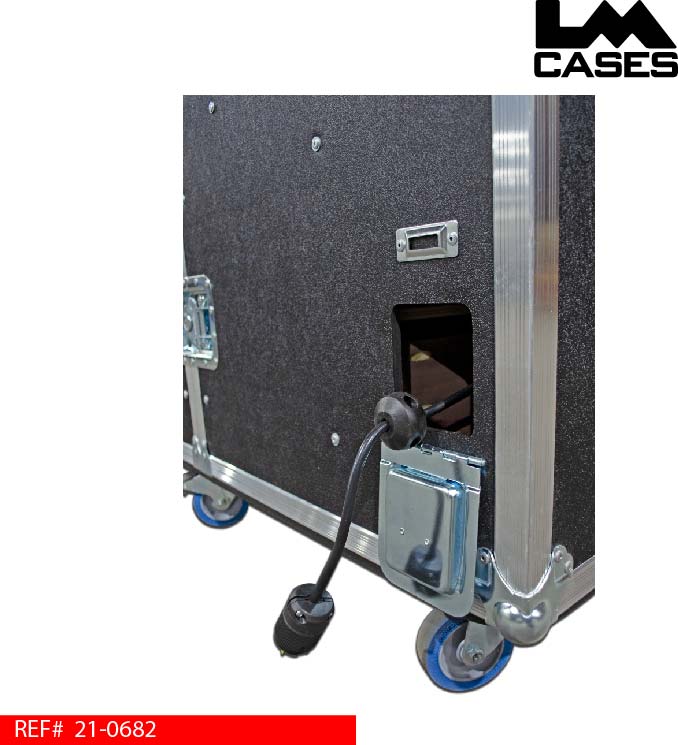

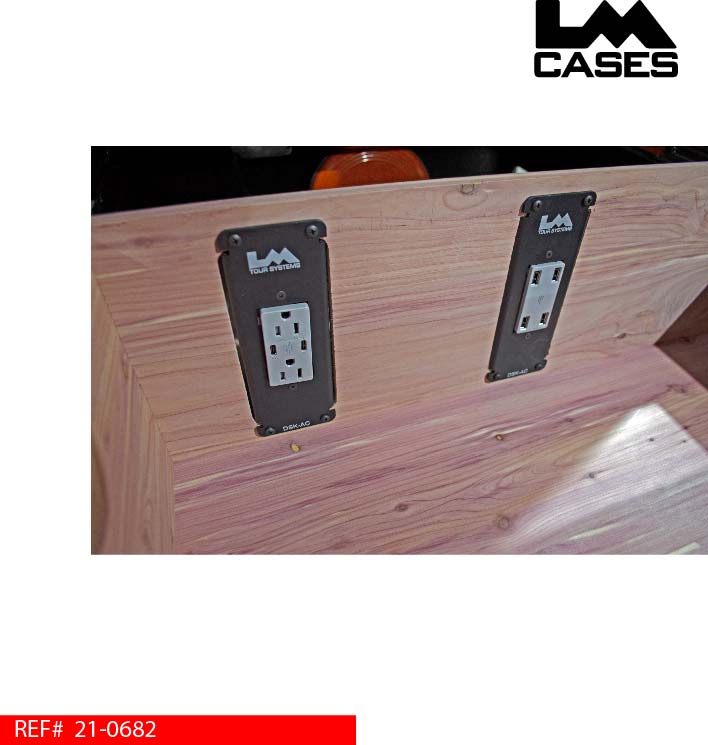

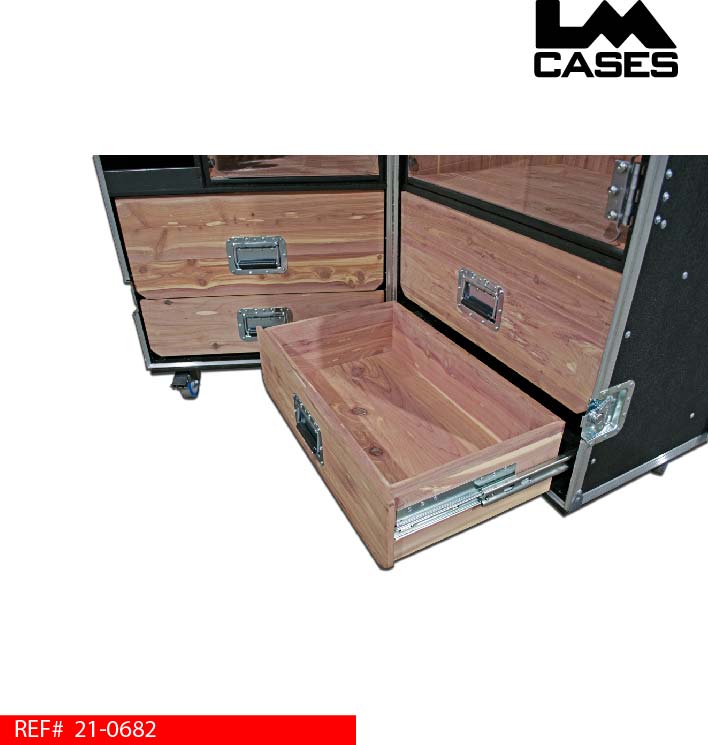

Below the hanging sections are 4 drawers. Each drawer is built from ½” solid cedar and mounted on HD Accuride glides. The top 2 drawers feature LM Tour Systems DSK-AC power modules. The top drawers are configured identically with modules that are outfitted with 4 port USB-A charging outlets, and a combination power unit providing 2 USB-C and 2 standard AC Edison outlets. The 4 DSK-AC outlet modules are wired to a retractable 30ft cable reel for input power. All installation and specification was handled by the LM Cases Custom Integration department.

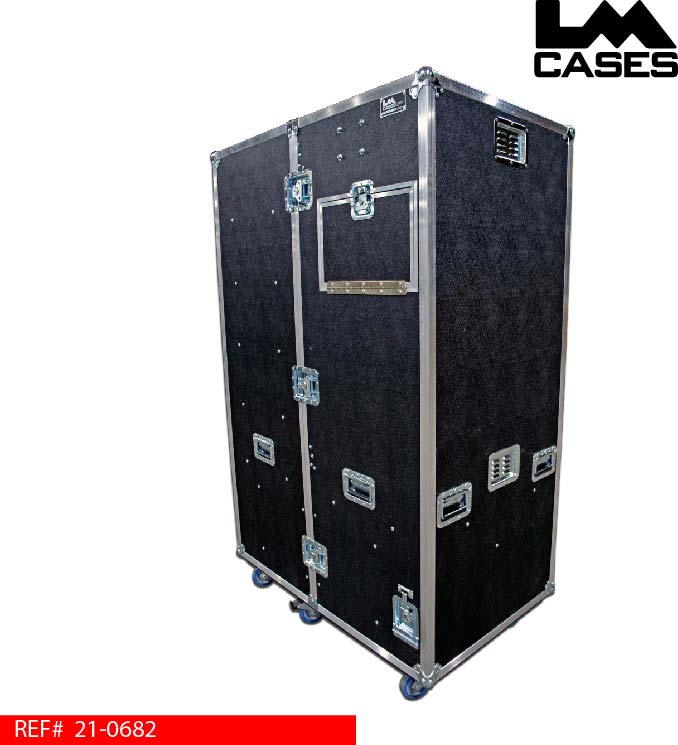

The case exterior if built from 3/8” plywood laminated with black ABS plastic. The hardware set includes a key locking latch on the trap door, and a pad-lockable hasp as the center latch. 8 HD Colson are provided, with the front 4 locking.
Special thanks to Mike and the Dolphins crew!
