Klang Fabrik Portable In Ear Monitor Work Station
This workstation is designed to hold the Klang Fabrik processor with all associated Shure Axient in ear components and a Dell touch screen monitor.

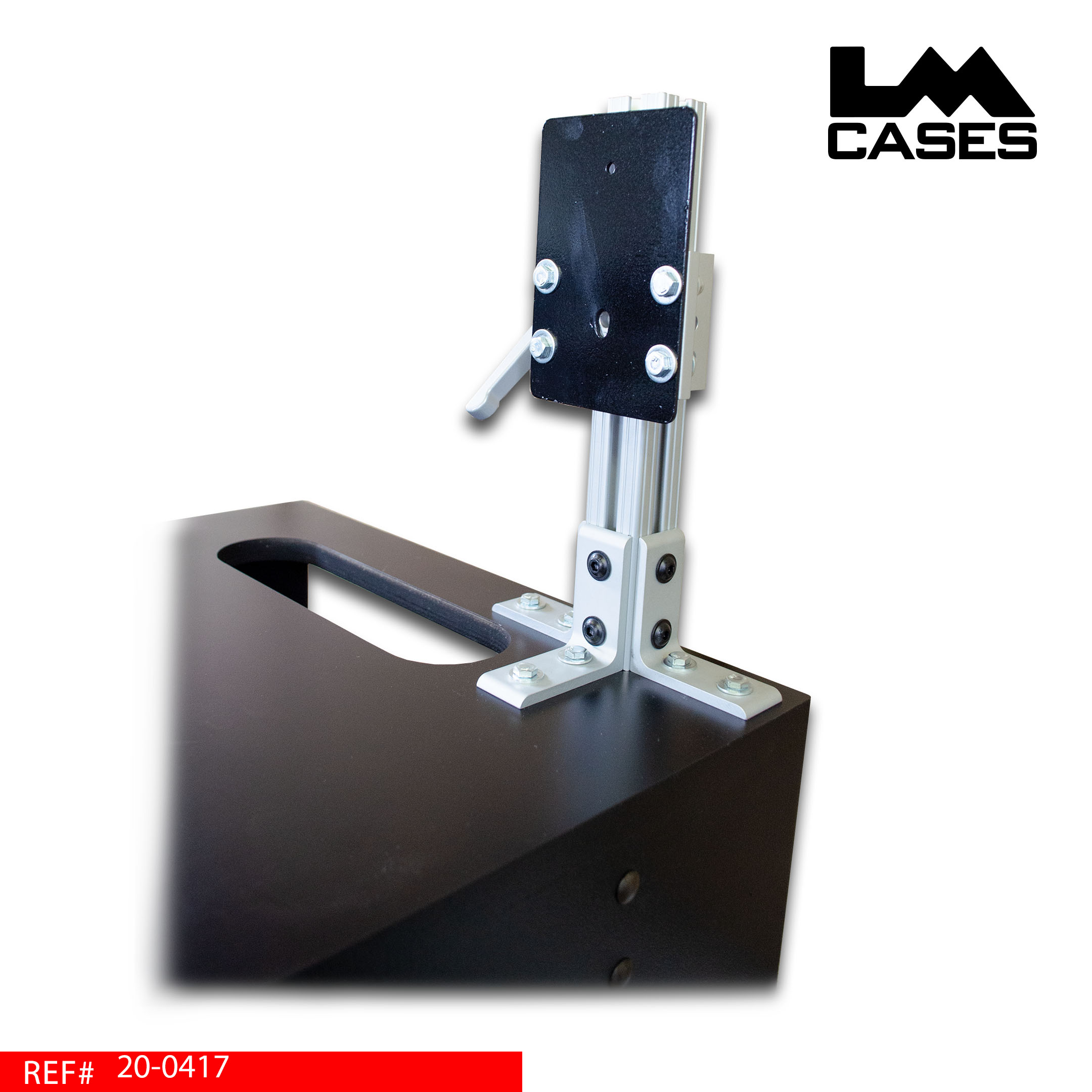

The Dell 24” touchscreen monitor is positioned on a custom articulating mount. The LM Custom Integration department used a slider mounted on an extruded aluminum rail allowing users to move the monitor up and down. A HD quick lock handle is positioned on the slider allowing users to securely lock the monitor in place. The monitor is mounted to a Chief K2W120B articulating mount allowing users to position the monitor left, right, front, and back.
The work surface below the monitor is laminated with black Formica providing a durable writing surface for plots. A 2U rack section for the Fabrik processor is positioned below the work surface. Rear rails are provided positioned 19” back.

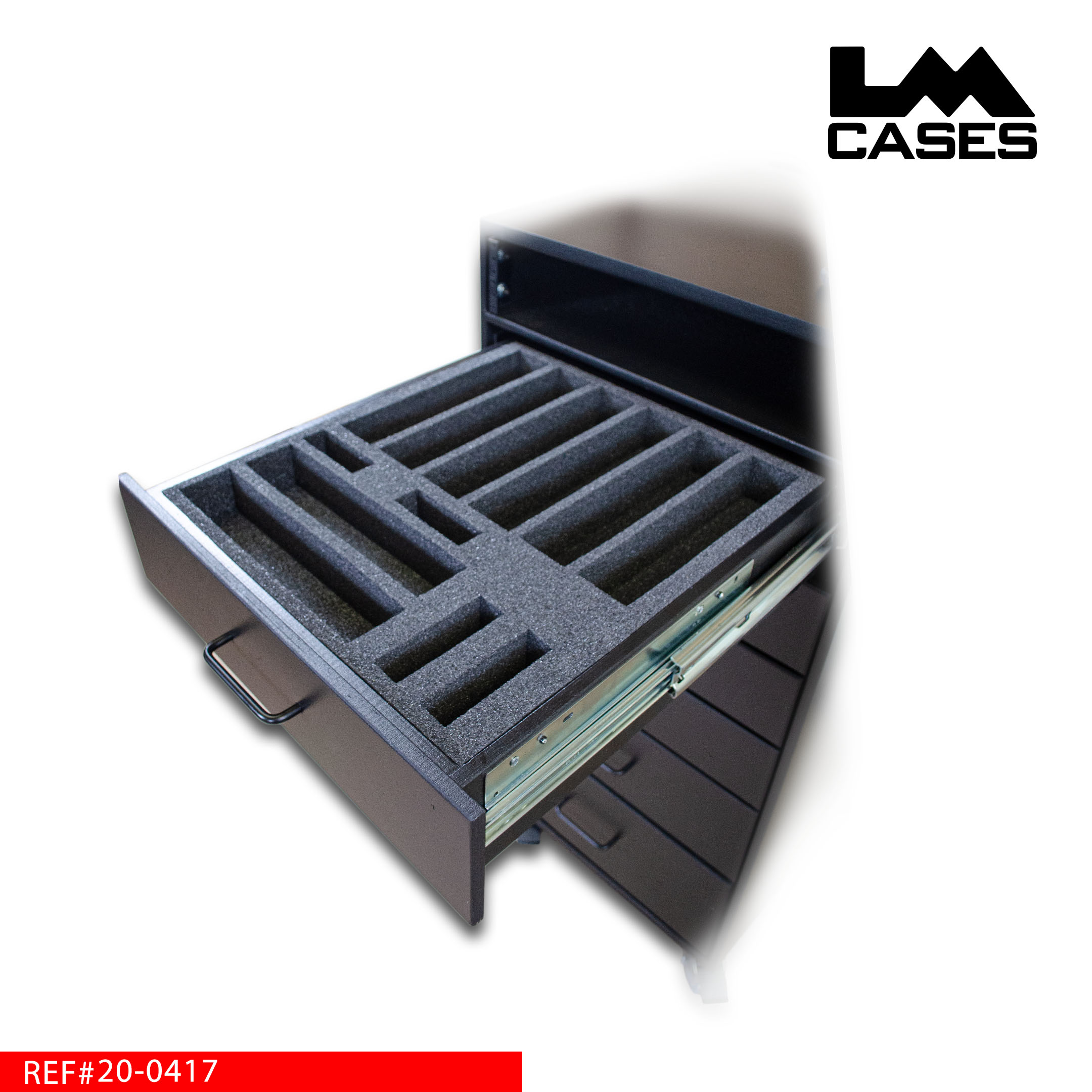

Each drawer is built from ½” Baltic Birch plywood and mounted on HD Accuride glides. The top drawer features a custom foam insert holding 7 Shure Axient AD2 hand held mics, 2 AD1 lav packs, and 2 P9RA IEM packs. The hand held compartments are spaced to accommodate any Shure capsule. The second drawer holds an additional 5 handhelds and 6 P9RA body packs. The remaining 4 drawers are open for storage. Drawers 3 & 4 feature storage heights of 3.5”, drawer 5 is 5.25” deep, and drawer 6 is 7” tall. All drawers are 16” wide x 18” deep.

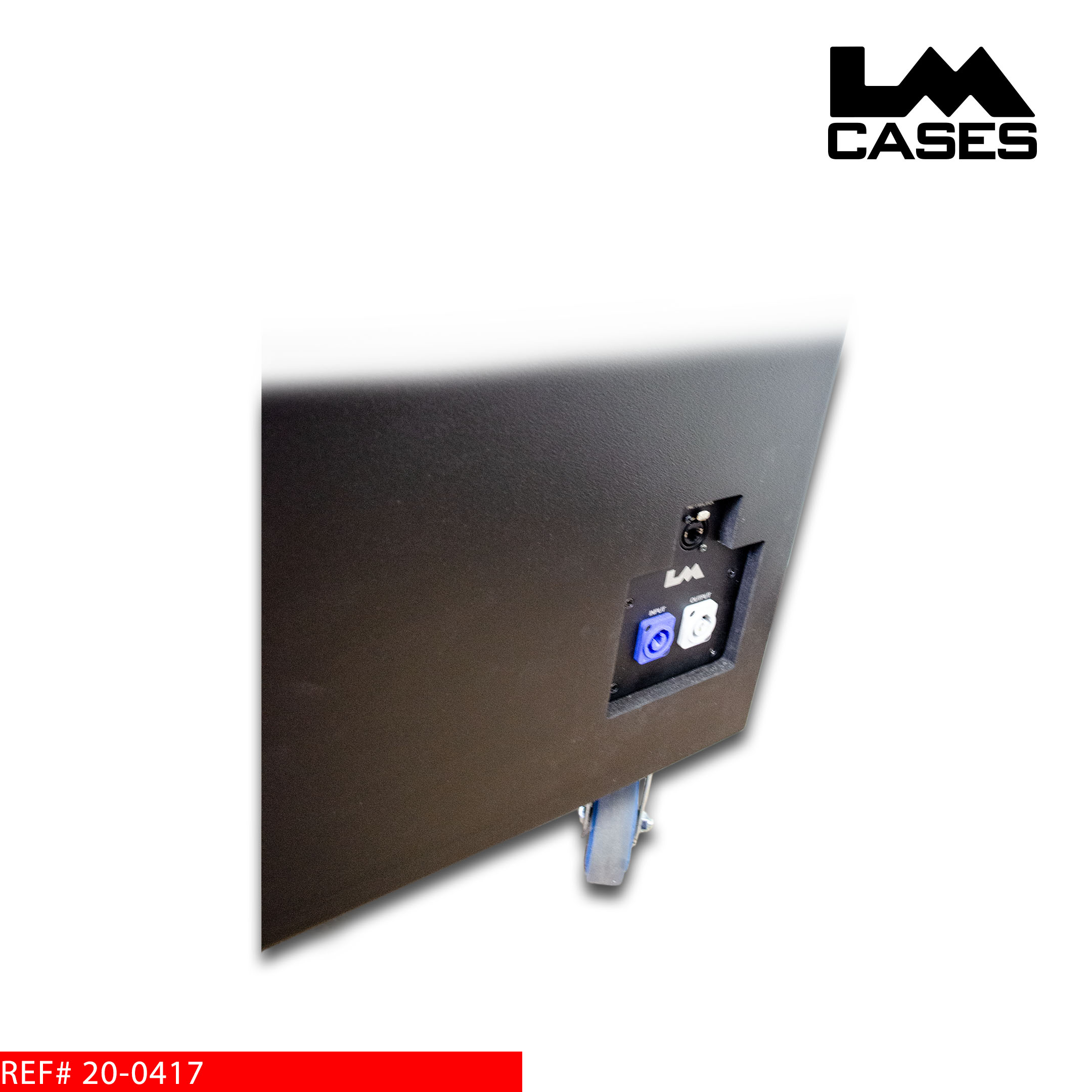

The LM CI department installed a custom power box that features front mounted Powercon In and Out jacks wired to a rear mounted Edison duplex outlet. A Neutrik NE8FDP-B jack is also provided to bring network into the workstation.

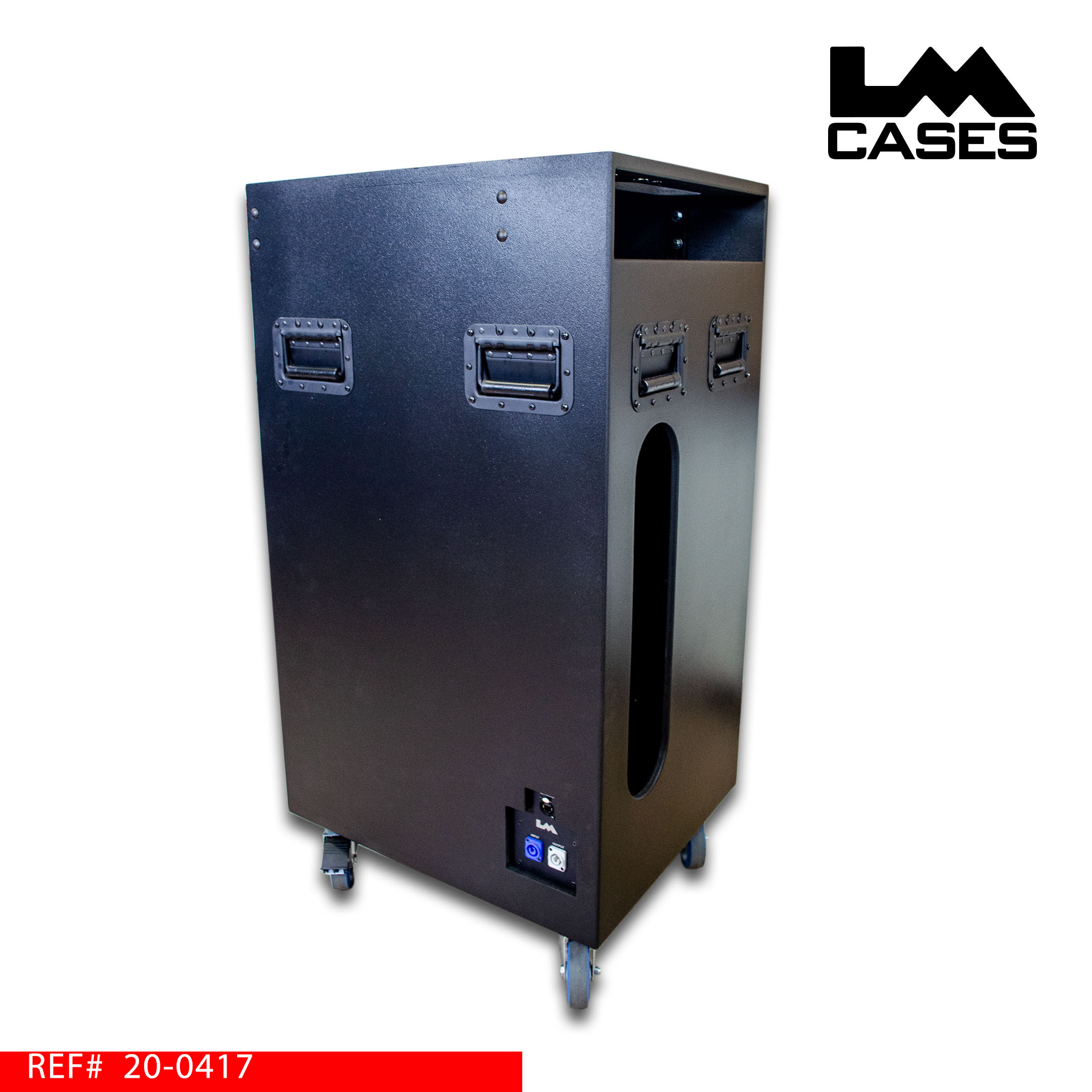

The exterior is built from ½” Baltic birch plywood and finished with black texture coating. A rear mounted access hole is provided should the user decide to require power or additional IO to be shared to the drawers. The workstation rides on 4” Colson casters.
