REFERENCE: 24-0845
Behringer Wing Compact Fly Date Waterproof Case

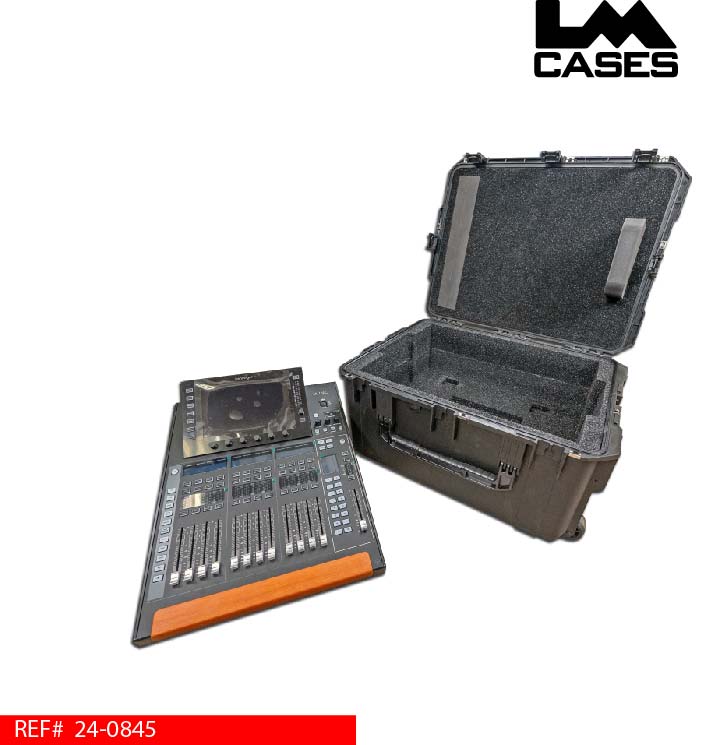

This custom case built by LM Cases is designed to hold the Behringer Wing Compact mixing console. This case is intended for users who need to ship the case via commercial airlines.

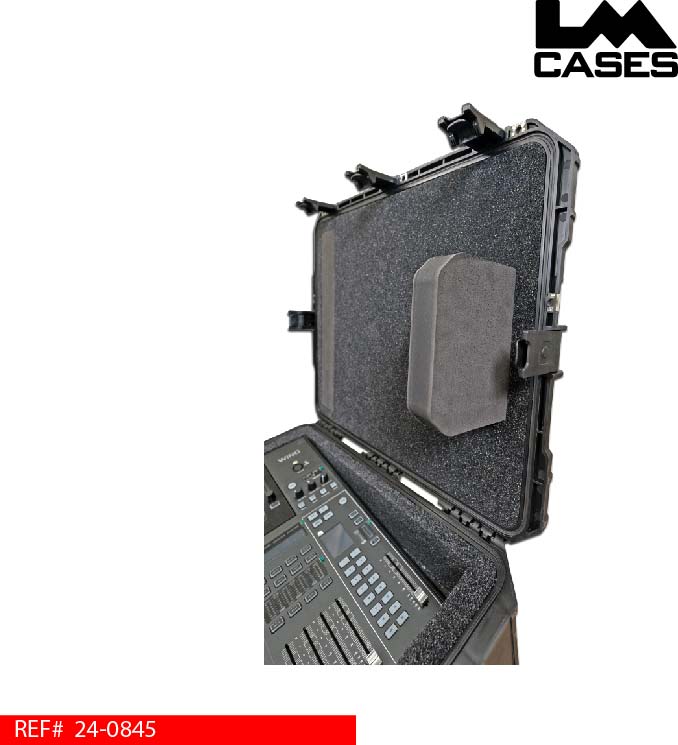

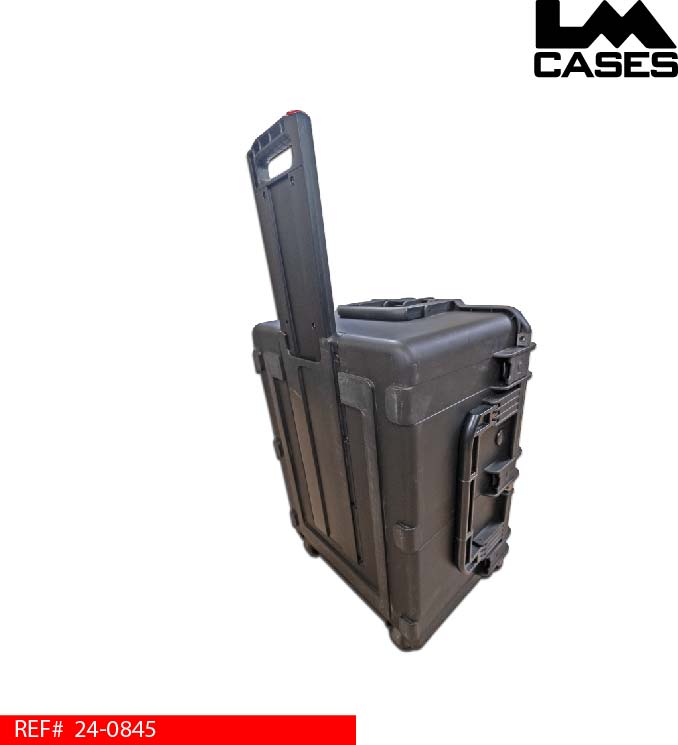

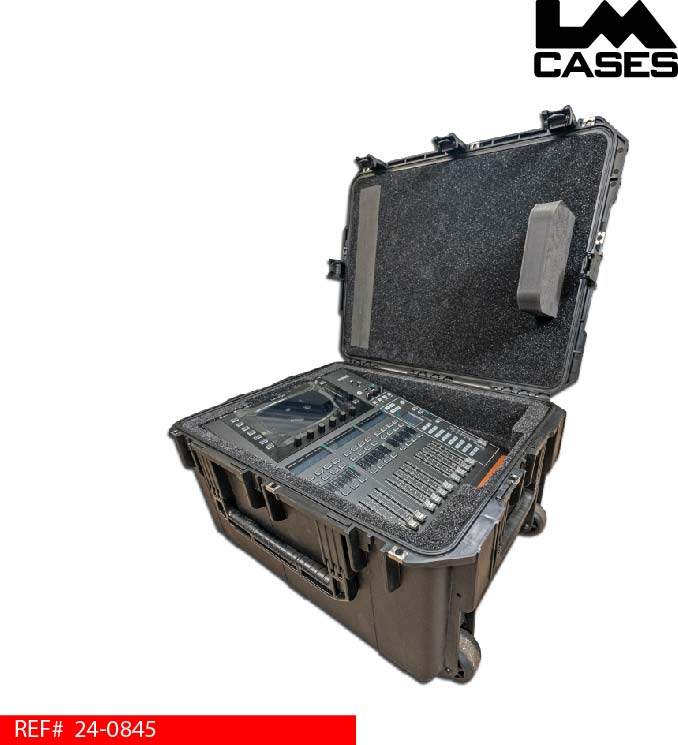

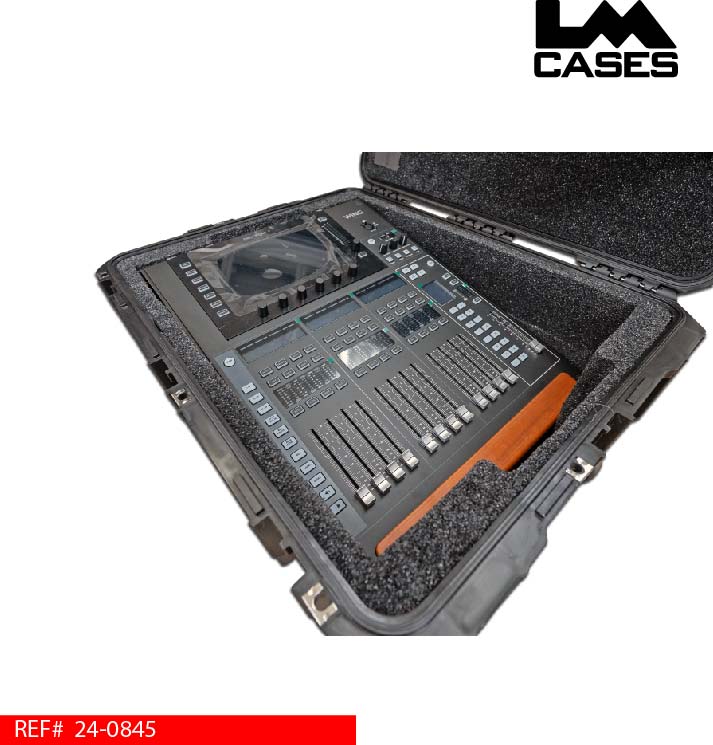

The console is held in custom cut, PE foam insert. The insert features inset nonabrasive Crosslink foam that touches the top of the monitor. It also features a Crosslink block that extends from the lid to trap the console at its wrist rest. This protruding block is necessary due to the unique shape of the console. The bottom of the insert features 4 cut outs to accommodate the console’s feet. A 10” wide x 8” deep x 3” tall accessory compartment is located under the console to hold its power cable, light and other items. The foam insert is mounted in a waterproof SKB iSeries case.
- REFERENCE: 24-0845
- CATEGORY: Audio/Visual
