Daktronics ECCB LED Display Lift Case
This case was designed to hold a Daktronics ECCB LED display. The display is mounted on a custom built linear actuator lift system built by LM Cases. The system is designed to provide a simple solution to transport the display to and from trade shows. In addition to being a transport case, it is also part of the customer's trade show booth. The case is rolled to the back of a 10' x 10' booth and is skirted with black fabric with the customer's logo. The case is designed to hold all items used in the customer's booth in addition to the display, since the case is part of the booth there isn't a need for the on site show services provider to store any empty portion of the case; this allows for fast set up and tear down of the booth. Operation is as simple as removing the lids, plugging the case in and pressing a button!

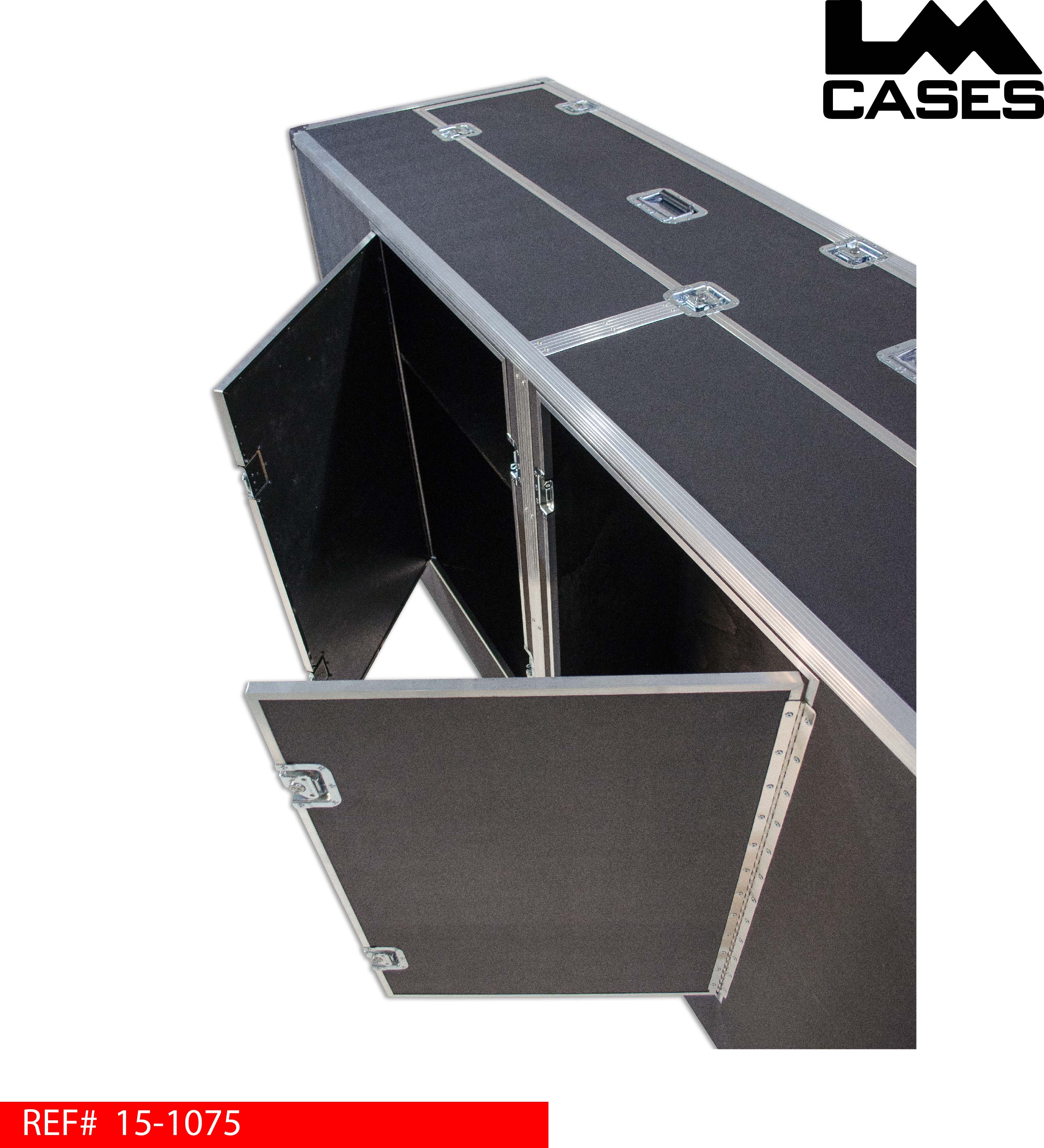

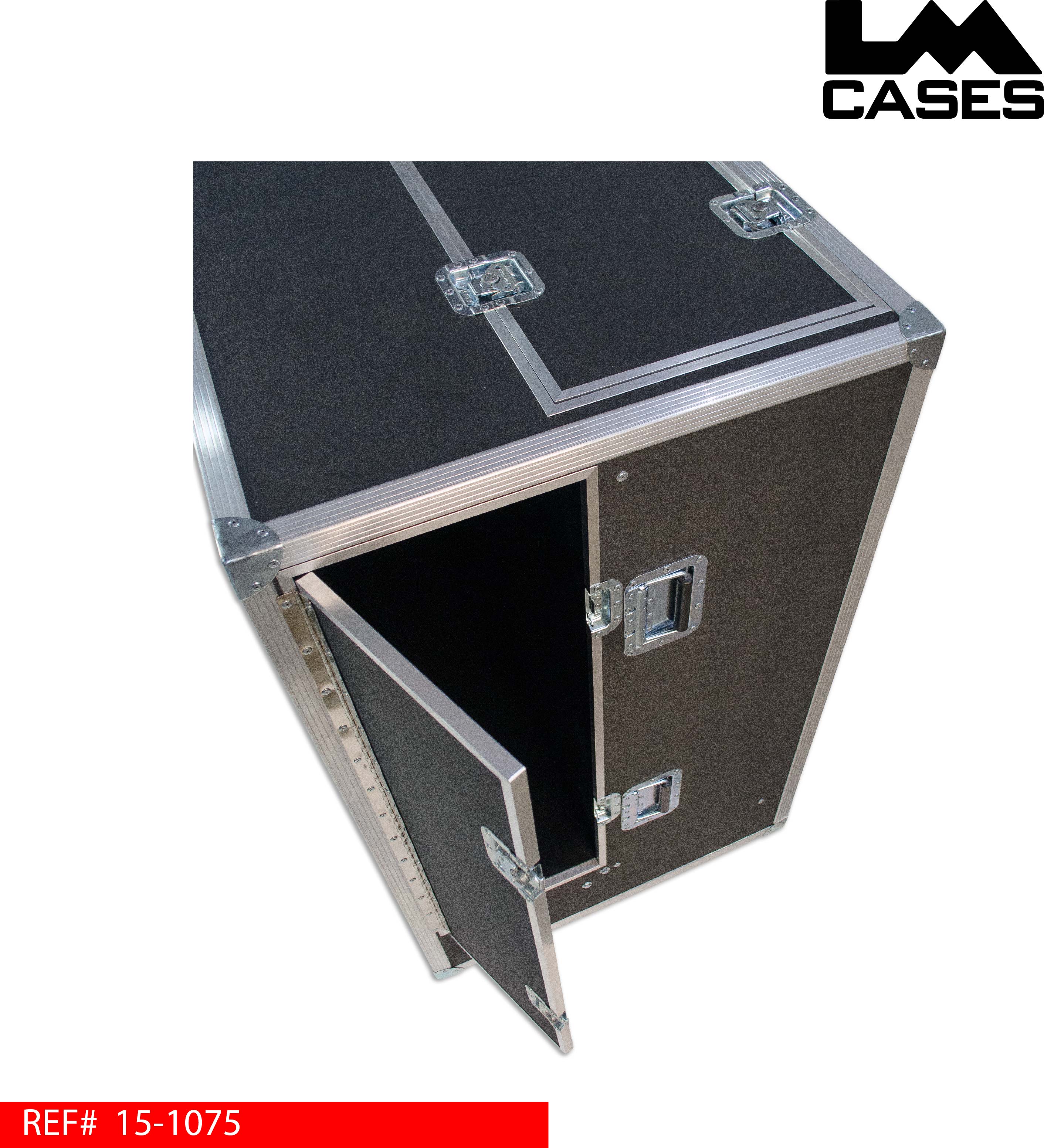

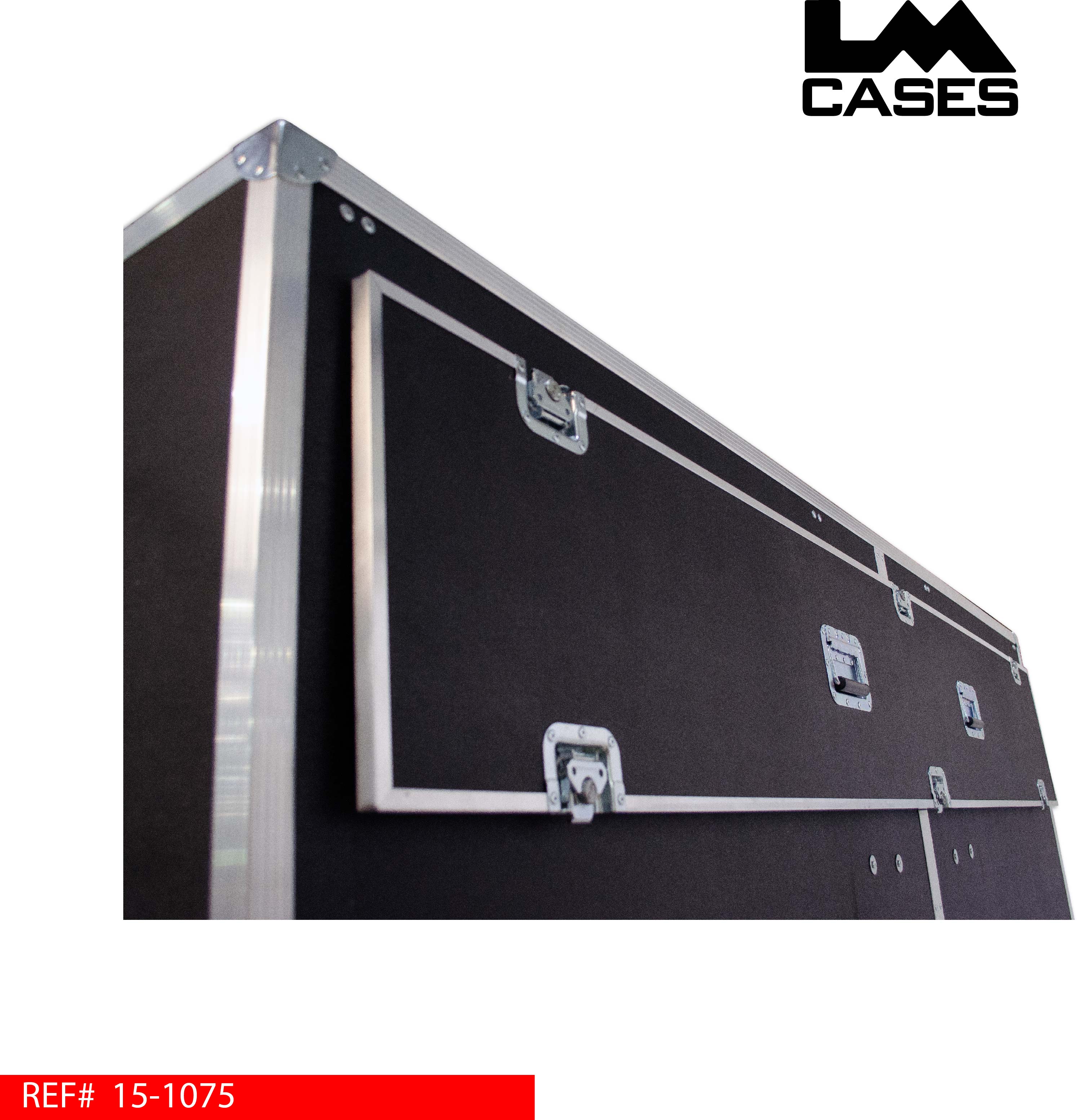

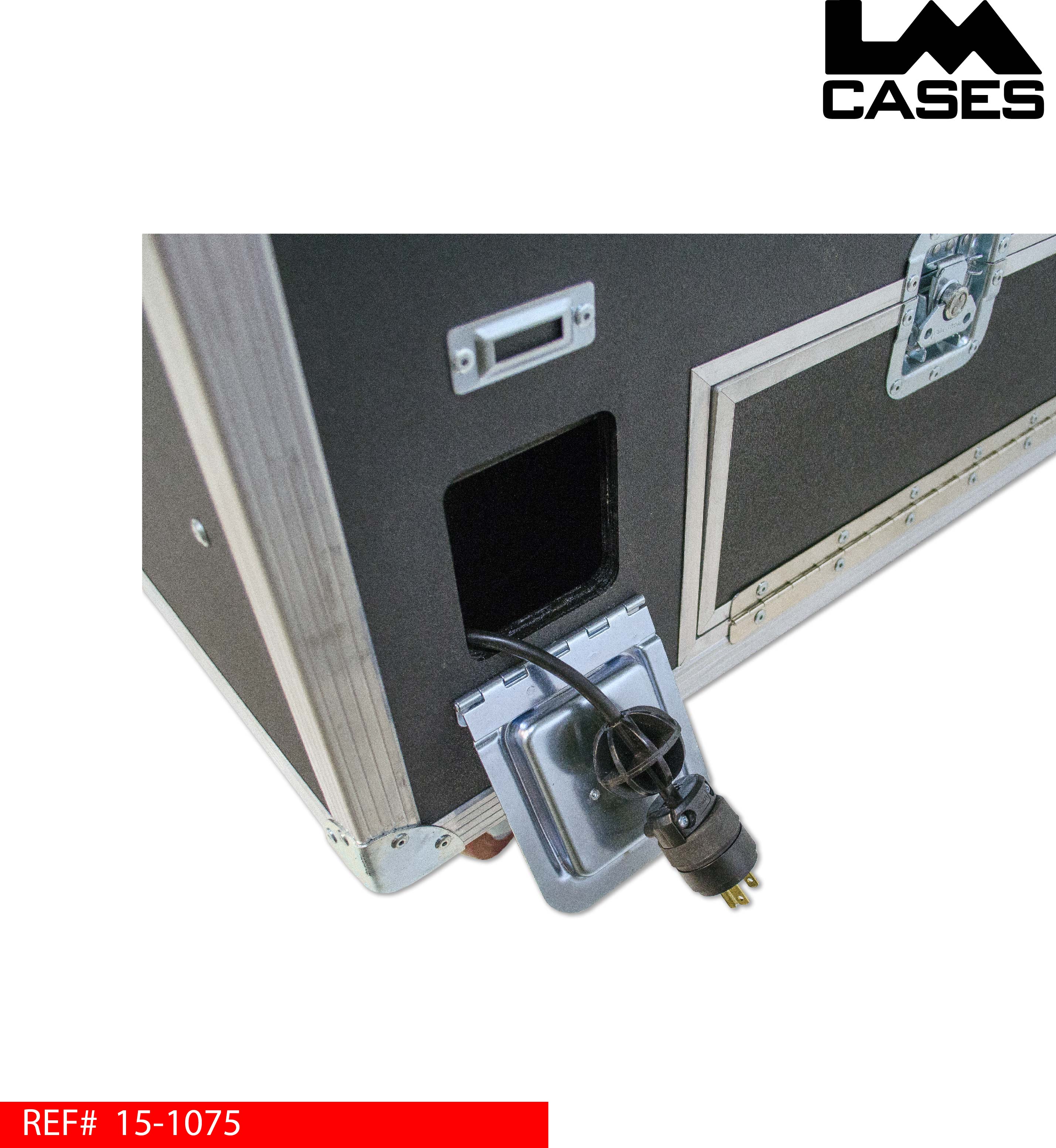

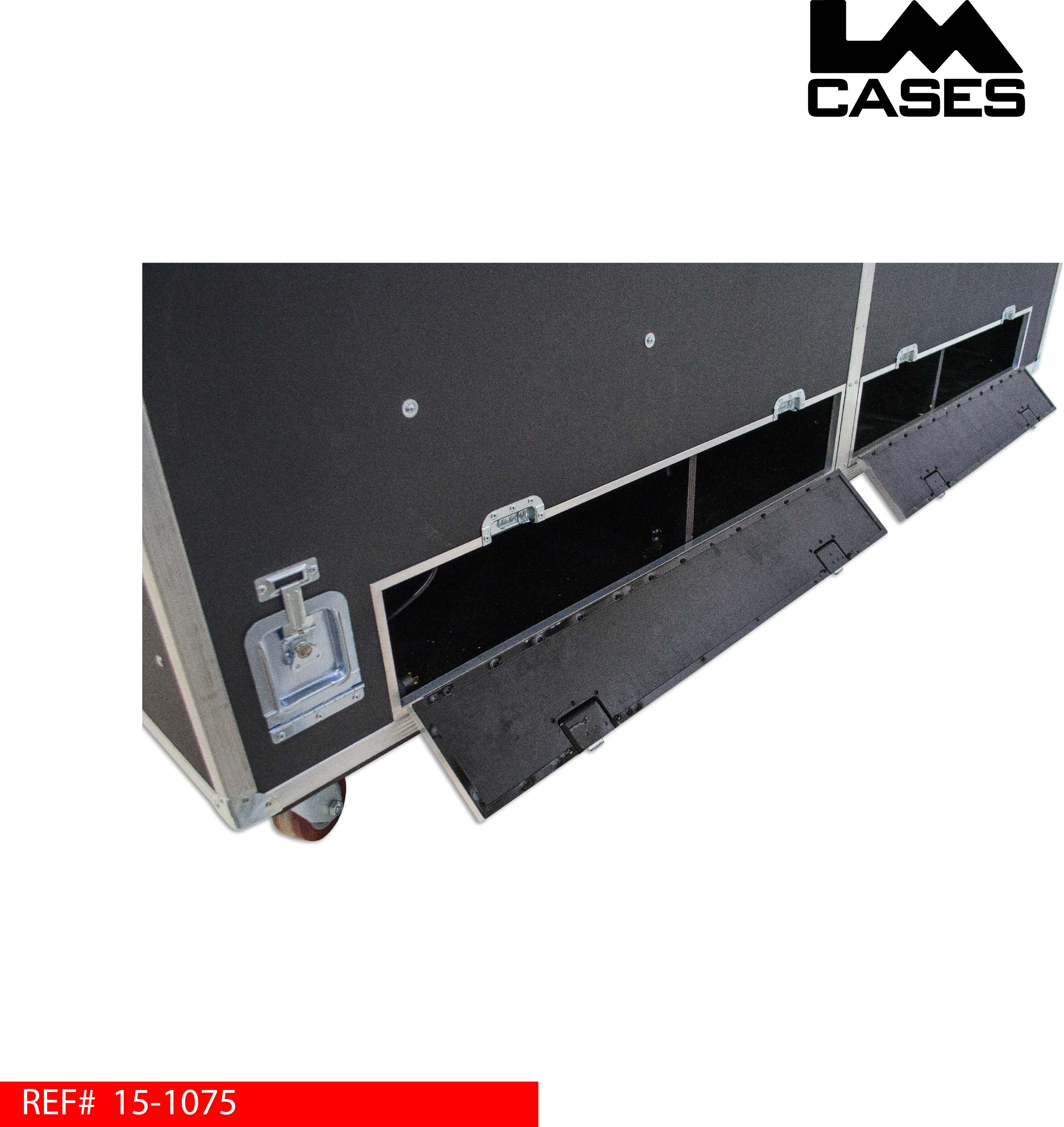

The display is raised with a single 400lb linear actuator that guides the assembly along 2 tracks to keep it firmly aligned and plumb during raising and lowering. The tracks allow the display to be very rigid when it is extended so it will not be affected by wind or people touching it. The case interior features 3/4" shelves and dividers for all components of the customers booth. The top lid that covers the display magnetically stores on the back of the case which keeps it off the floor and concealed during the show. Power is handled by a retractable 30' cable reel which eliminates the need for an extension cord, simply pull the cord from the case and plug it in. All elements of the actuator feature custom brackets with quick release pins to remove the actuator quickly in case of damage or malfunction on the road.

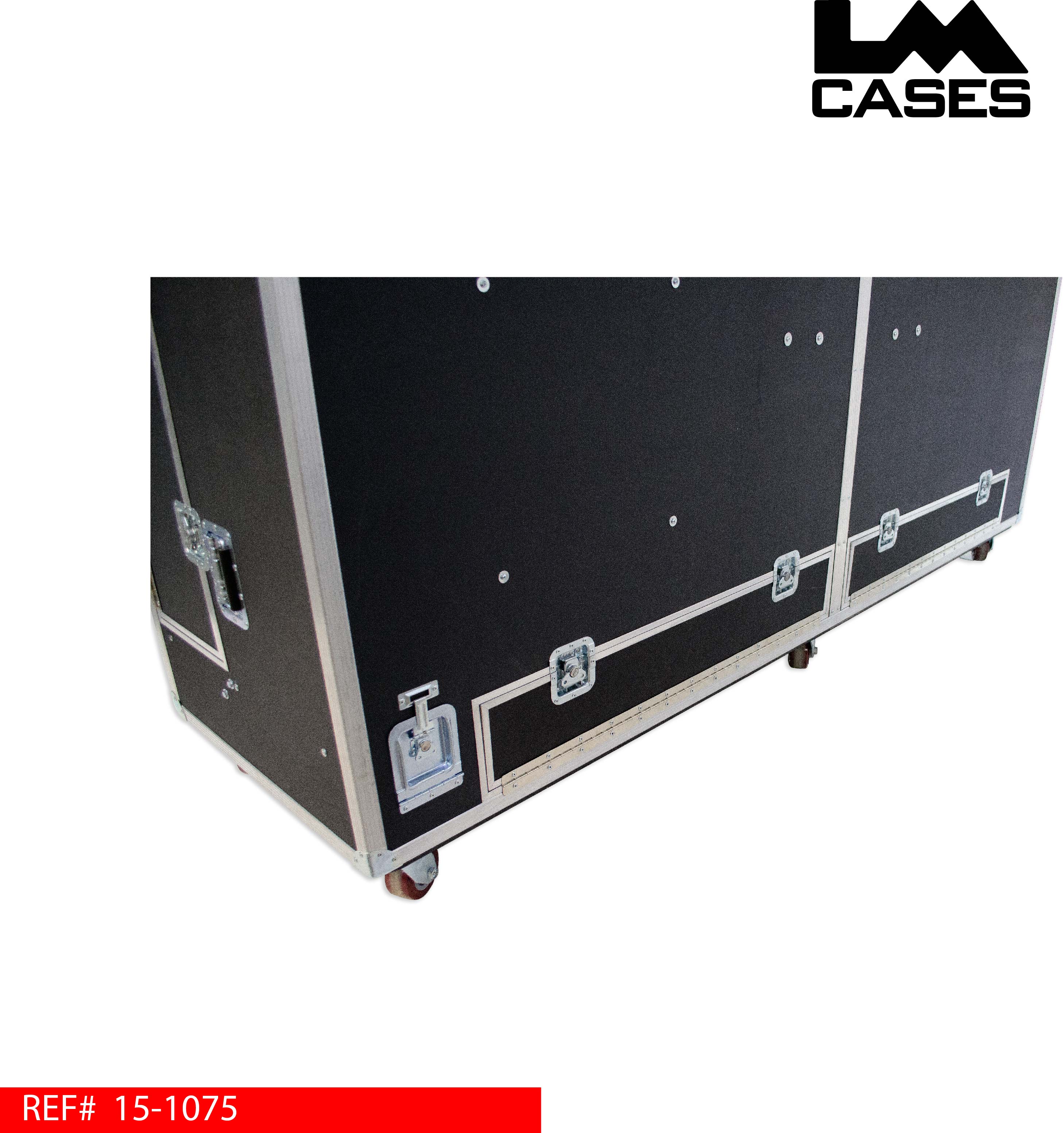

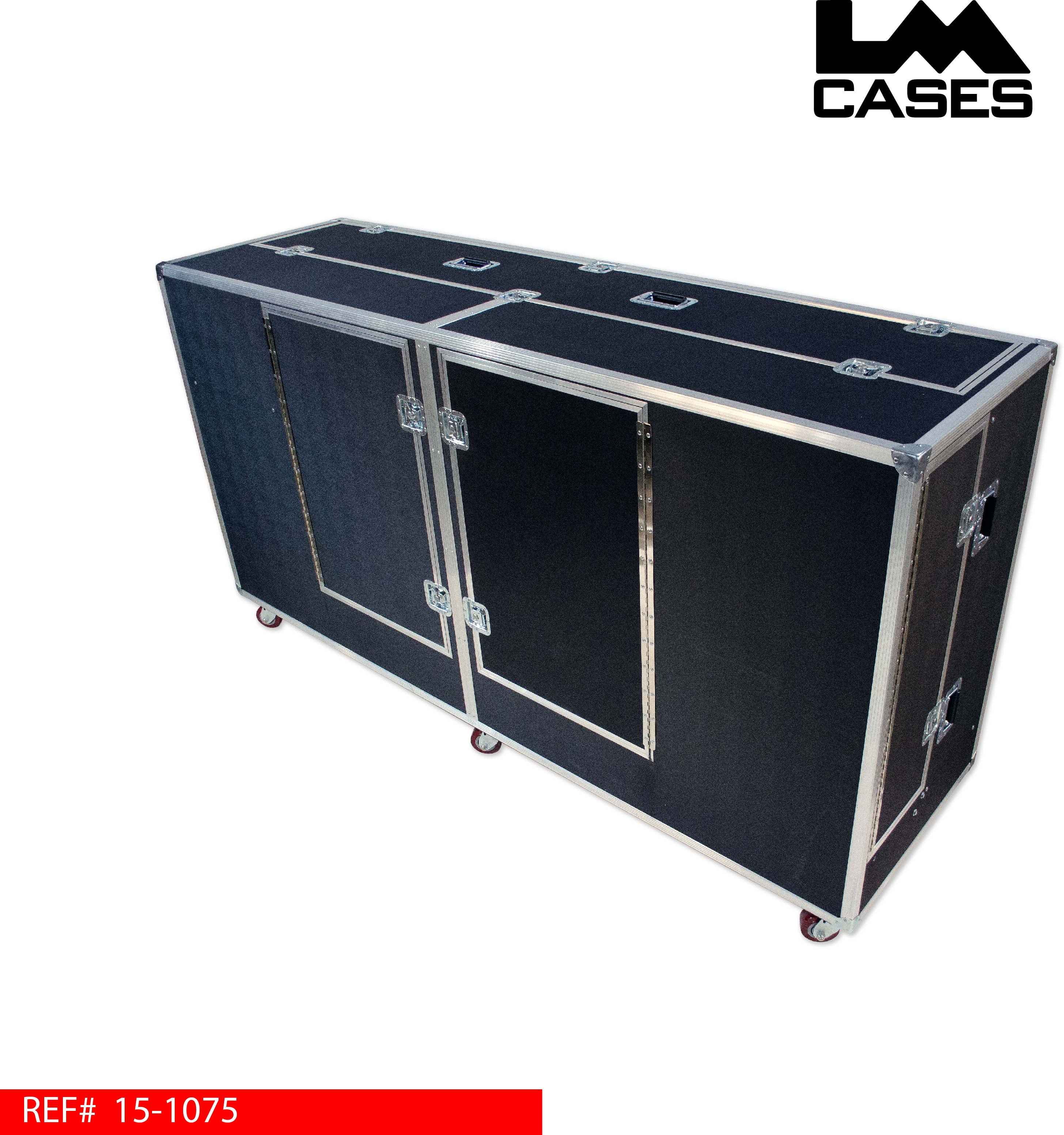

The exterior case is built from 1/2" plywood laminated with black ABS plastic. The case features 4" x 2" Colson HD casters and deep recessed hardware.
