Production Glue Modular Interlocking Drawer Units

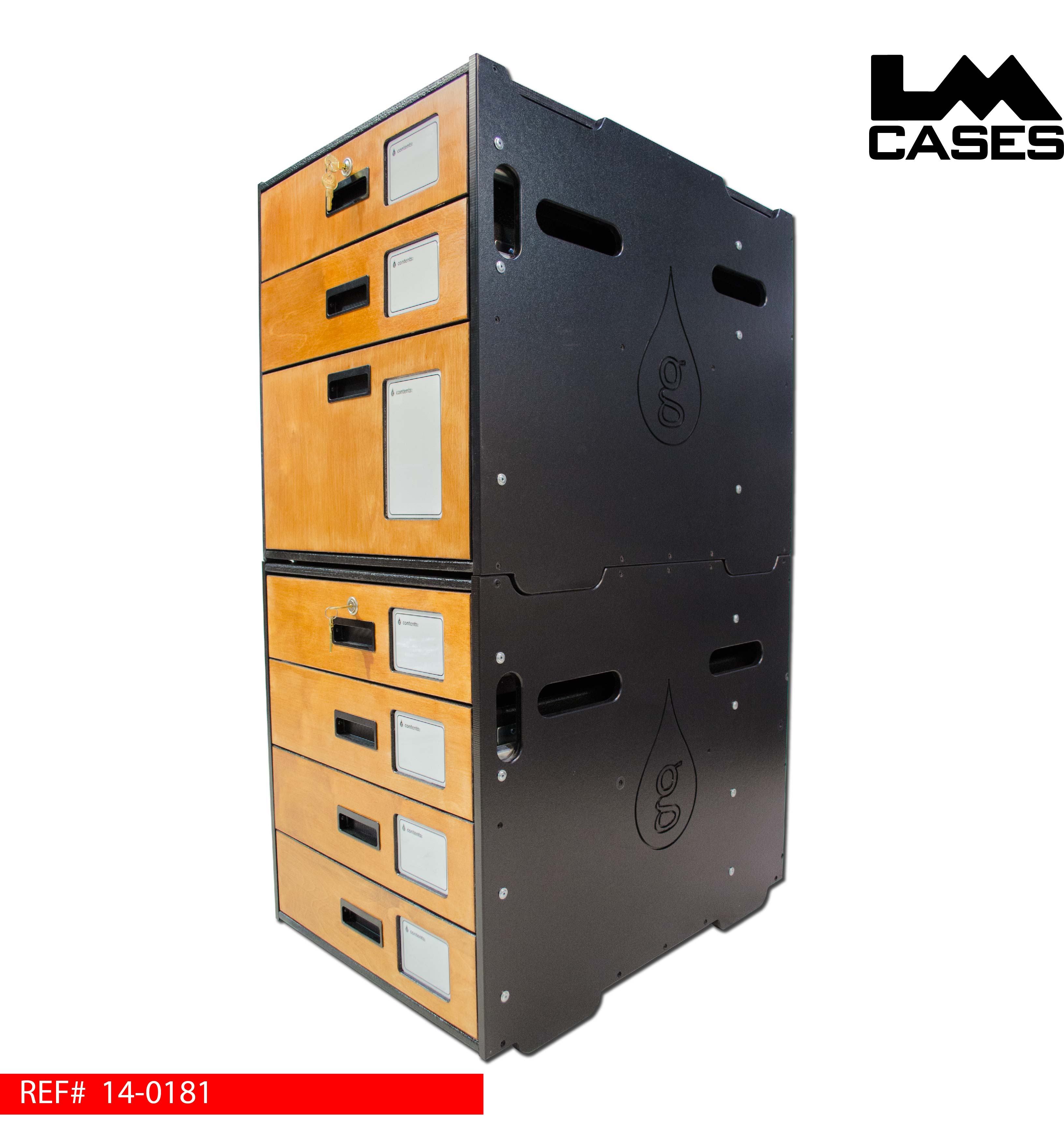

These drawer units were designed for Production Glue to be used as modular inserts for mobile production workboxes. The drawer units are designed to stack with each other for easy storage when outside of their exterior cases.

Each unit is built using 1/2" marine grade plastic sides and a 1/2" Baltic Birch top & bottom. The drawers are built out of 1/2" Baltic Birch and are black texture coated, each drawer is mounted to the outer frame via HD Accuride drawer glides. The drawer faces are built out of 1/2" Baltic Birch treated with cherry colored stain and a coat of clear laquer and feature a recessed space for  dry erase labels supplied by the LM Cases Custom Integration Department.  Marine grade plastic was used for the side pieces for maximum durability when stacking: plywood would splinter and degrade over time. Each unit in the system (3 and 4 drawer models) is built to the same W x D x H specification and stacks together via a foot and notch integrated into the top and bottom of each side panel.

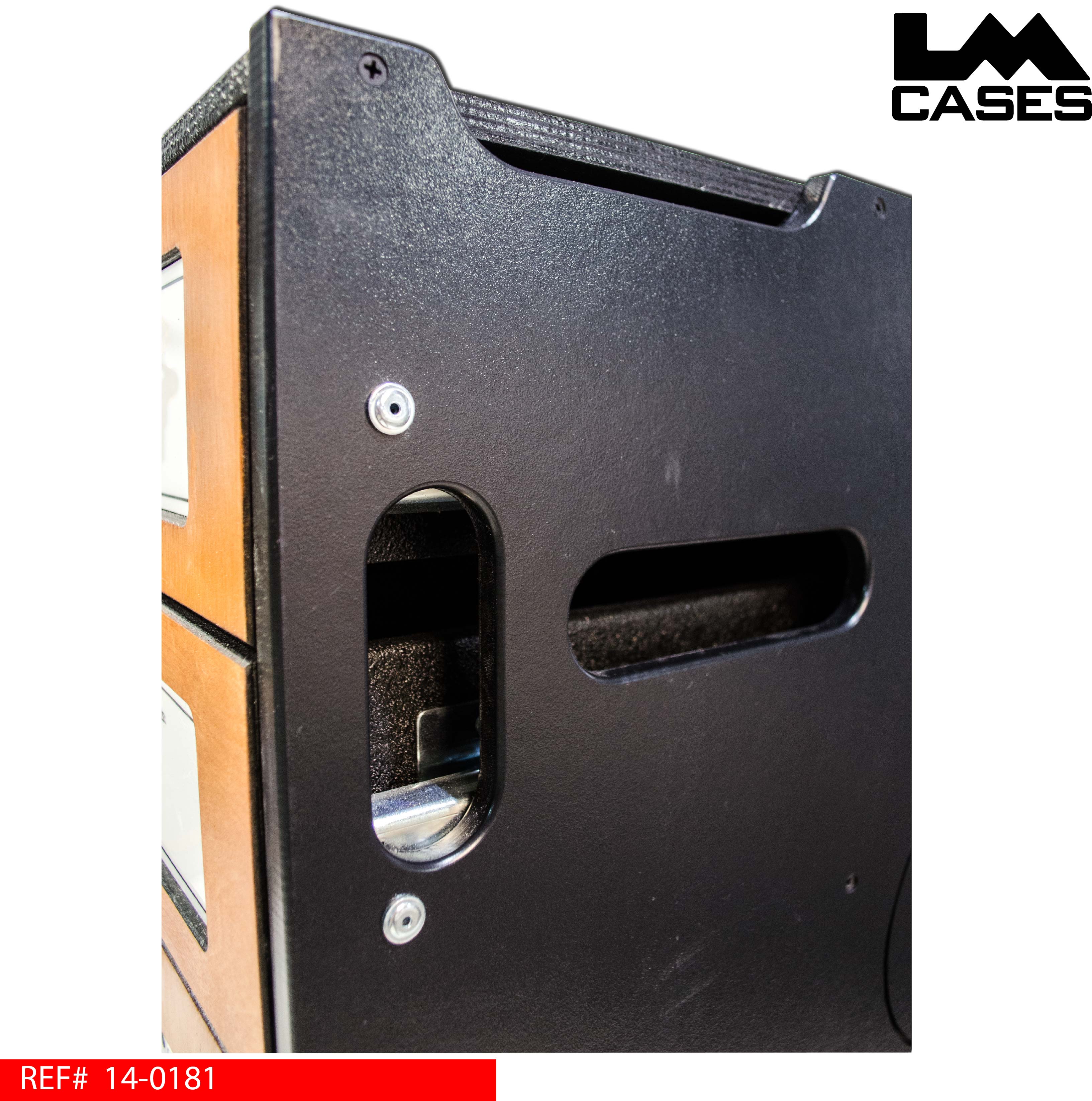

The outer frame features 4 routed in handles per side: 2 for lifting the unit & 2 for removing the units from their outer cases. The sides of each unit feature a routed in logo of Production Glue's logo.

Special thanks to the Production Glue team!
