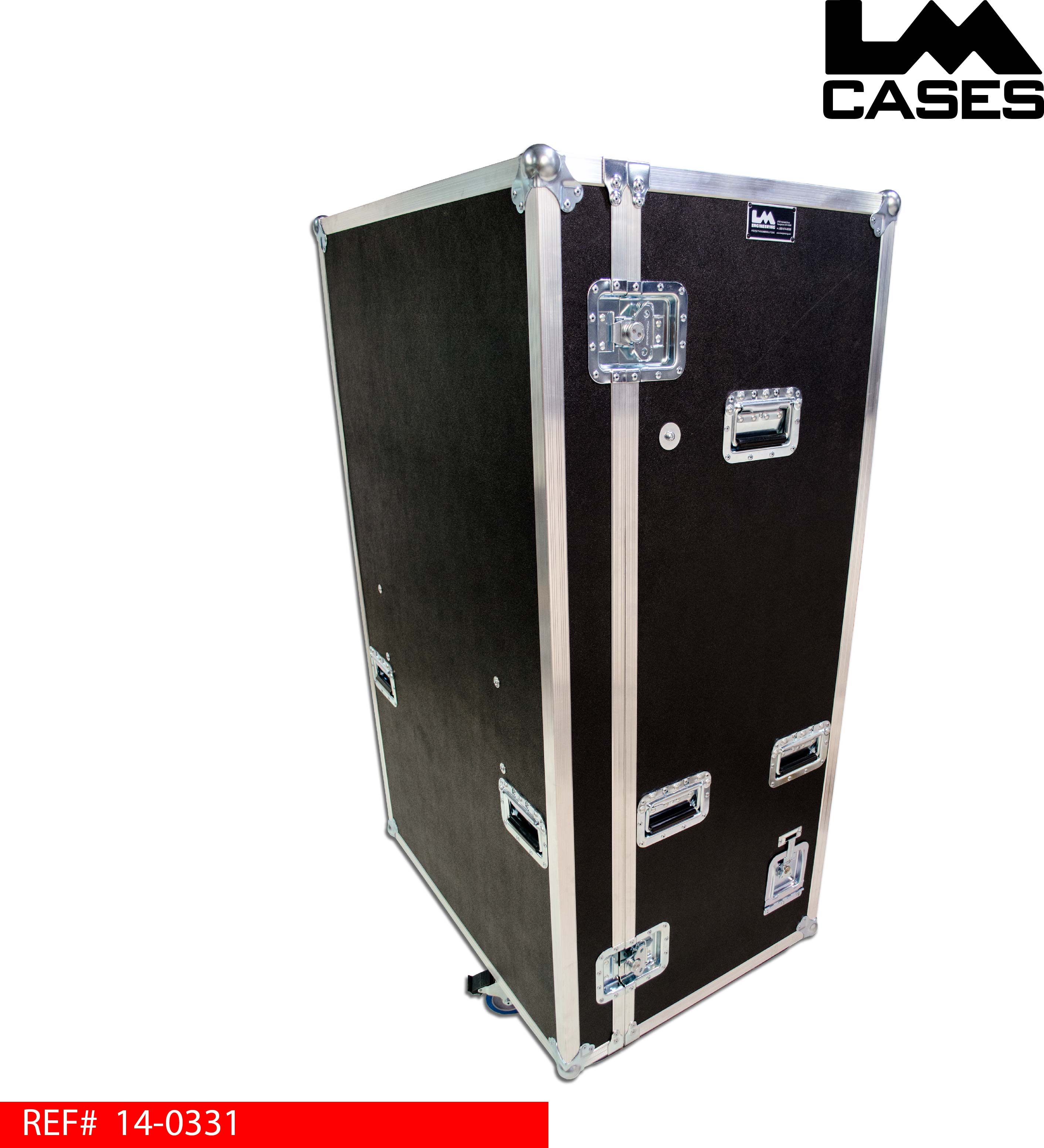

Philadelphia Eagles Omegawave Heart Rate Monitor Charging Trunk - 180 Capacity

This case was built for the Philadelphia Eagles to store and charge 180 Omegawave heart rate monitors. The design is based on individual shelves that hold 20 charging bases each, players can remove the monitors and snap them onto the charging unit quickly and easily.

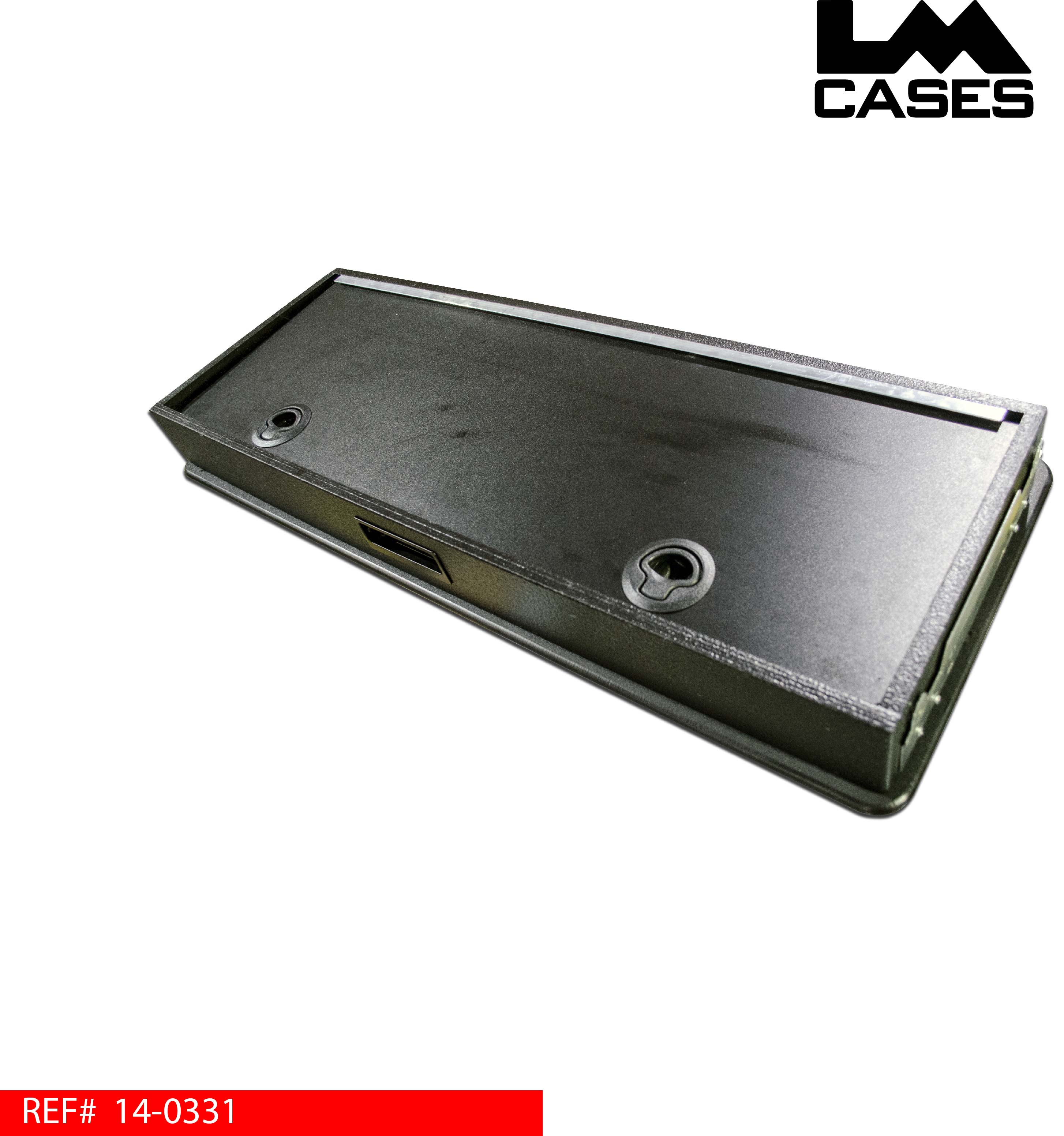

The shelves are hollow and contain all internal wiring within the shelf, creating a clean and professional looking presentation. The physical shelf the charging units are mounted on is made out of marine grade plastic which allows it to be easily cleaned and disinfected without the worry of rotting or warping wood. Each drawer is connected to a main power supply via blue locking Powercon connector. In case of service, each drawer can be removed from its glides simply. Also included is a retractable 30ft power cable, which eliminates the need to carry an additional extension power cord to supply AC to the case. All wiring and installation was performed by the LM Cases Custom Integration Department.

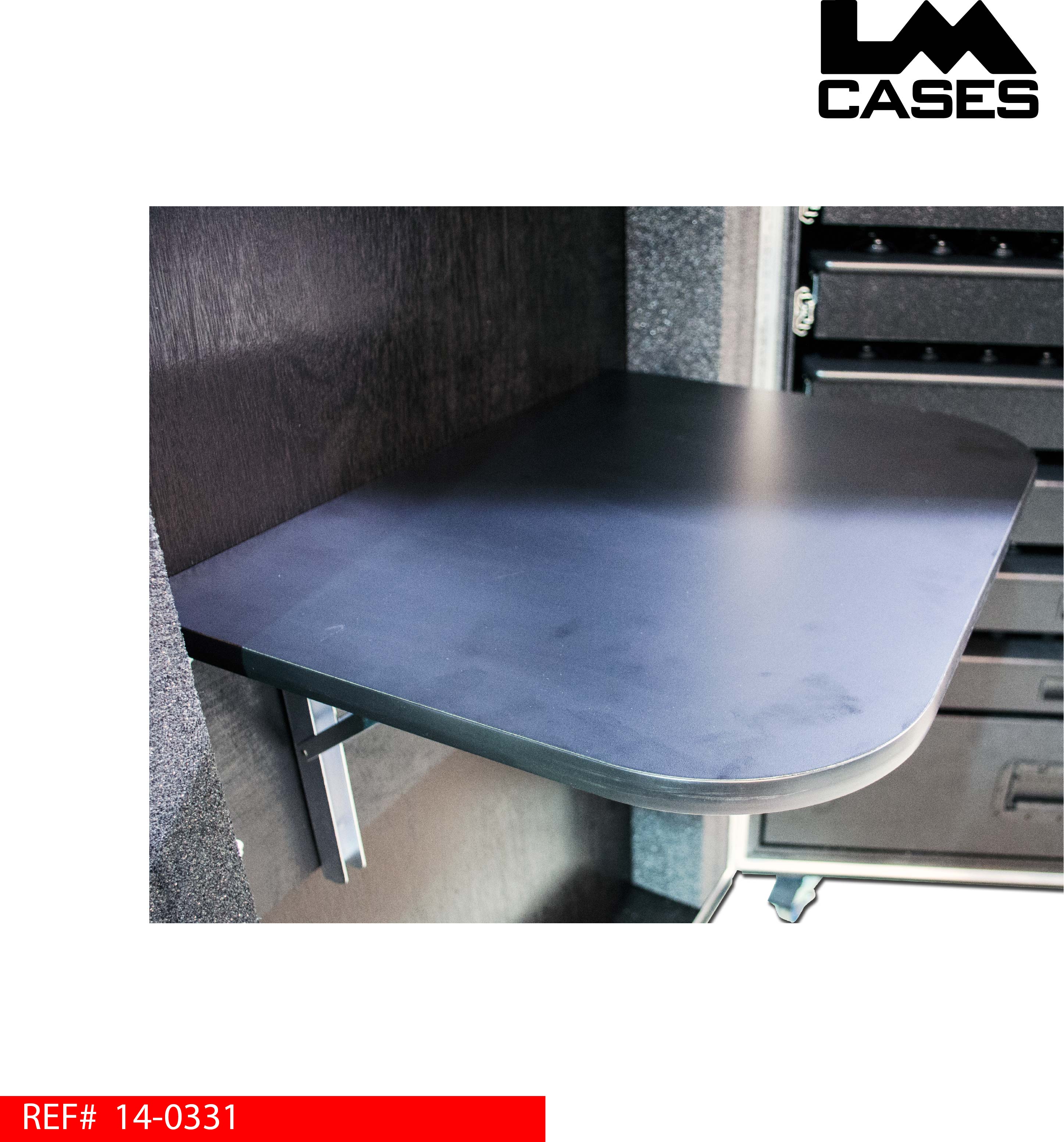

The case also features a pop up table mounted in the lid for logging in data when the units are checked in and out, the case interior also features a storage drawer for misc items.

The case exterior is built out of 3/8" plywood laminated with black ABS plastic and featured 4" Colson casters.

Special thanks to the Philadelphia Eagles!
