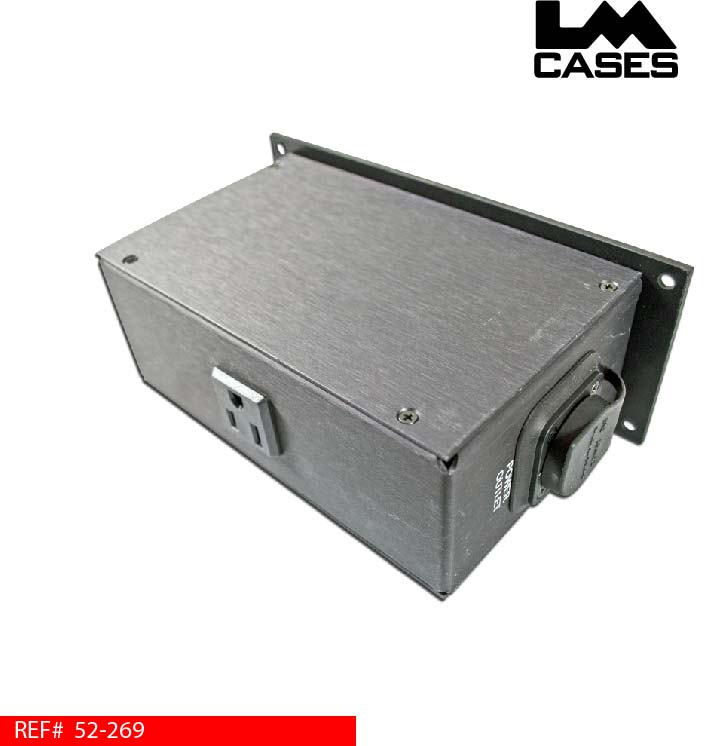

DSK-ES Switched Desktop Courtesy Power Box w/True1 Connectors

The LM Tour Systems DSK-ES desktop courtesy power panel is designed to be a central power panel for racks, and workstations that may not have room for rack mount power distribution. Other applications include separate switched outlets for monitors, or speakers that need to be switched off independently.

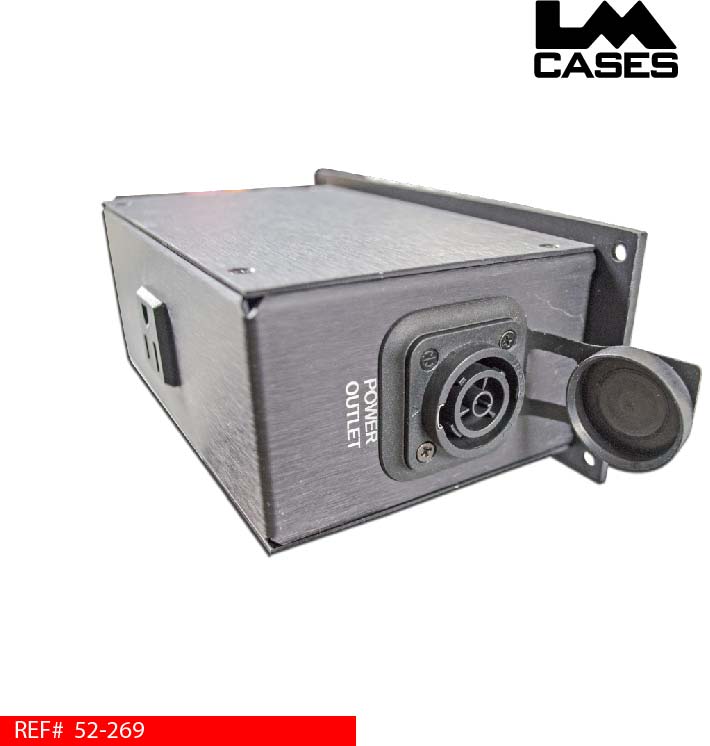

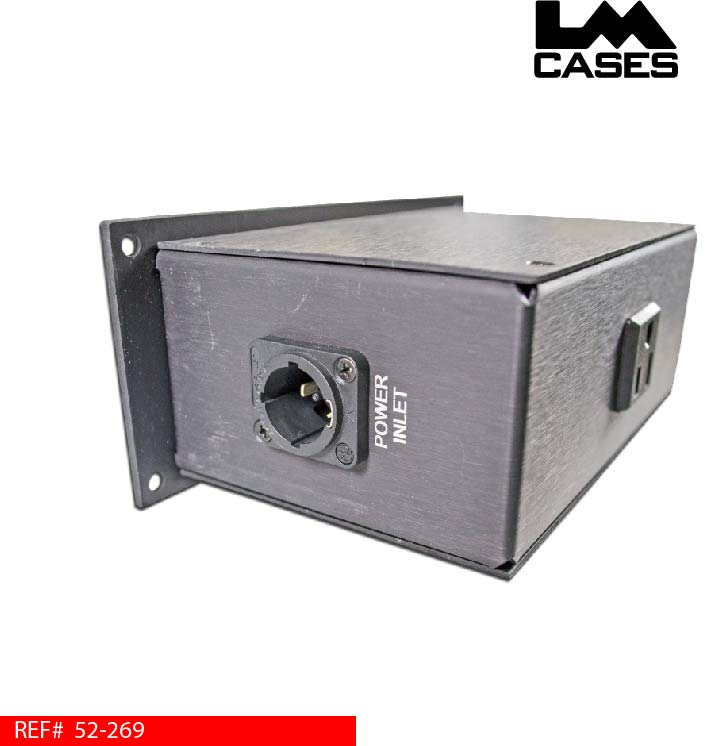

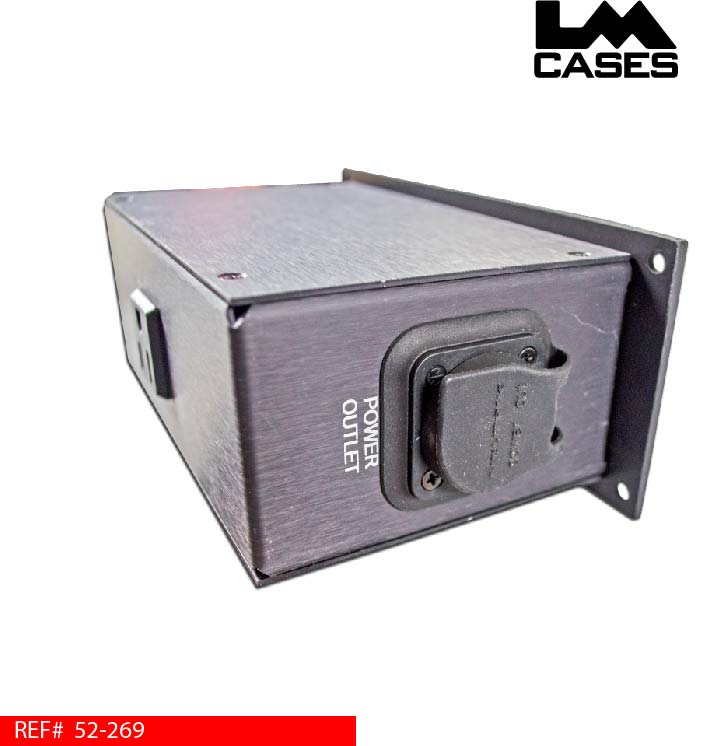

Input power is supplied to the box via a Neutrik True1 NAC3MPX-TOP inlet. Power is then distributed to 3 snap in, AC outlets, and a Neutrik True1 NAC3FPX-TOP outlet. A surface mounted switch controls all 4 power outlets. The NAC3FPX-TOP outlet is protected from moisture with an included SCNAC-FPX rubber sealing cover that protects the outlet if not in use This True1 outlet allows the DSK-ES to be a switched control for linked power distributers downstream such as the LM Tour Systems DSK-T or a Furman Pluglock

Don’t forget to add a LM Tour Systems True1 Power Cable!



To purchase this item from our online store, CLICK HERE.
