D1 Power Distribution Box

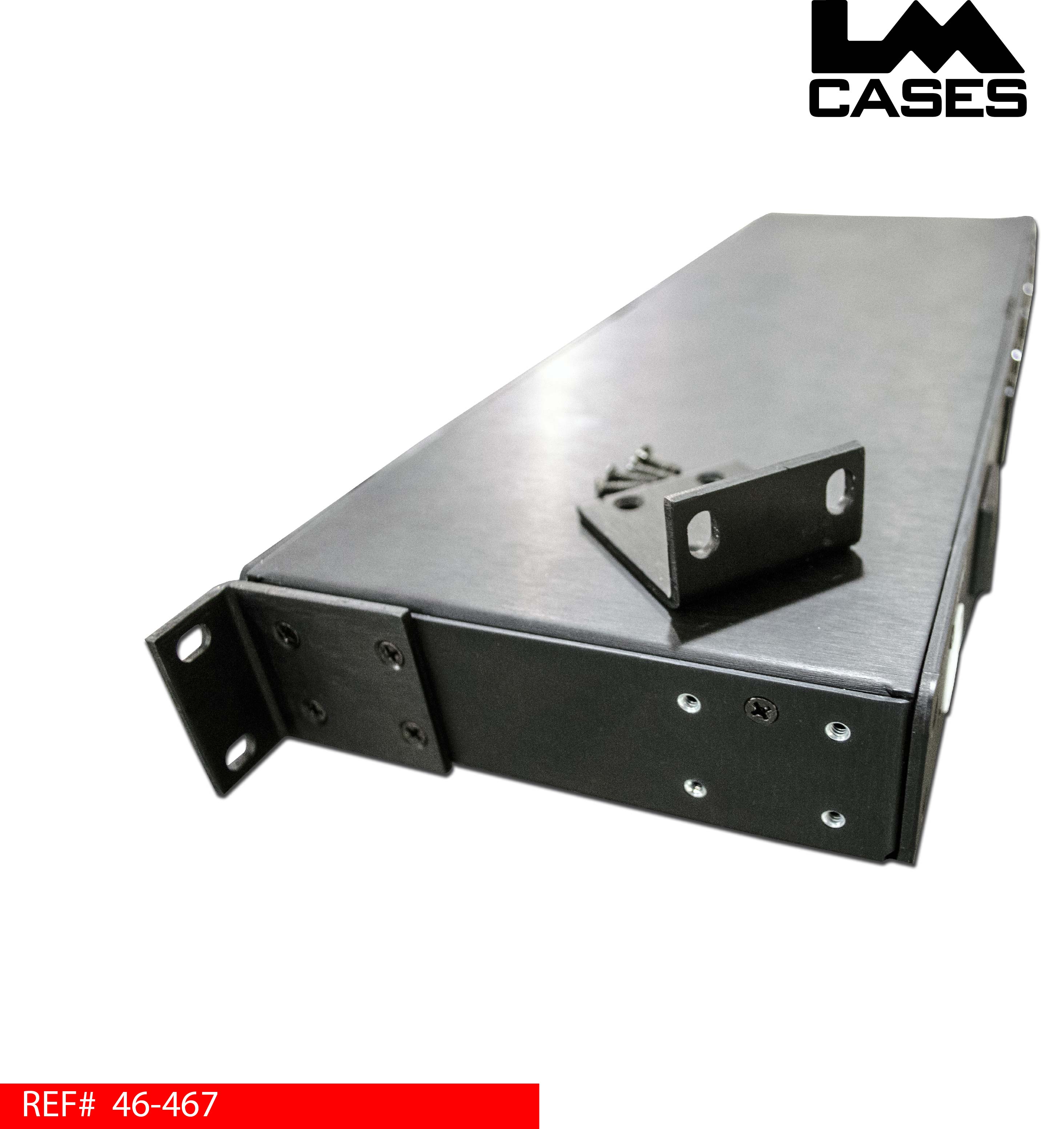

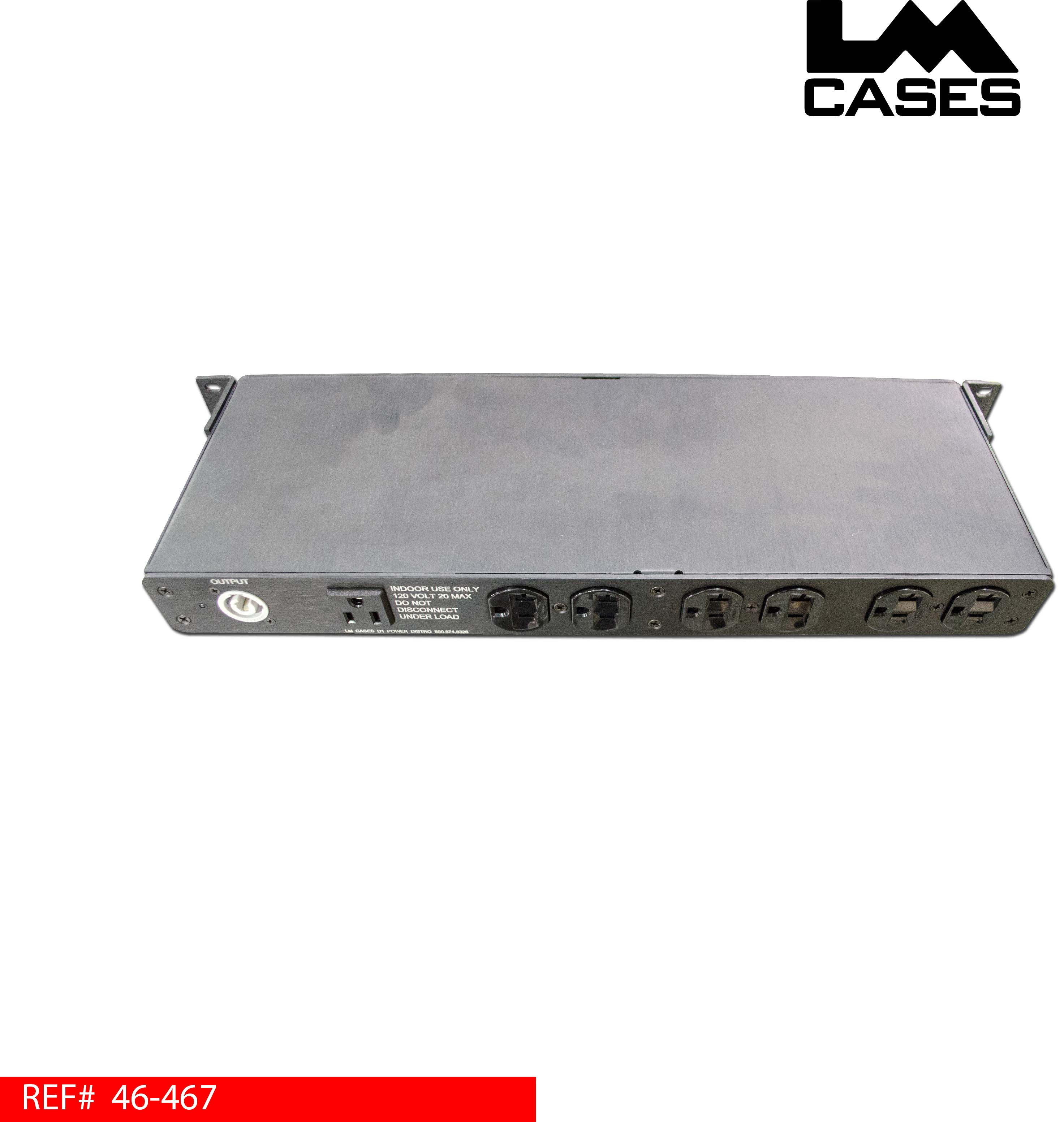

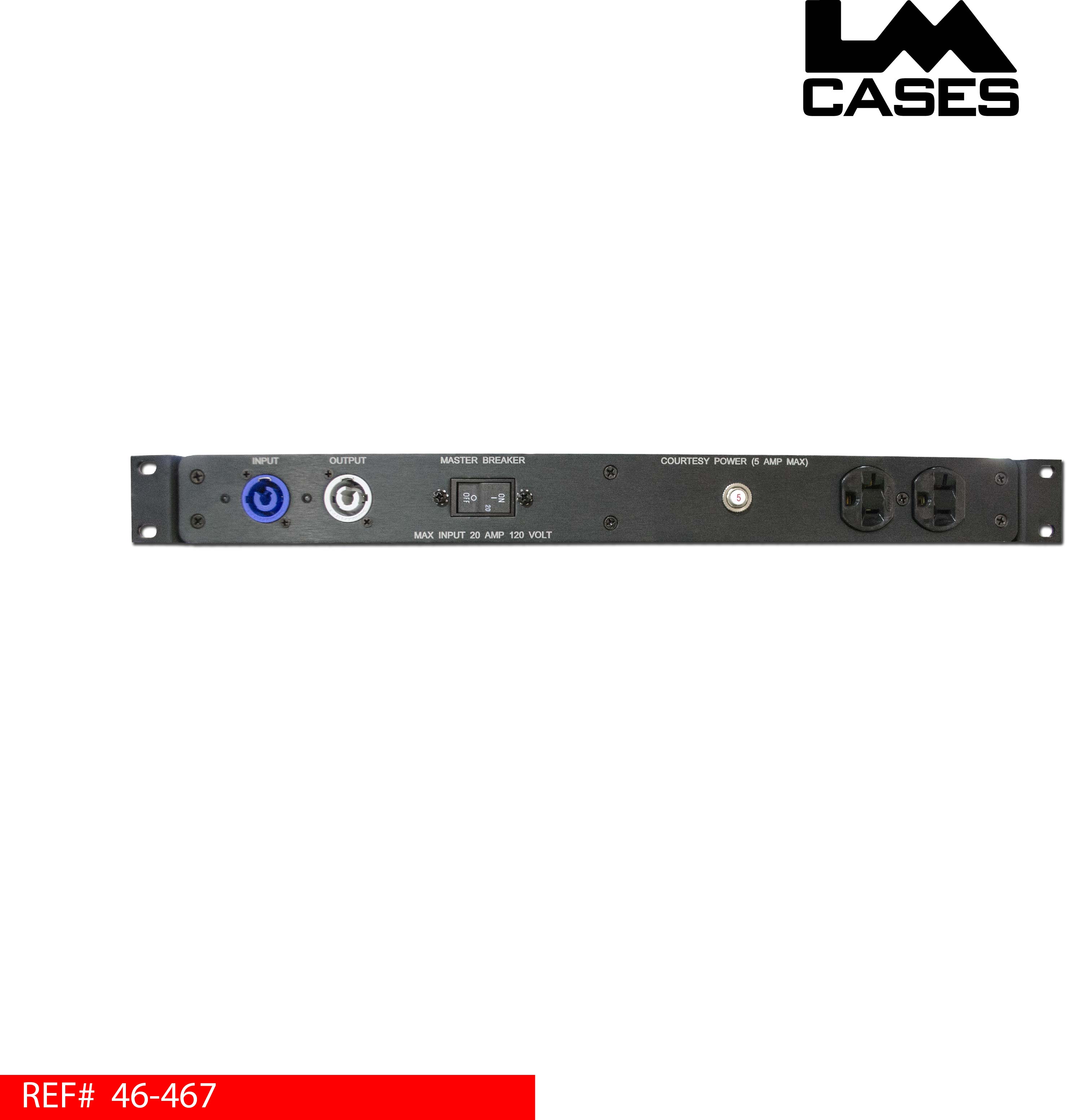

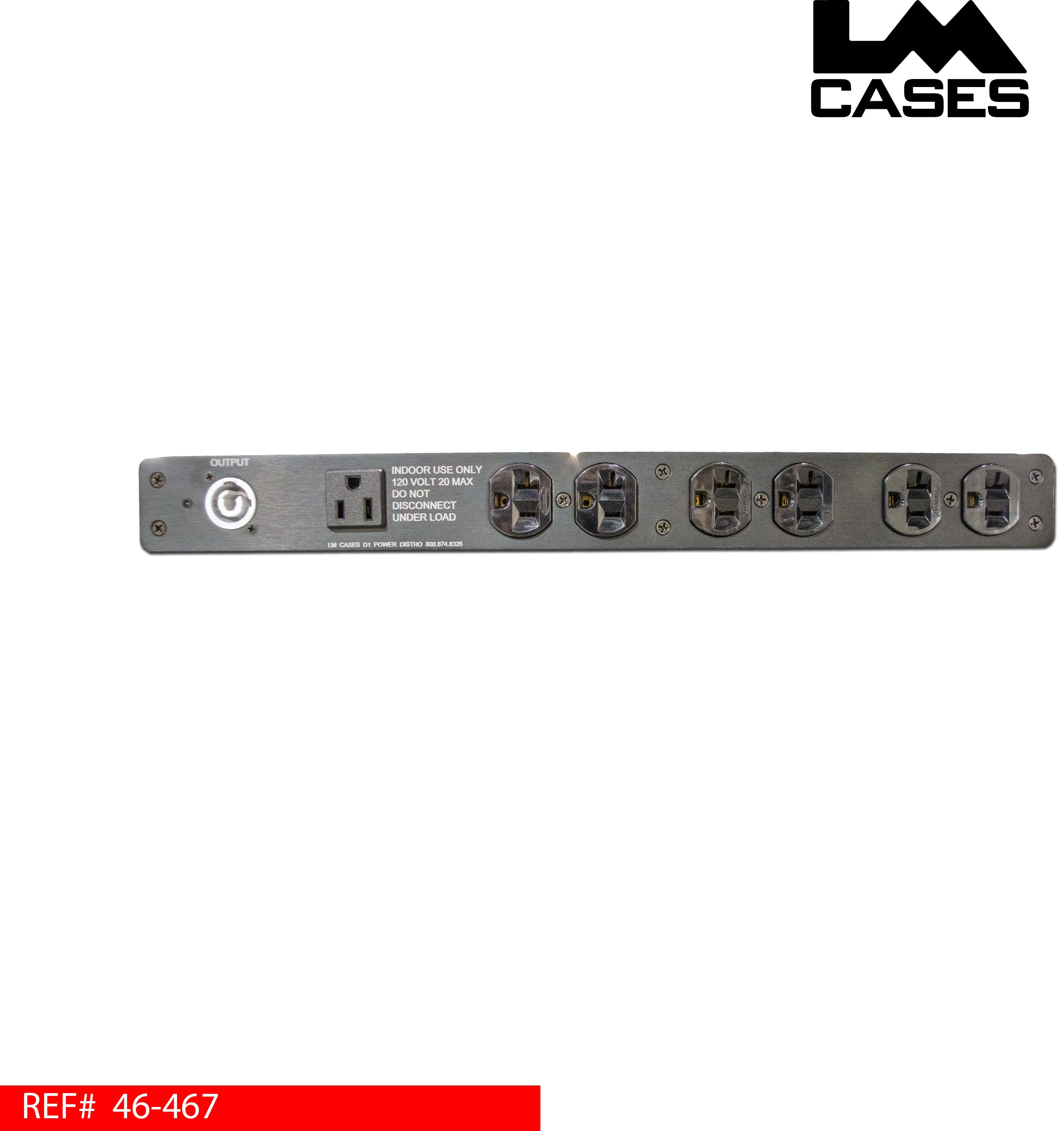

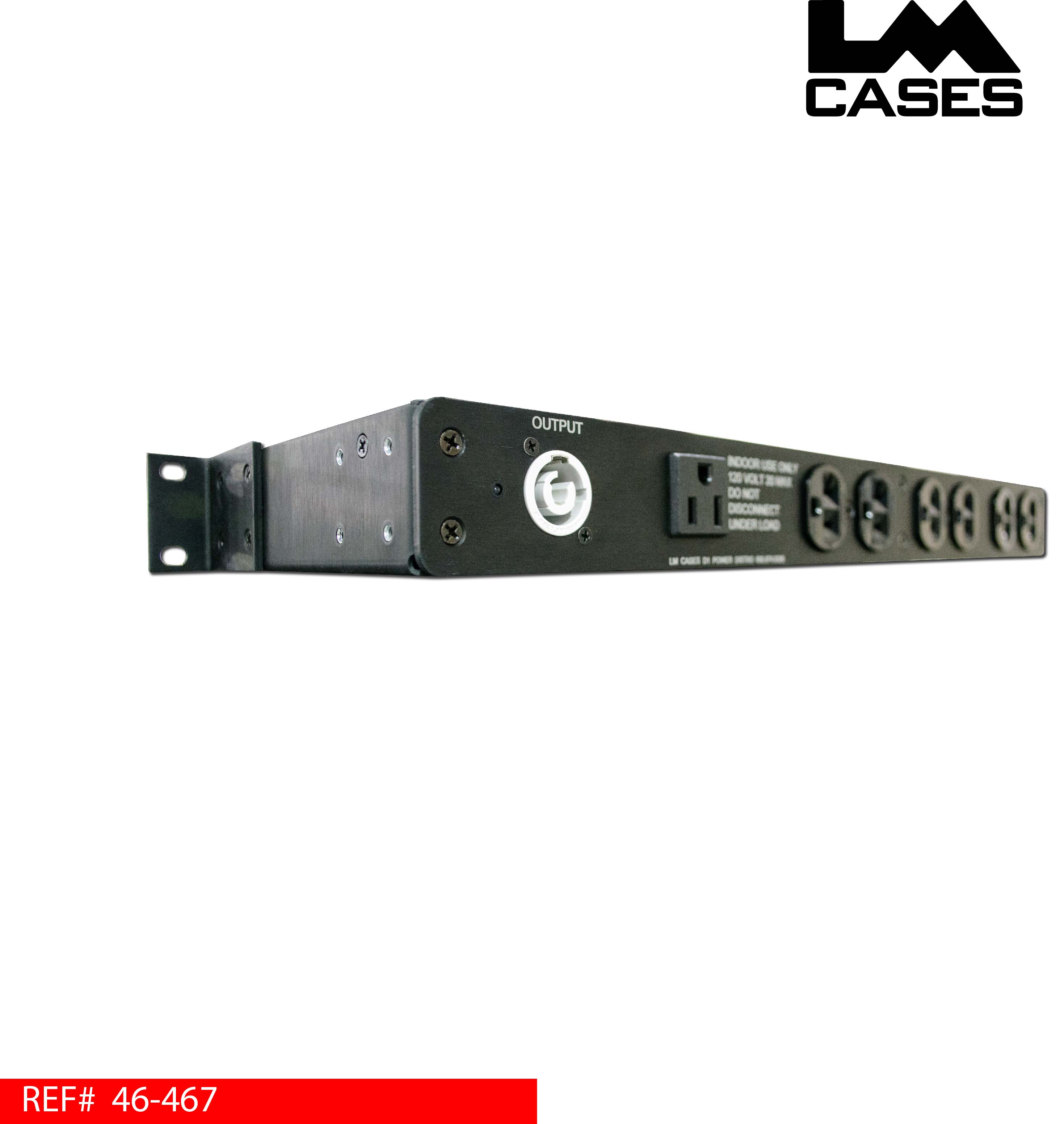

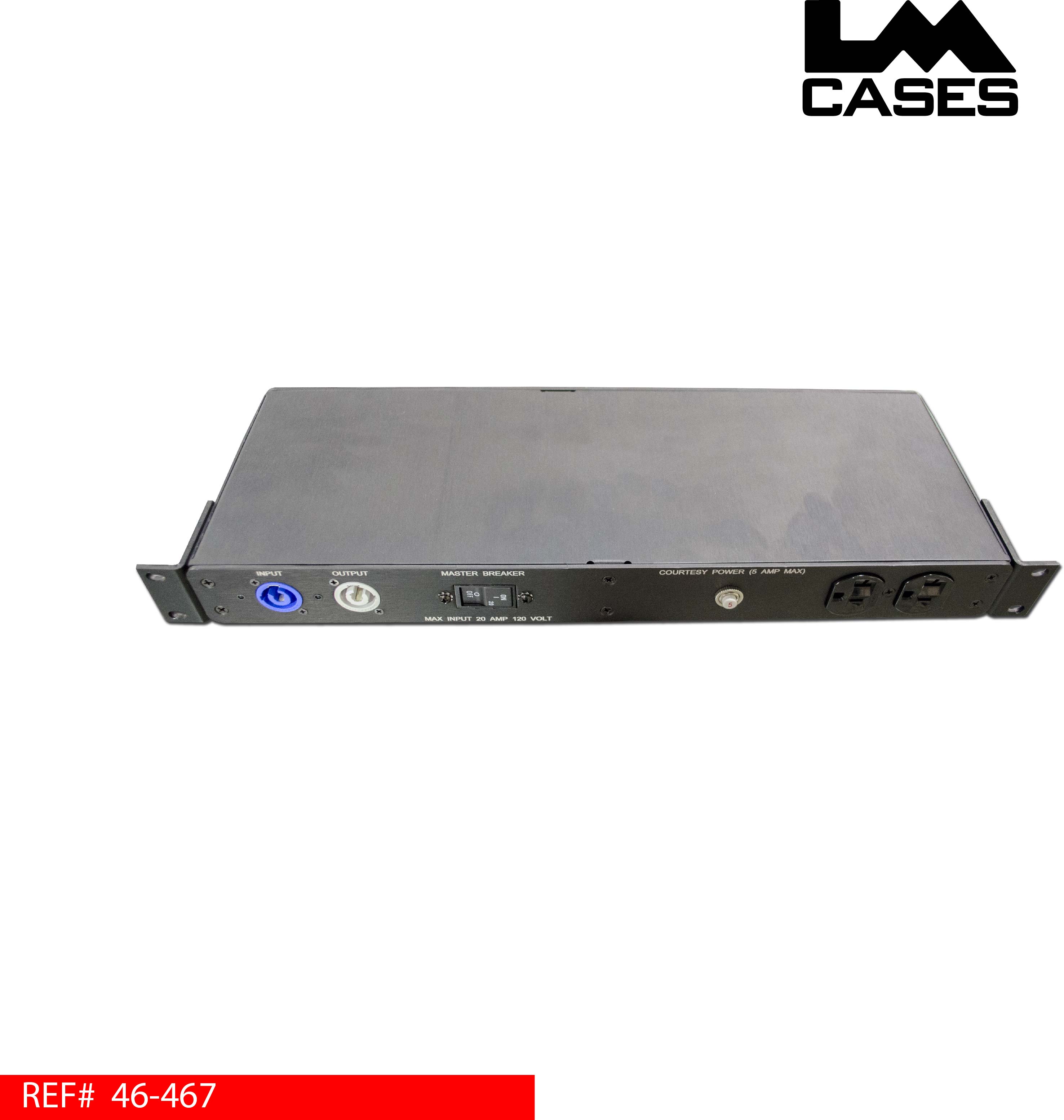

The LM Tour Systems D1 power distribution box is designed to be a central power hub for mobile racks and integrated systems. Power is introduced to the box via the front Powercon connector. A blue status LED shows when power is present. The 20amp hydraulic master breaker provides control over all outlets and can serve as an on/off switch for systems. A front mounted Powercon loop outlet is provided for linking systems together. This outlet is configured post breaker. A front mounted courtesy duplex is provided with a dedicated 5-amp breaker. The rear of the unit features 3 duplex outlets for a total of 6 outlets in a close proximity configuration. A spaced Edison outlet is provided for larger “wall wart” style plugs that render plugs in a duplex configuration un-usable. An additional rear Powercon® outlet with a blue status light is provided for linking additional items. The D1 can be rack mounted from the front or rear via the removable ears. The unit features rounded front and rear face pieces for a streamlined look when using the unit without its ears attached in a stage box configuration.

To purchase this distro from our online store, CLICK HERE

Product Video: CLICK HERE
