Art Gallery Mounting/Installation Work Station

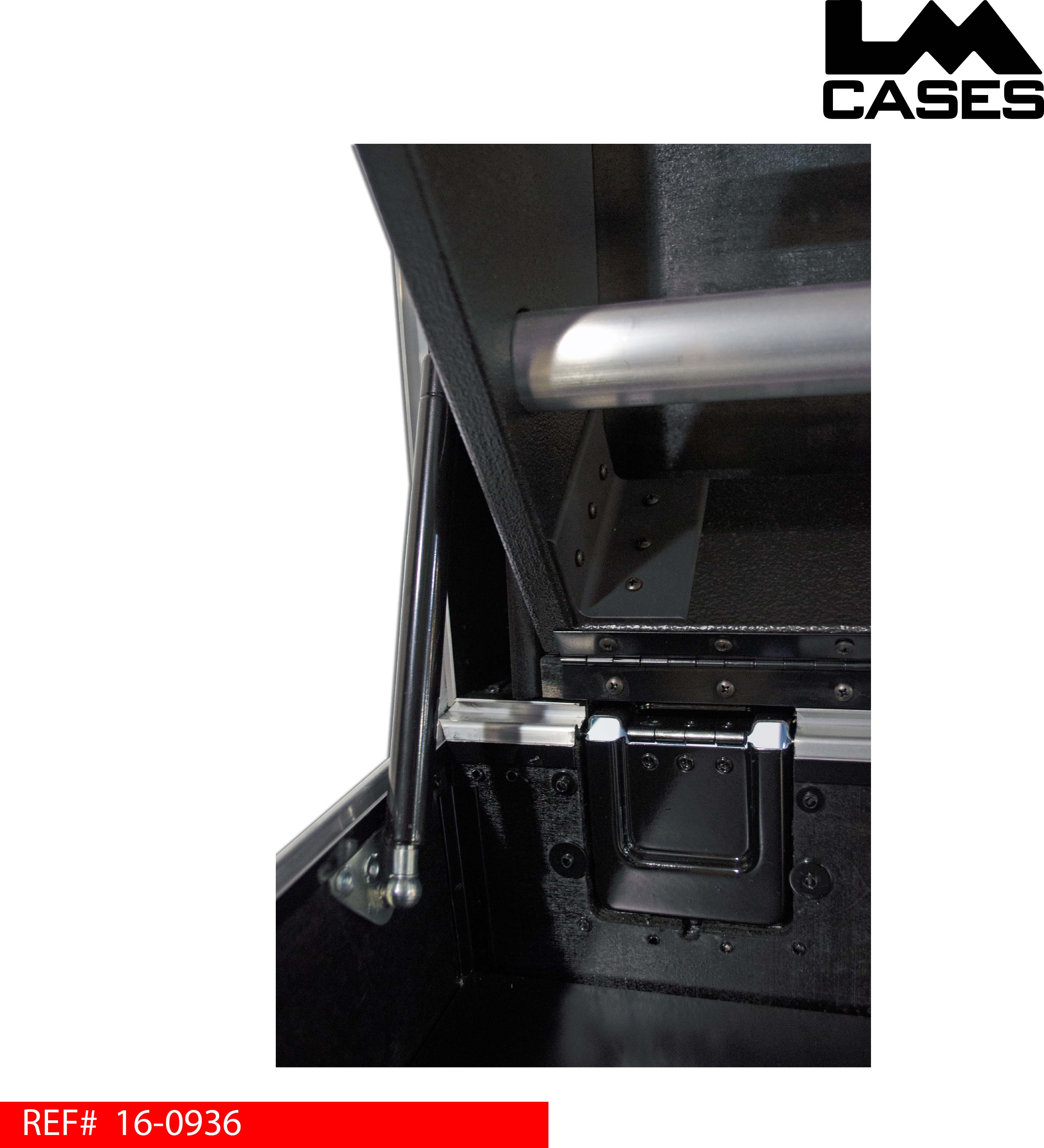

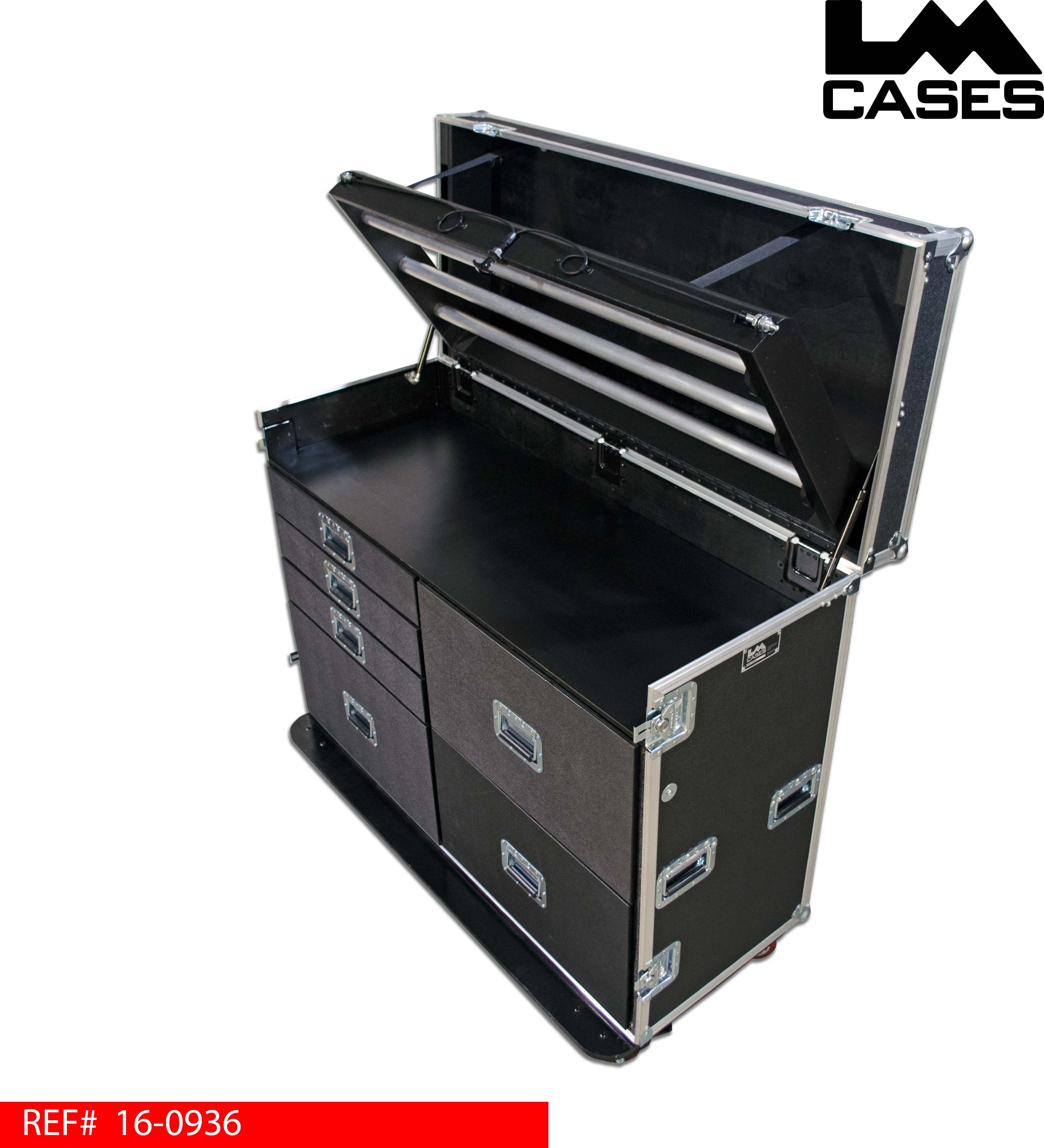

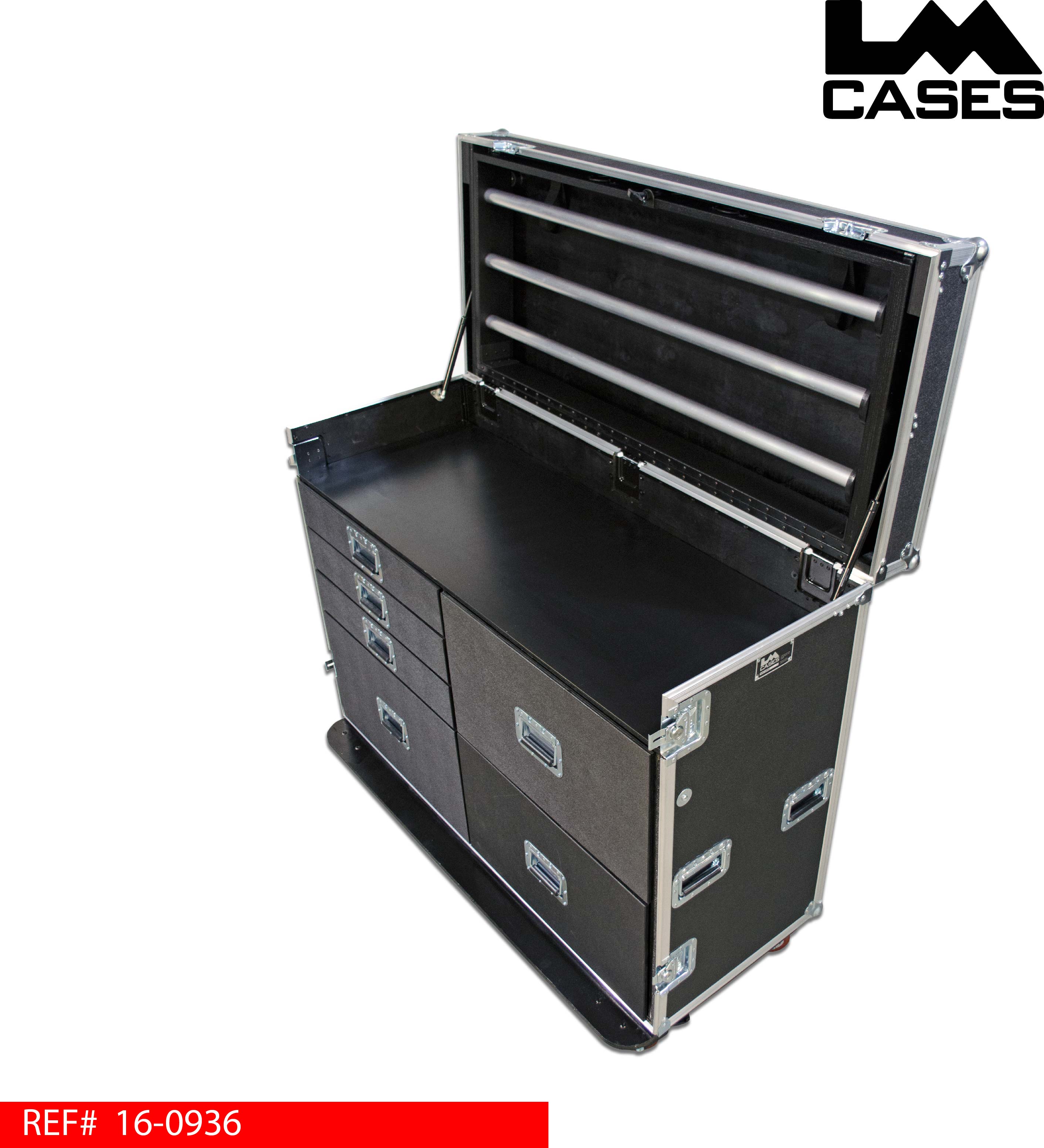

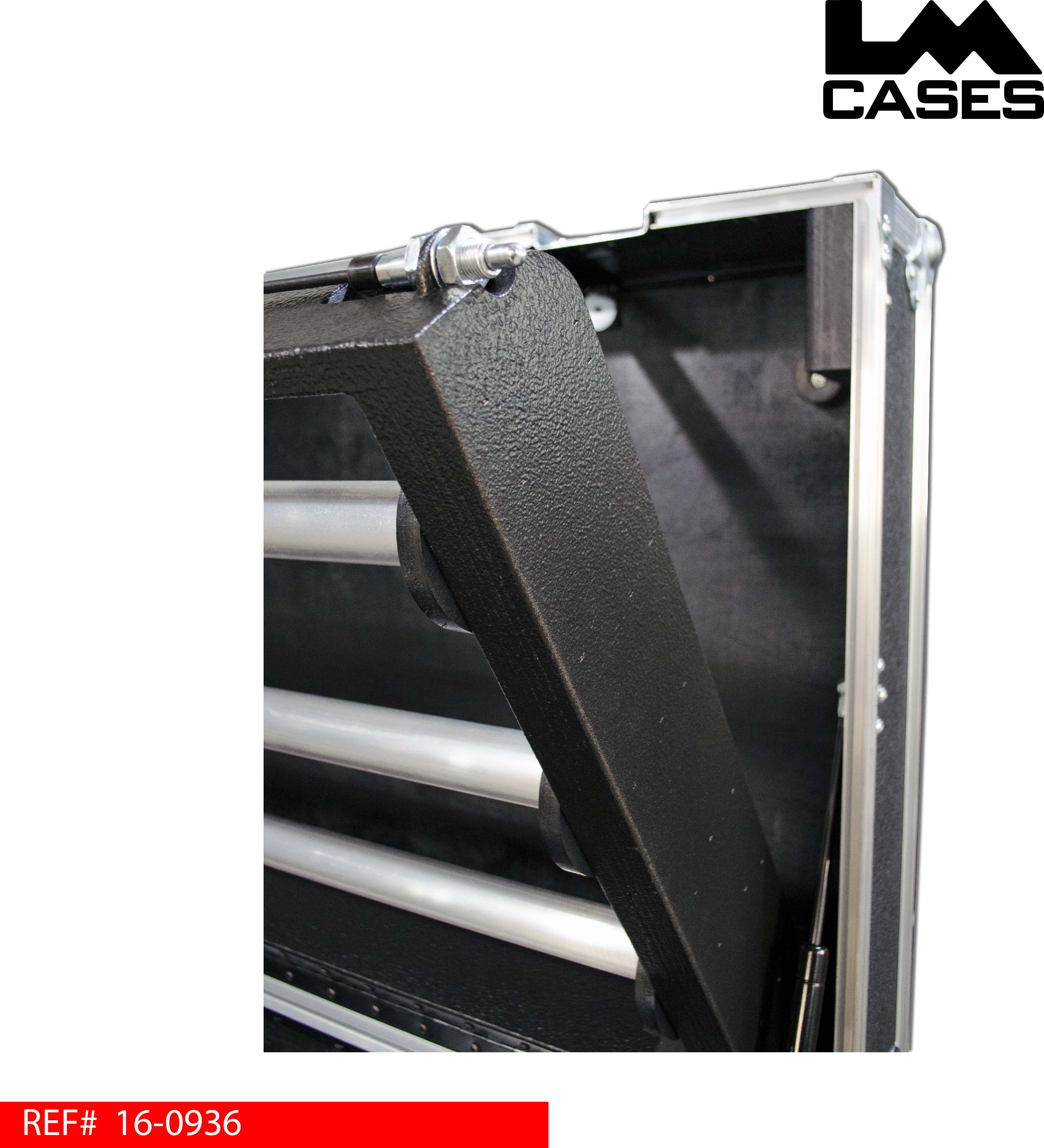

This case was built for the Garth Greenan Gallery as a mobile work station used in art mounting and gallery installations. The case lid features a tilting frame that has 3 rods for mounting paper rolls. The frame is designed to hold 3 rolls of paper that are 6” diameter. For easier access, the frame tilts forward. It is secured with a cable latch with a central pull handle that secures the frame at the left and right side. The case lid is held in position with gas springs.

The main work surface is finished with black Formica. The drawers are mounted in a stand alone ½” plywood inner shell. The inner shell is isolated from the exterior case with ½” PE foam. Each drawer is built out of ½” Baltic birch plywood, mounted on HD Accuride glides and finished with black texture coating. The drawers are in two sizes: 3 drawers are 24” wide x 18.25” deep x 3.875” tall, 3 drawers are 24” wide x 18.25” deep x 14.125” tall.

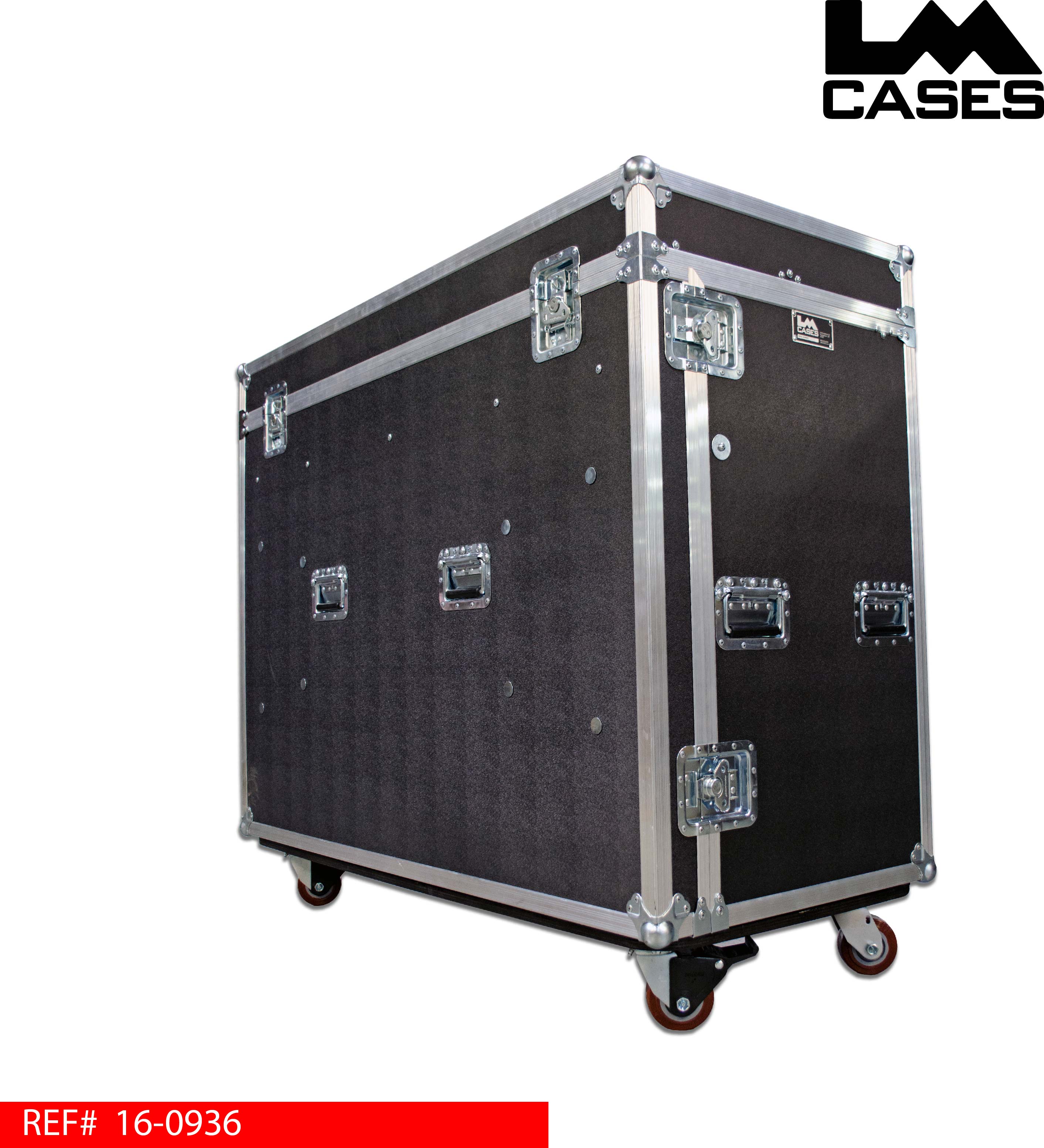

The exterior case is built out of 3/8” plywood laminated with black ABS plastic. The case featured deep recessed hardware, and rides on HD 4” x 2” Colson casters.

Special thanks to Garth Greenan Gallery!
