Bridgestone/Firestone Pegisys Test Case

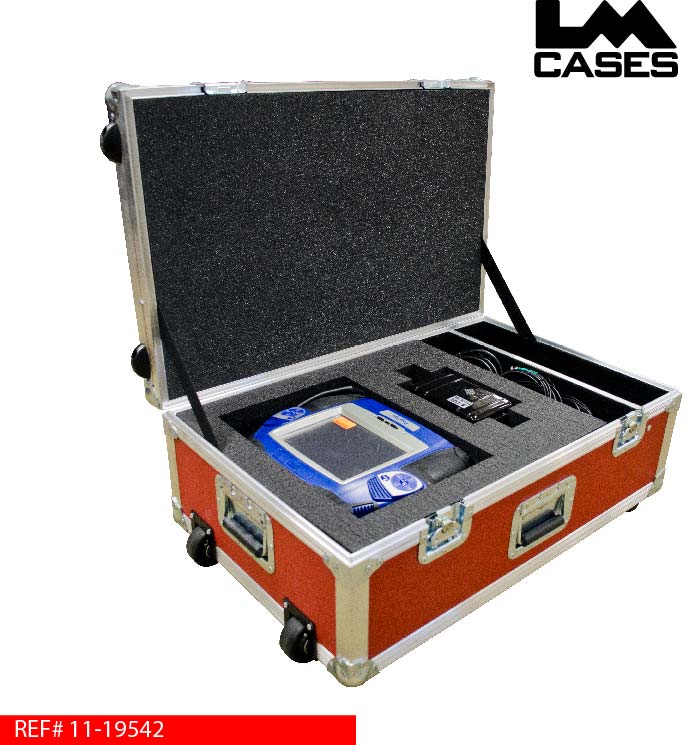

This diagnostic test equipment case was designed for Bridgestone/Firestone. The case will be shipped via UPS, so durability and light weight were a top concern on this project. The case was built using our proprietary 3/8" composite panels which allows the case to be light weight as well extremely strong.

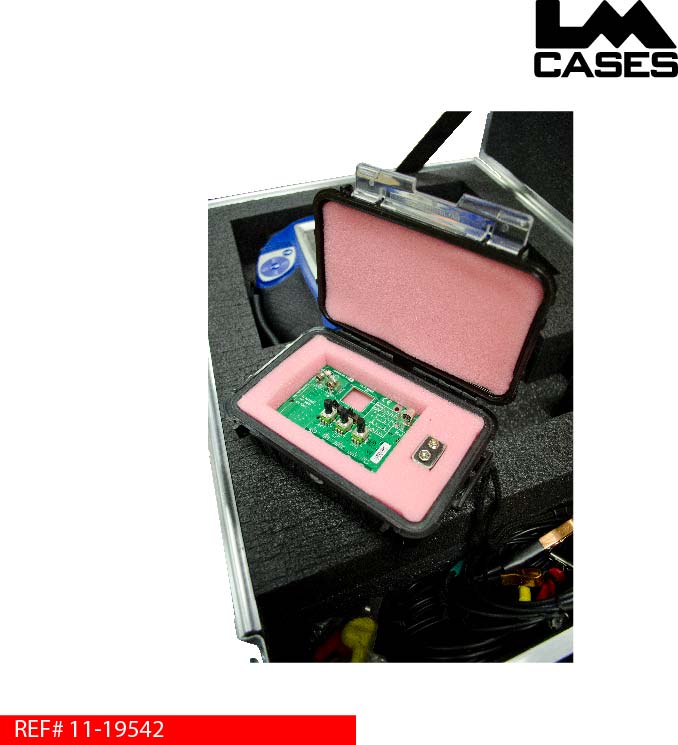

The interior case features a custom CNC cut insert that holds the Pegisys unit as well as a Pelican 1075 case. The Pelican 1075 case holds a signal generator, because the signal generator is a raw component; pink anti-static foam was used on the cases interior.
The exterior case features a 3 stage telescoping aluminum handle as well as inboard dolly casters. The casters are mounted using standard 10/32" machine screws so they can be replaced in the field by the customer.
Special thanks to Bridgestone/Firestone!
