MA onPC Command Wing / Fader Wing Flight Case FOH Workstation

This case was designed to be an all in one, pre-wired workstation for MA Lighting, onPC Command Wing, and Fader Wing controller. The case holds each of the control surfaces in place via custom brackets that contour each of the unit’s shape. Touch screen monitors are mounted on HD Ergotron arms, allowing multiple placement options. Custom rack mount panels provide access to all necessary connections.

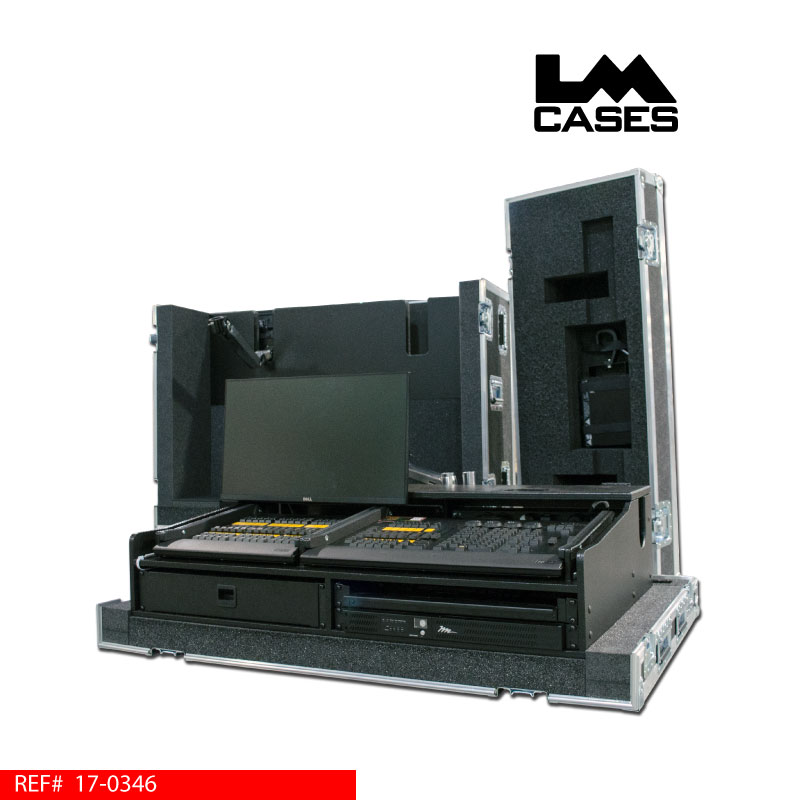

The case interior features a custom internal structure built from ½” Baltic birch that is finished with black textured coating. The controllers are mounted in custom compartments and held in place with CNC cut brackets that contour their unique shape. A hinged lid is mounted behind the controllers to provide access to all rear mounted connections. Dual 2RU, front mounted, rack sections are mounted below the control surfaces for equipment storage. In its current configuration, the components shown include a UPS, 2RU rack drawer, and a 1RU keyboard/mouse.

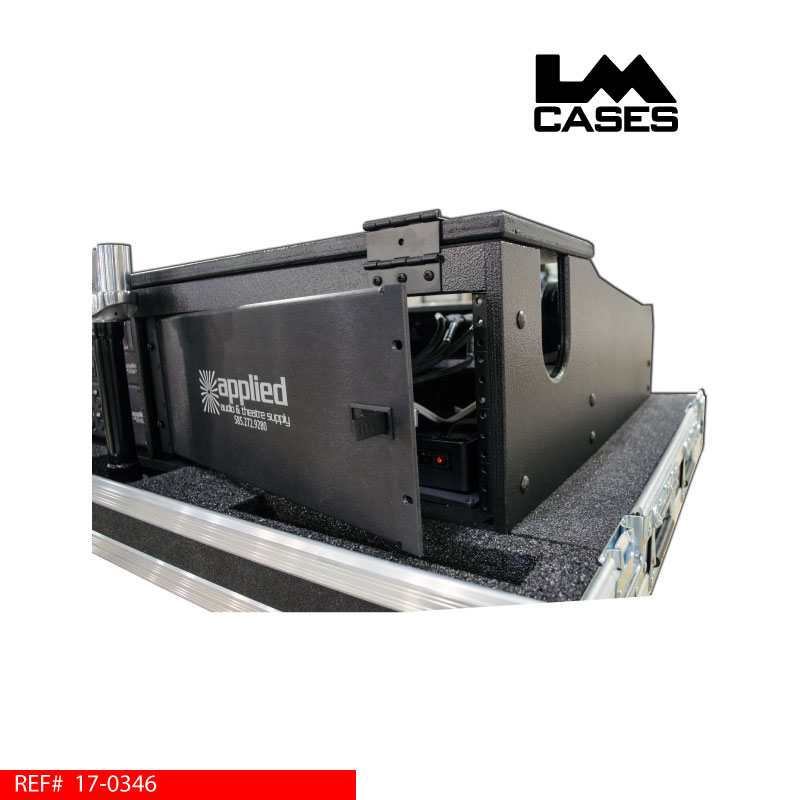

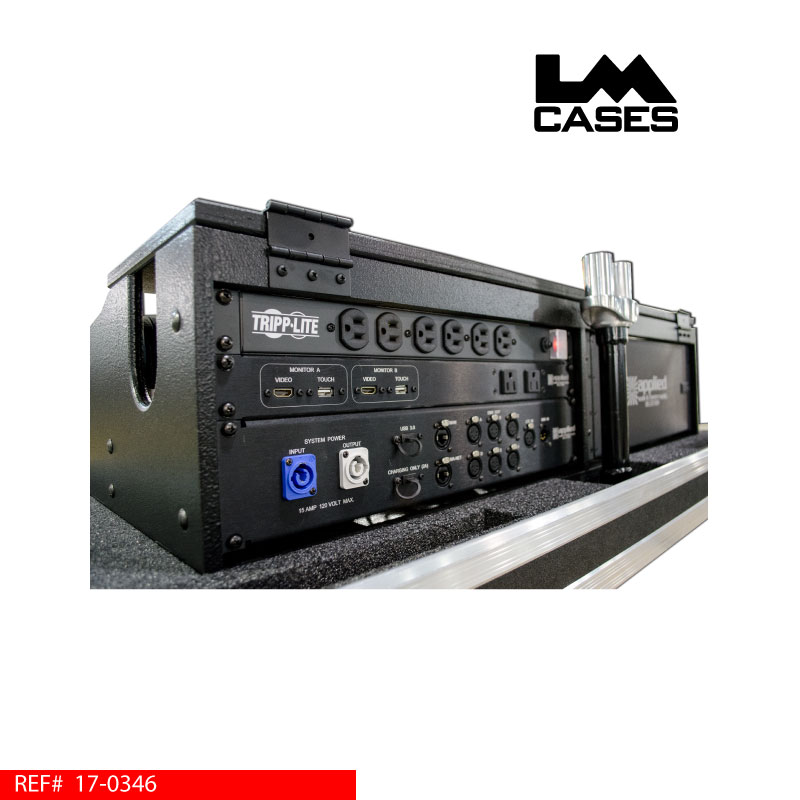

Dual 4RU rack sections are available on the back of the internal structure below the compartment’s hinged lid. The LM Cases Custom Integration department provided custom rack mounted panels to access all the I/O connections needed for the system. A 1RU panel is provided to neatly separate the monitor connections. HDMI and USB jacks are provided, with 2 separate snap in, spaced Edison AC outlets to accommodate larger plug sizes. A 2RU I/O panel is provided to handle all DMX, data, and network connections to the internal computer, and control surfaces. Powercon in and thru are provided for system power. A Tripplite RS1215 was spec’d as a PDU for additional courtesy outlets. A 4RU hinged access door with the “Applied” logo was provided to allow quick access to the other side of the unit.

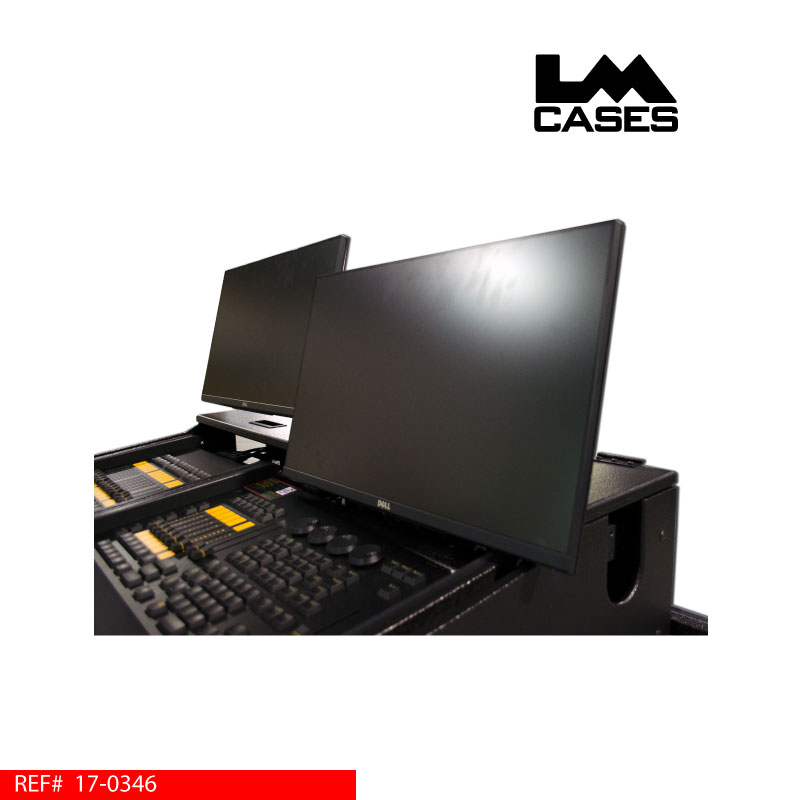

Dual Dell 24” touch screen monitors are mounted on fully articulating Ergotron arms. Custom looms that include the USB, HDMI, and AC power were built by the LM Cases CI department.

The case exterior is built from 3/8” plywood, laminated with black ABS plywood. The case features removable top and front lids for full access. The case features 18 deep recessed handles, a dry erase label dish and 4” Colson casters.



Special thanks to Jon and the Applied team for a great project!
