University Of Maine Video Flypack

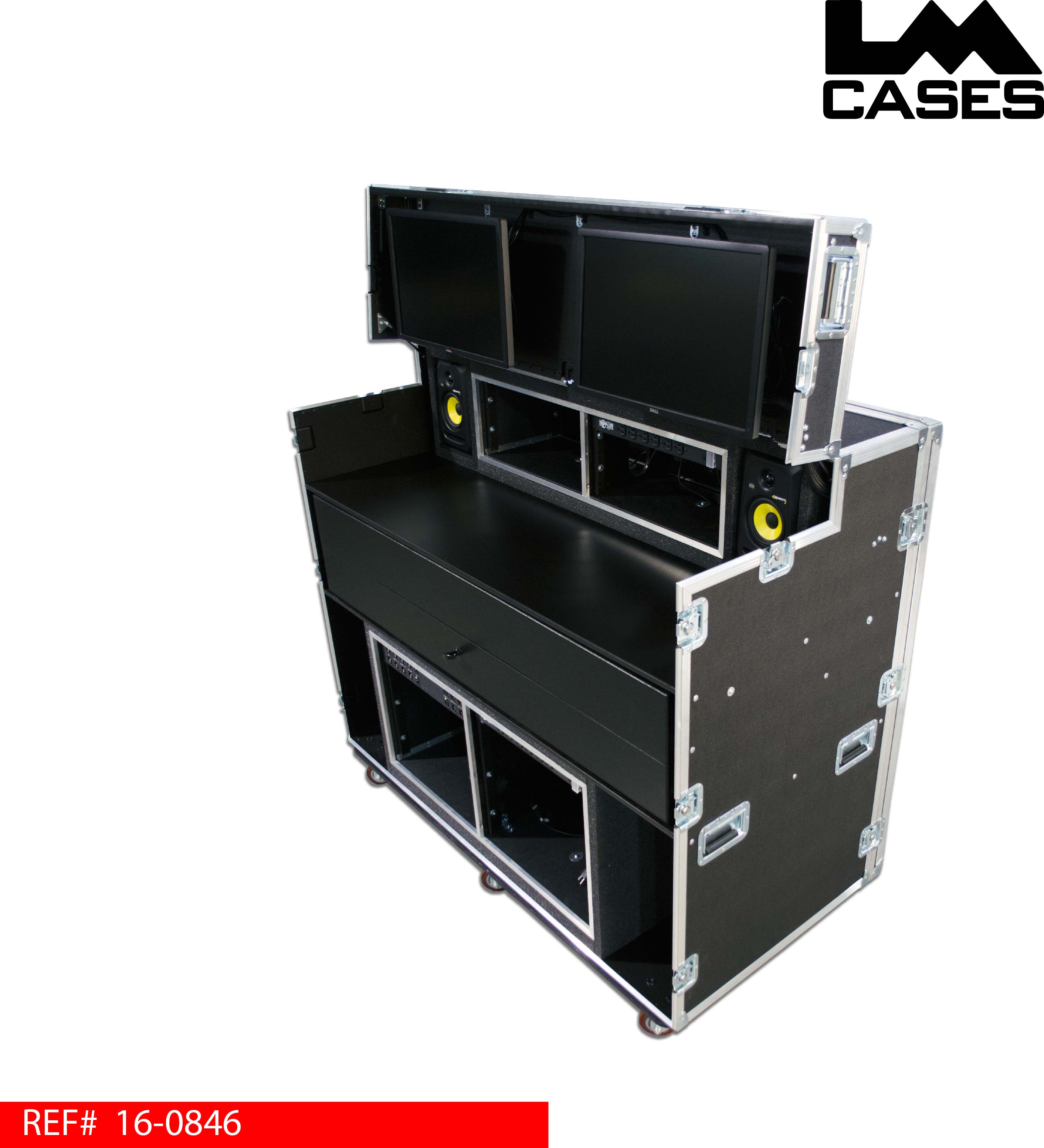

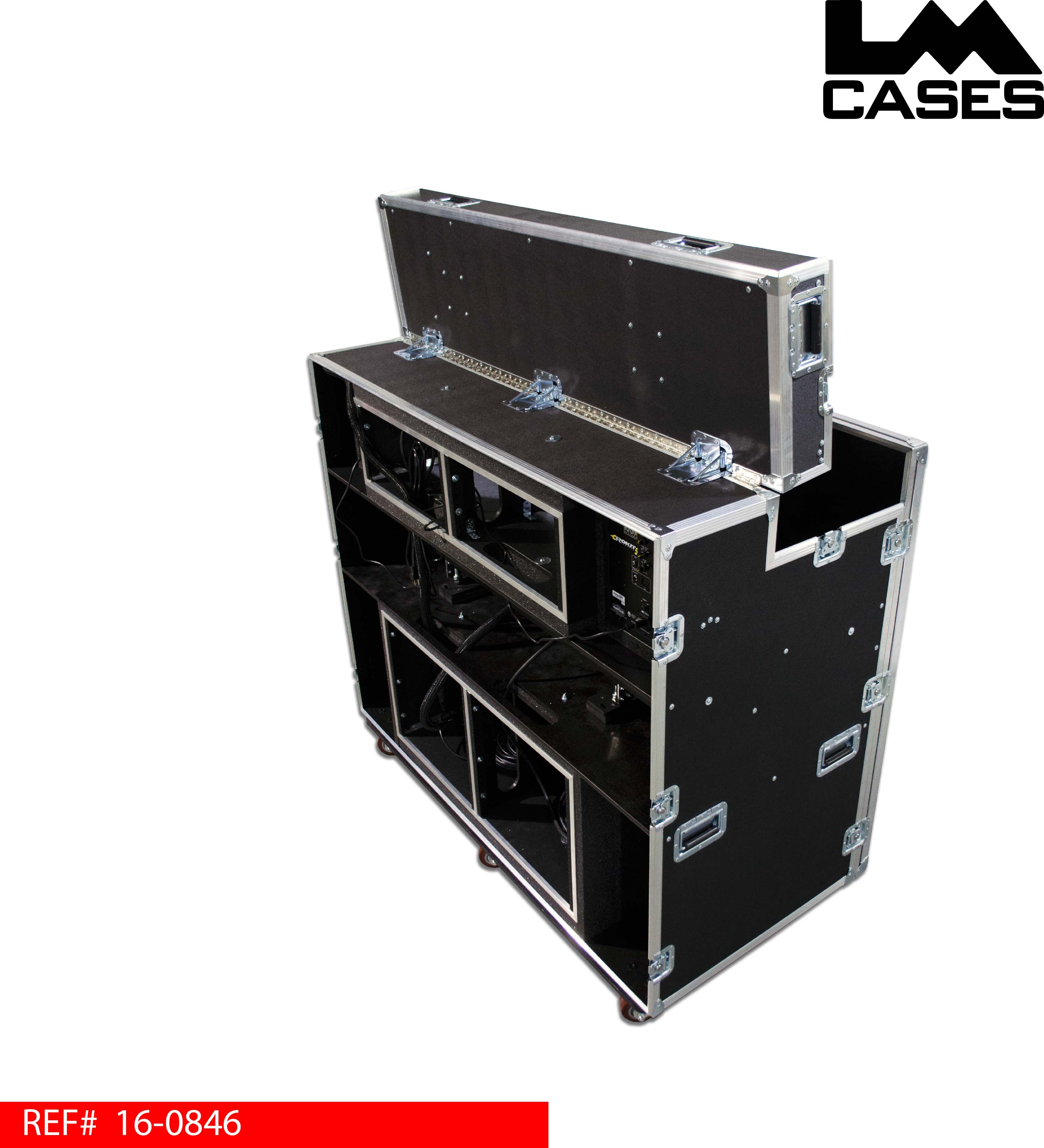

This video fly pack was designed for the University Of Maine. The LM Cases Custom Integration department handled the installation of the audio visual components and the construction of the custom rack panel. The case features a flip up lid supported by gas springs, a dual 5RU shock mounted rack, slide out work surface with integrated IO panel and a dual 10RU shock mounted rack section.

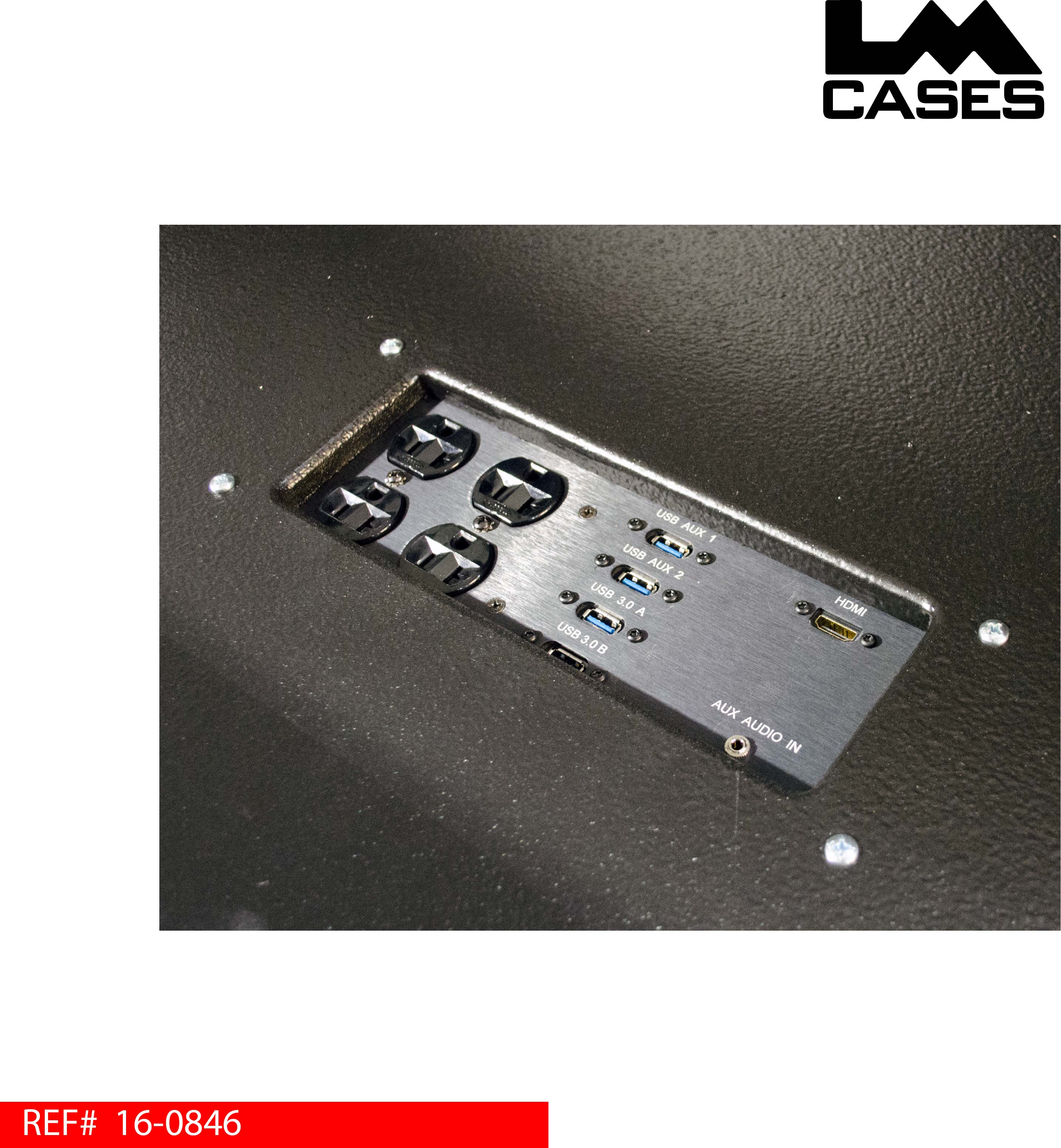

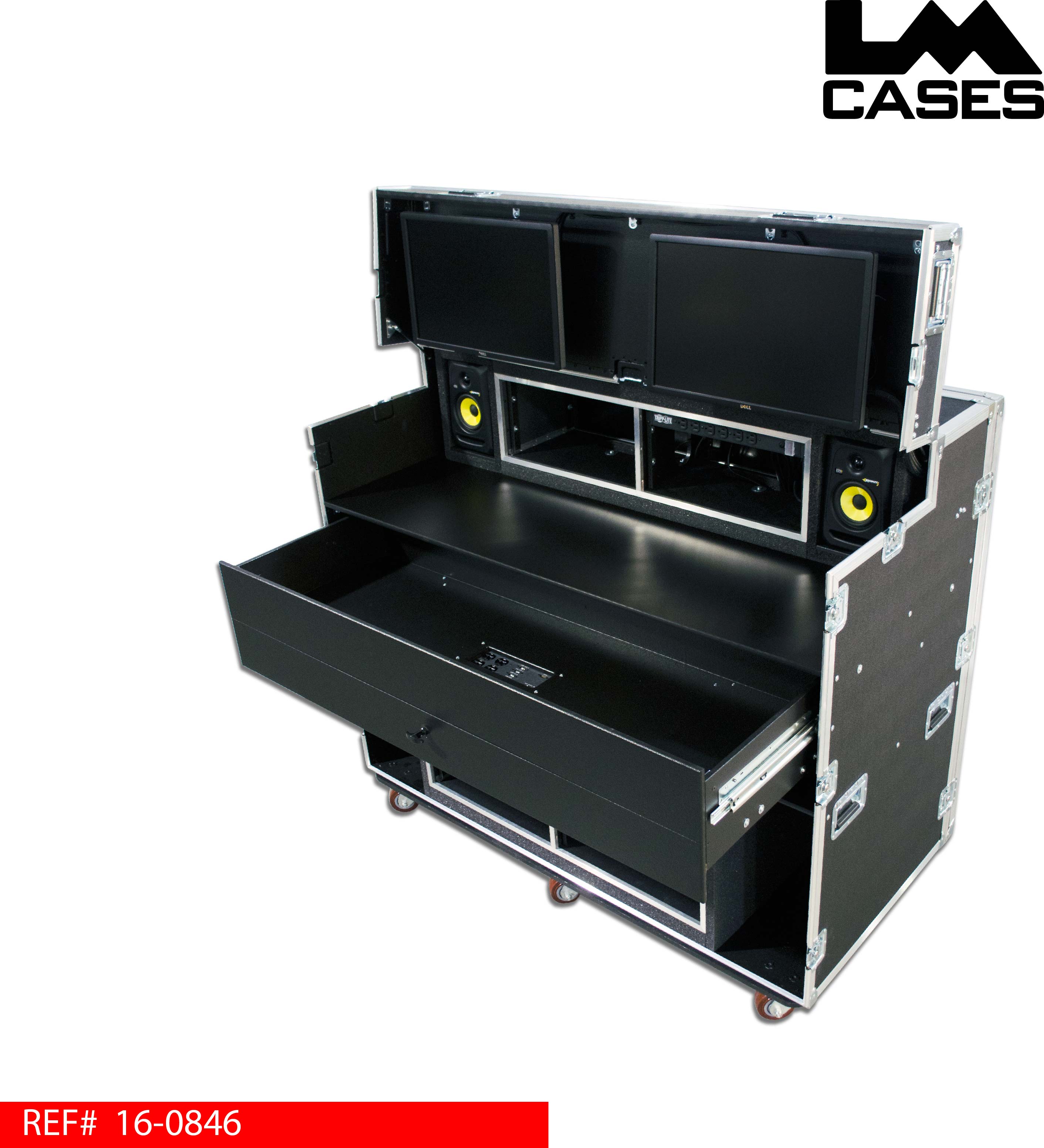

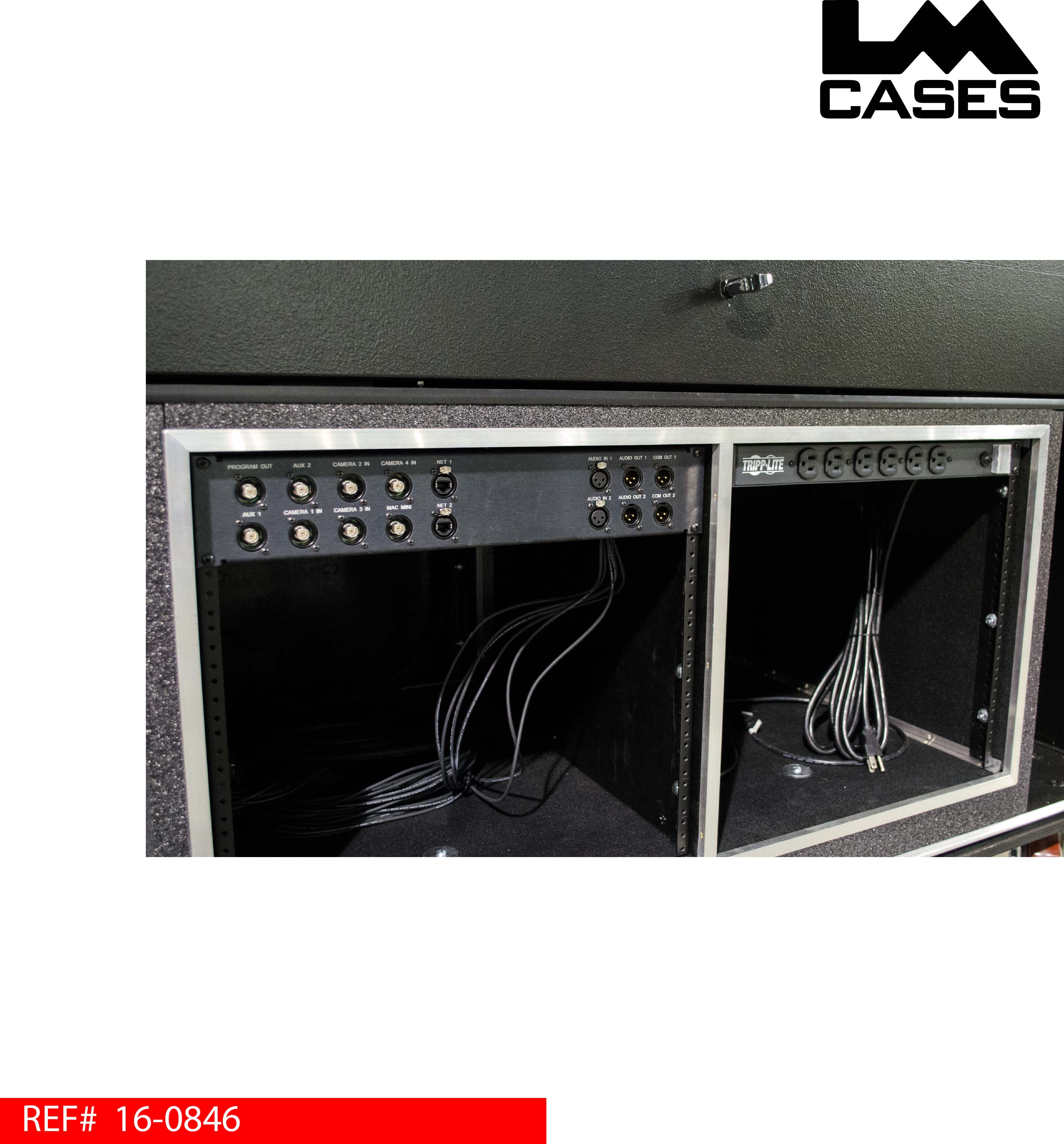

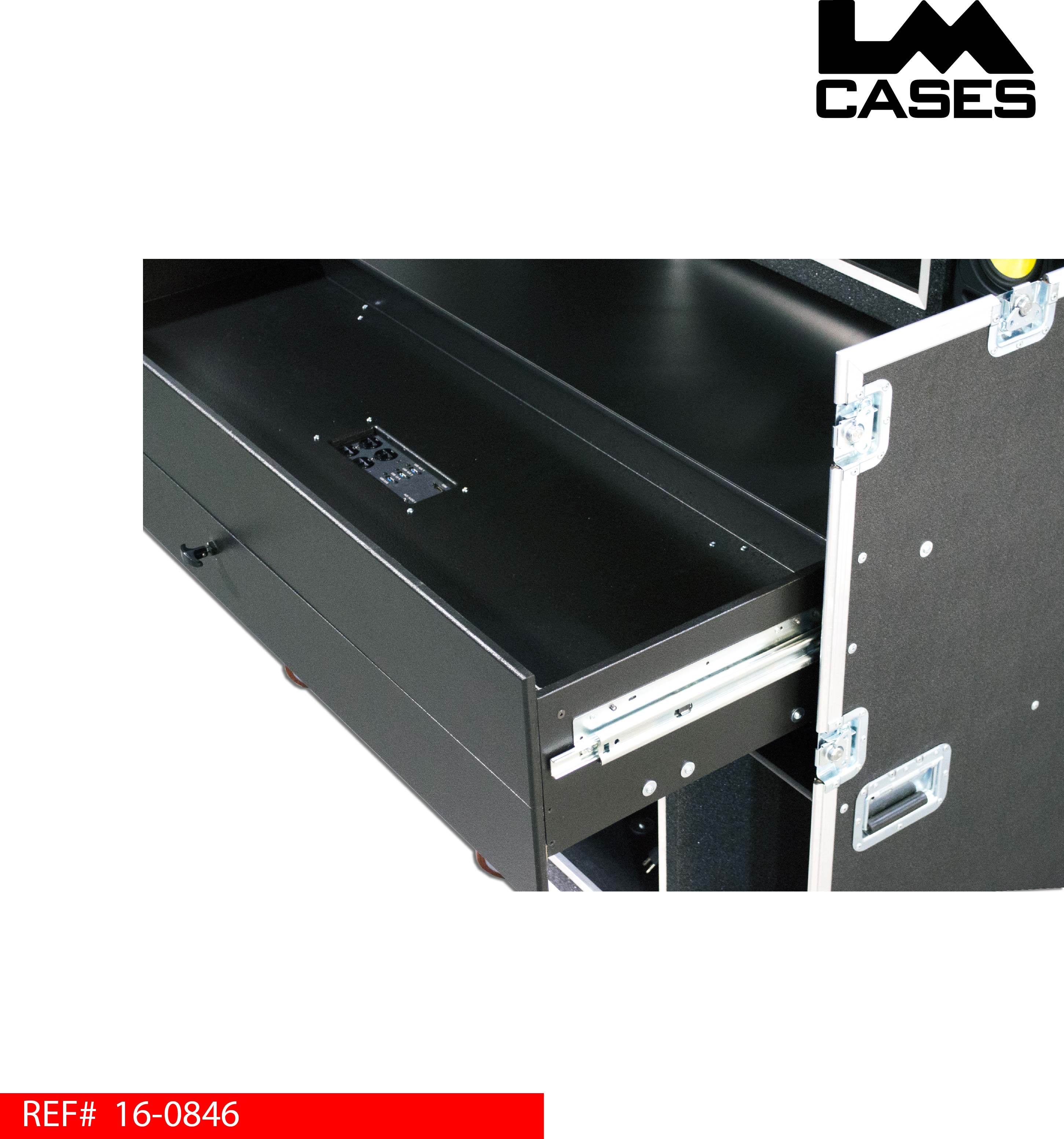

The case interior is finished with black textured coating. The flip up lid features 2 Dell 24" Ultrasharp monitors mounted on tilting Chief mounts supported by integrated gas springs. Below the flip up lid is a dual bay 5RU shock mounted racks that are 12" deep. The double wide 5RU rack section features a KRK speaker on either side. The slide out work surface has usable area of 59.75" wide x 20" deep and an IO panel that has 4 Edison outlets, 4 USB outlets, an HDMI jack and a 1/8" audio input jack. The slide out work surface is built out of 3/4" Baltic Birch plywood and mounted on heavy duty Accuride drawer glides. The work surface also features a multi-position locking latch system that allows it to be pulled out and locked in various extended positions.  Below the work surface, is a double wide 10RU shock mounted rack section that has 28" of rack-able depth. The rack section features a custom 2RU IO panel that features 8 BNC jacks, 2 Cat 5 Jacks and 6 XLR jacks. Each of the custom panels in the case were built out of 1/8" anodized brushed aluminum and feature laser etched labels. All cables are neatly dressed and labeled at both ends.

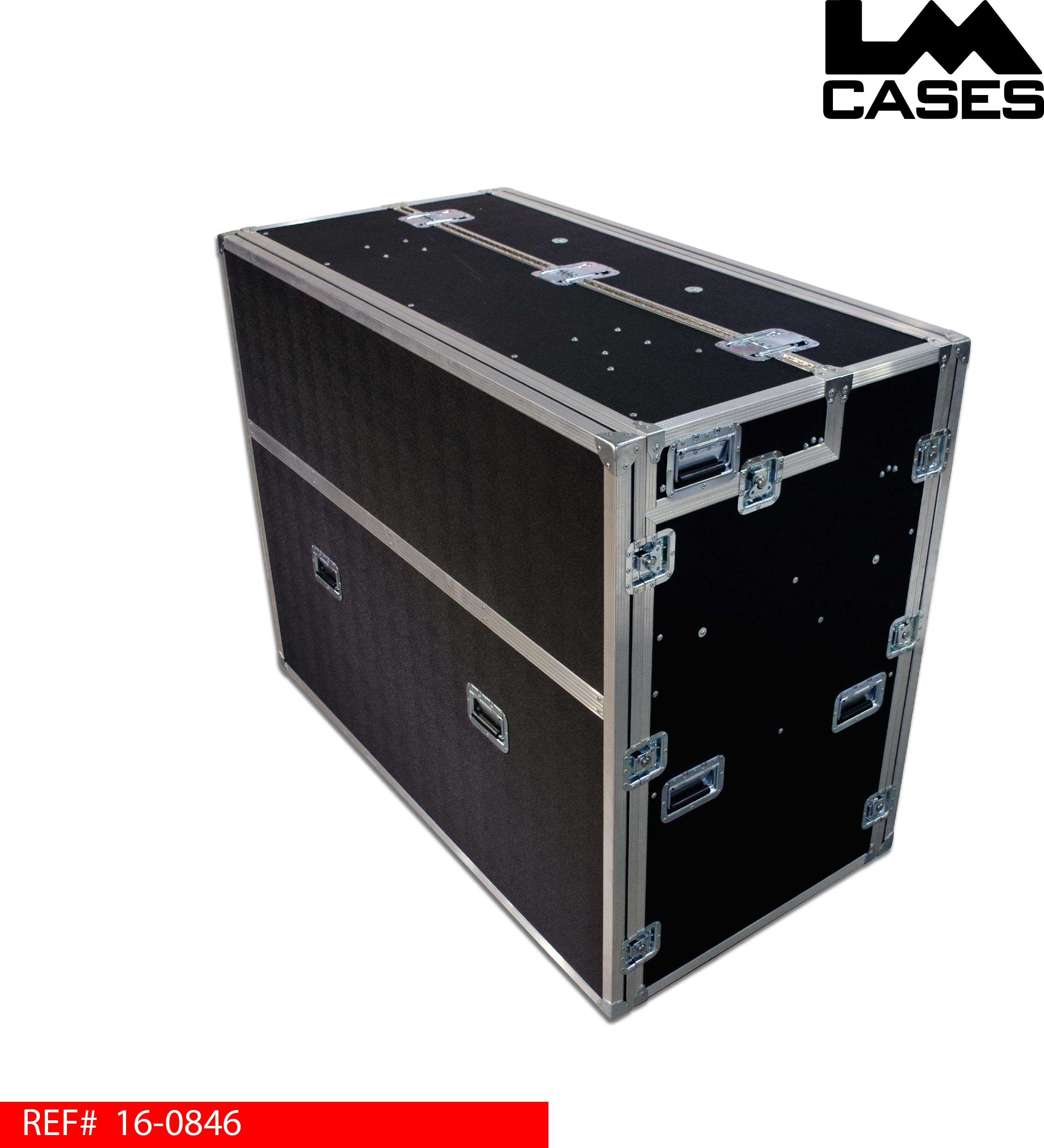

The exterior case is built out of 1/2" plywood laminated with black ABS plastic and featured deep recessed hardware and Colson 4" x 2" casters.

Special thanks to the University Of Maine!
