Cleveland Browns Locker Room Supply Trunk

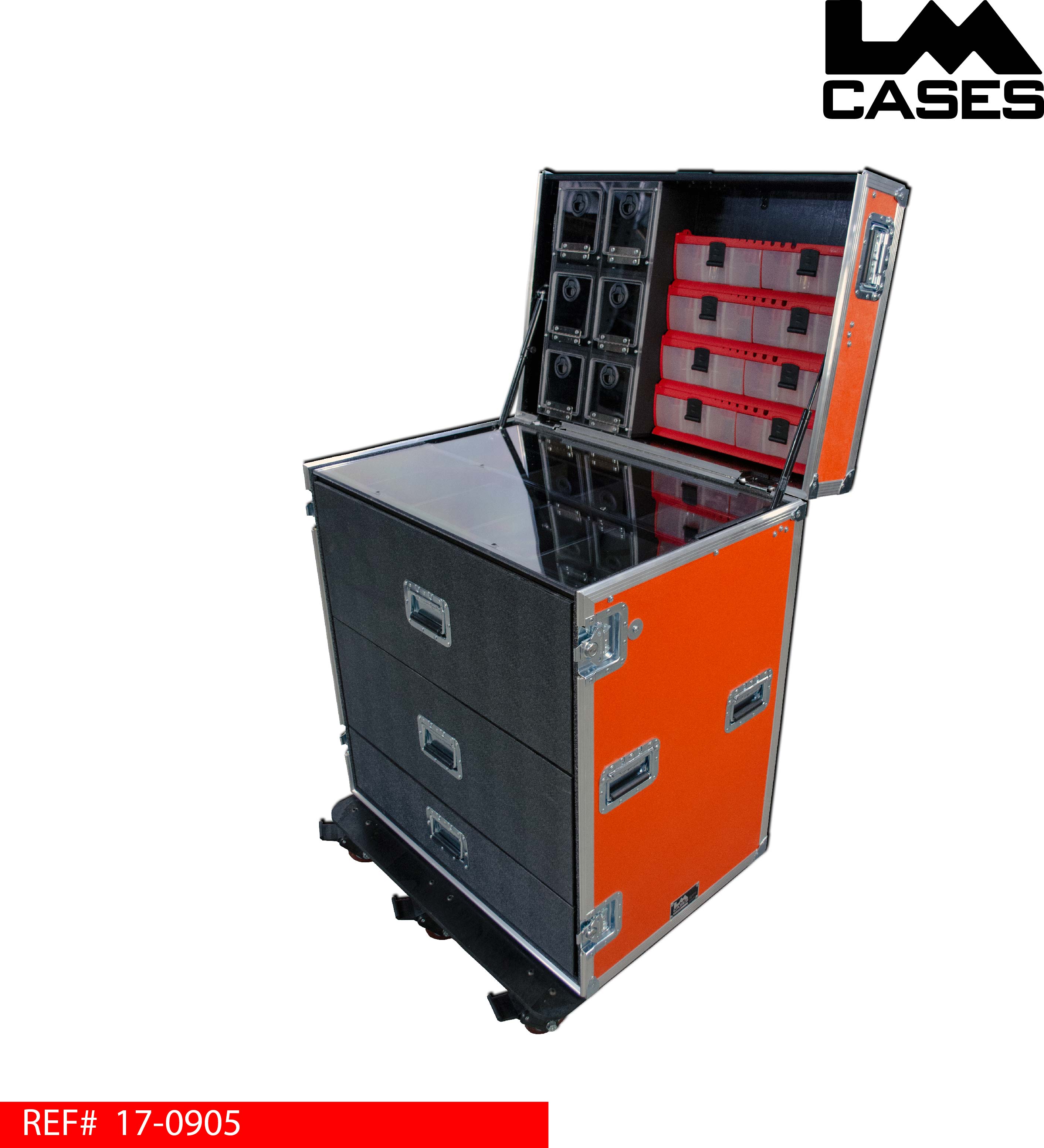

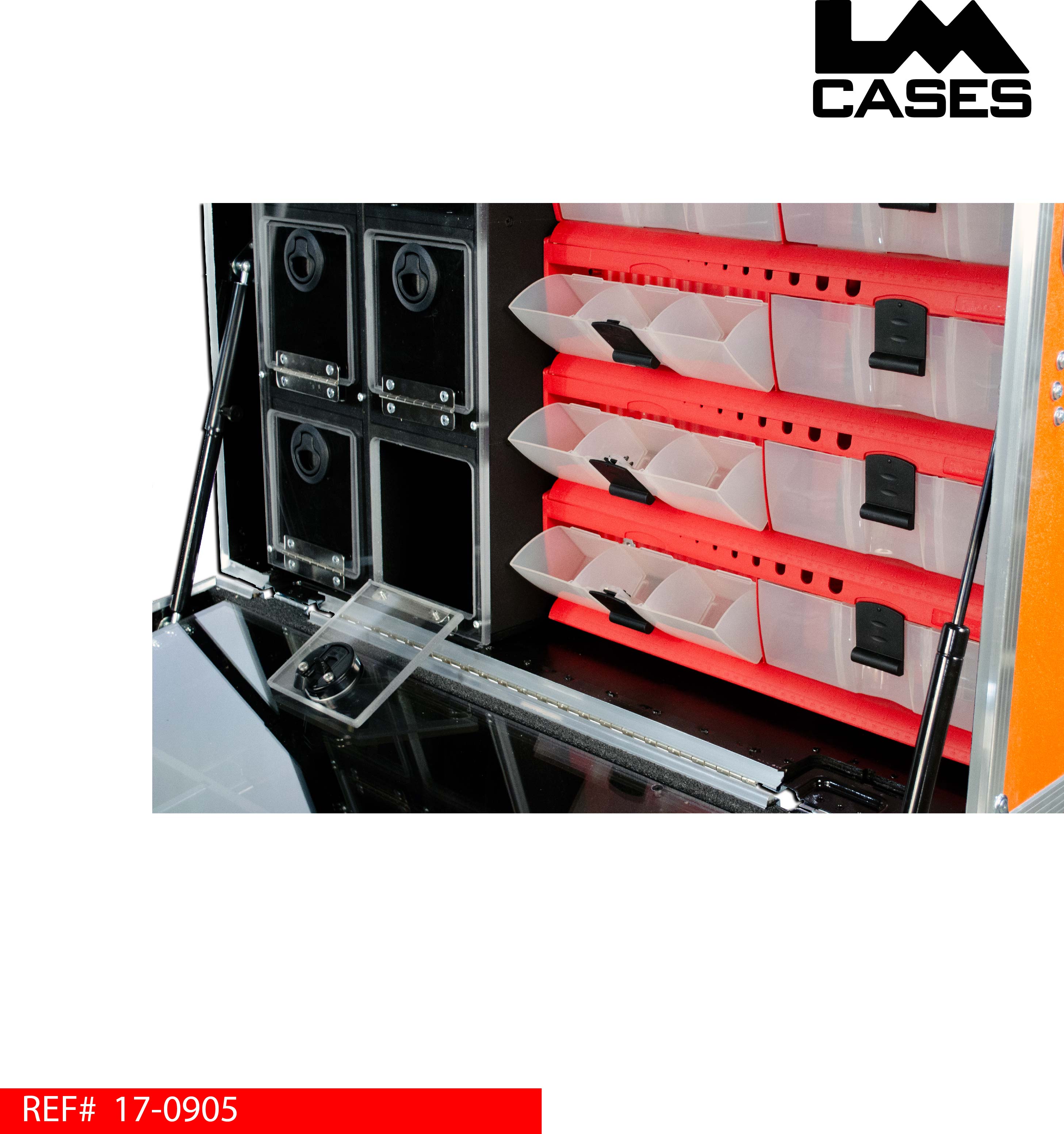

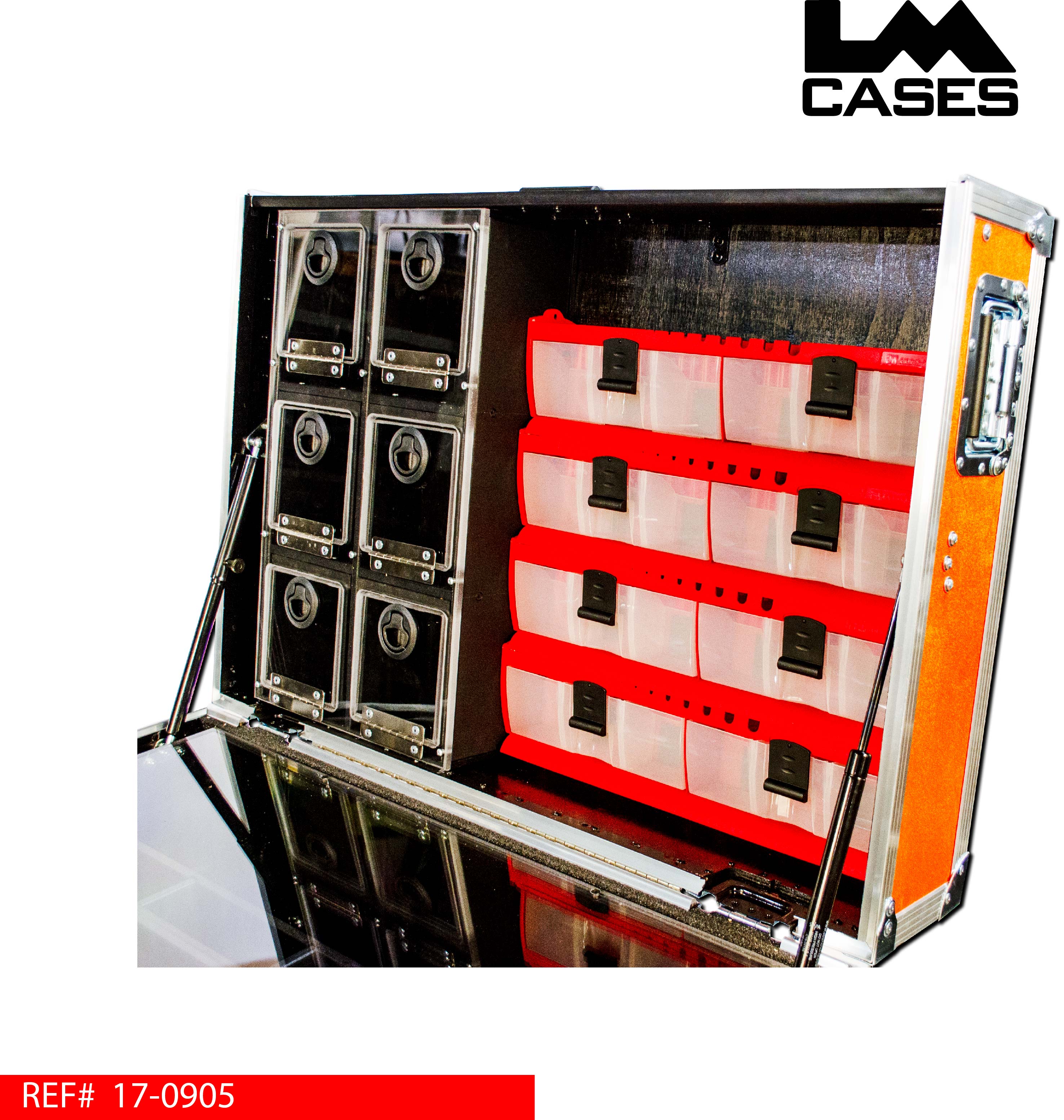

This trunk was built for the Cleveland Browns. The case is designed to be a mobile work station that holds a variety of accessories, such as tape and various tools. The trunk lid features four Tilt Lock bin units that provide eight individual storage compartments for small parts. The Tilt Lock bins feature translucent plastic that allow users to quickly see the contents of each bin at eye level. The lid also features 6 compartments constructed from 3/8" clear Lexan. Each compartment features a hinged door with a Southco slam latch. The lid is supported with gas springs that aid in the opening and closing of the lid. One of the two gas springs feature a locking mechanism to prevent the lid from accidentally closing during use. The main work surface is built out of clear 3/8" scratch resistant Lexan, which allows users to see the contents of the drawers mounted below. The main body of the case features three drawers. The drawers are built into a 1/2" plywood inner shell that is independent of the exterior case. The separate shell allows the drawers to be independent from the exterior case, which allows the appearance of a cleaner exterior due to the lack of exposed rivets used for mounting the drawers. It also prevents any flexing or loading that the case exterior endures from transferring to the drawer glides. Each drawer is custom built out of 1/2" Baltic Birch plywood and mounted on HD Accuride glides. The top two drawers feature three removable dividers allowing each drawer to be divided into four compartments. Each compartment in the top two drawers is 7.25" wide x 21" deep x 11" tall. The bottom drawer features two removable dividers for a total of three compartments. Each compartment is 9.75" wide x 21" deep x 6" tall.

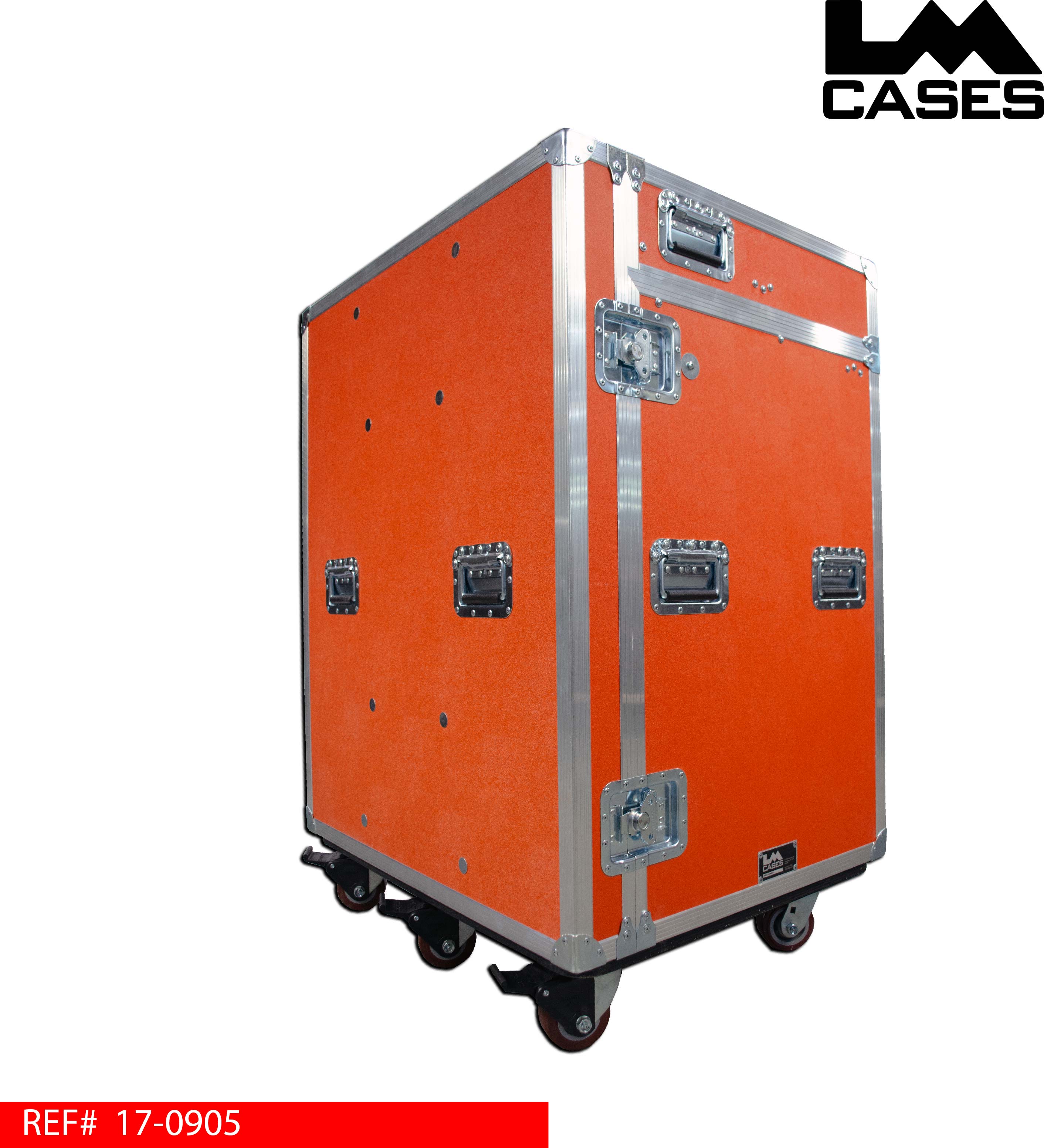

The trunk exterior is built out of 1/2" plywood laminated with orange ABS plastic. The trunk rides on HD Colson 4" x 2" casters (three are locking) and features ten deep recessed handles. The front lid features retractable legs to make a table that is 36.75" x 42". The maximum OD dimensions including corners and casters are 36.75" wide x 28.75" deep x 49.25" tall.

Special thanks to the Cleveland Browns!
