Cleveland Browns Field Trunk Workbox

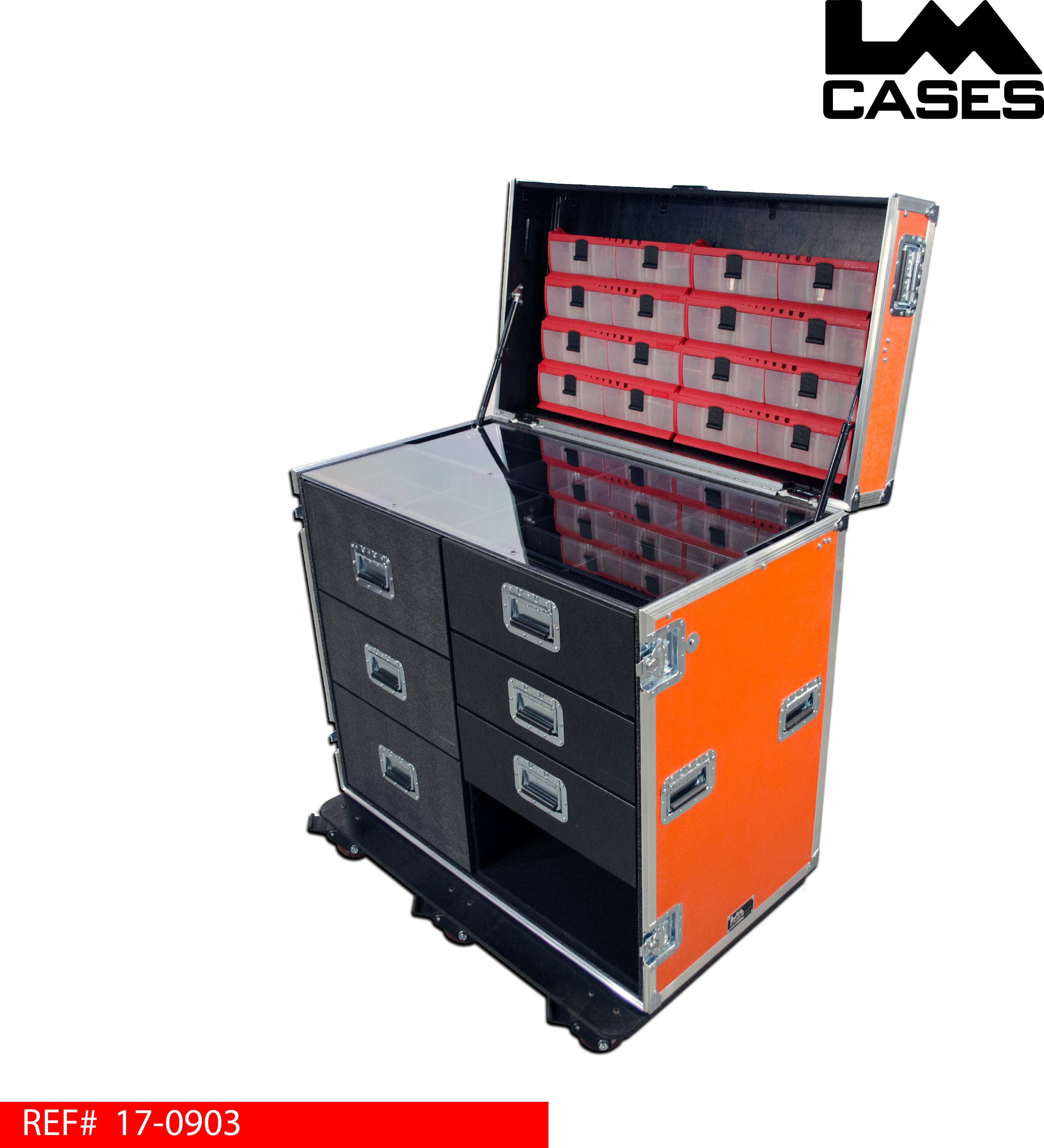

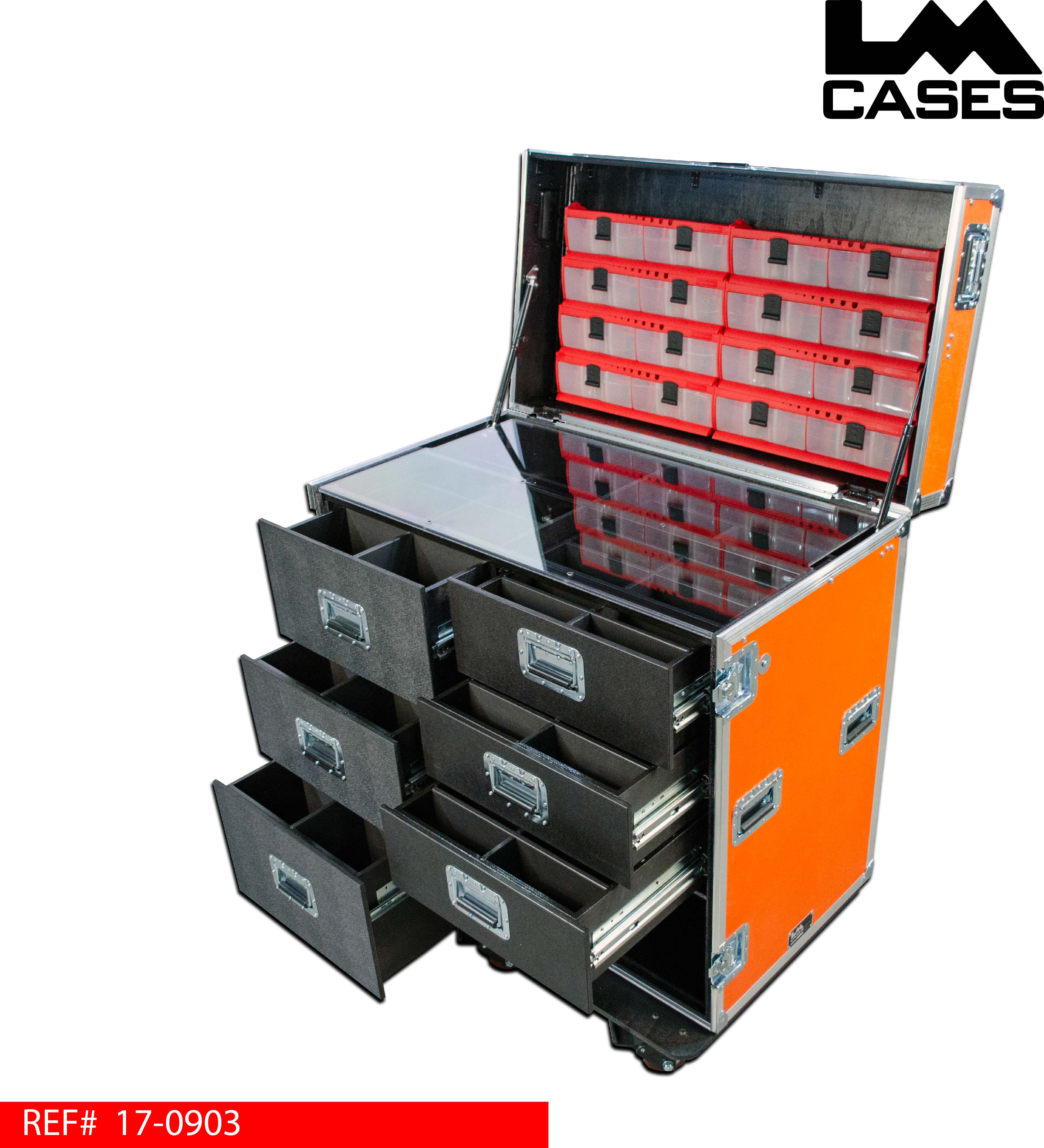

This trunk was built for the Cleveland Browns. The case is designed to be a mobile work station that holds a variety of accessories, such as tape and various tools. The trunk lid features eight Tilt Lock bin units that provide sixteen individual storage compartments for small parts. The Tilt Lock bins feature translucent plastic that allow users to quickly see the contents of each bin at eye level. The lid is supported with gas springs that aid in the opening and closing of the lid. One of the two gas springs feature a locking mechanism to prevent the lid from accidentally closing during use. The main work surface is built out of clear 3/8" scratch resistant Lexan, which allows users to see the contents of the drawers mounted below. The main body of the case features six drawers. The drawers are built into a 1/2" plywood inner shell that is independent of the exterior case. The separate shell allows the drawers to be independent from the exterior case, which allows the appearance of a cleaner exterior due to the lack of exposed rivets used for mounting the drawers. It also prevents any flexing or loading that the case exterior endures from transferring to the drawer glides. Each drawer is custom built out of 1/2" Baltic Birch plywood and mounted on HD Accuride glides. The top left drawer features two removable tape caddies built out of 1/2" marine grade plastic. Each tape caddy features ten spindles for a total of twenty. Two drawers are split into six compartments with removable dividers, and two drawers are split into twelve compartments with removable dividers. The bottom right portion of the case features a 20.5" wide x 10.625" tall open storage compartment for bags.

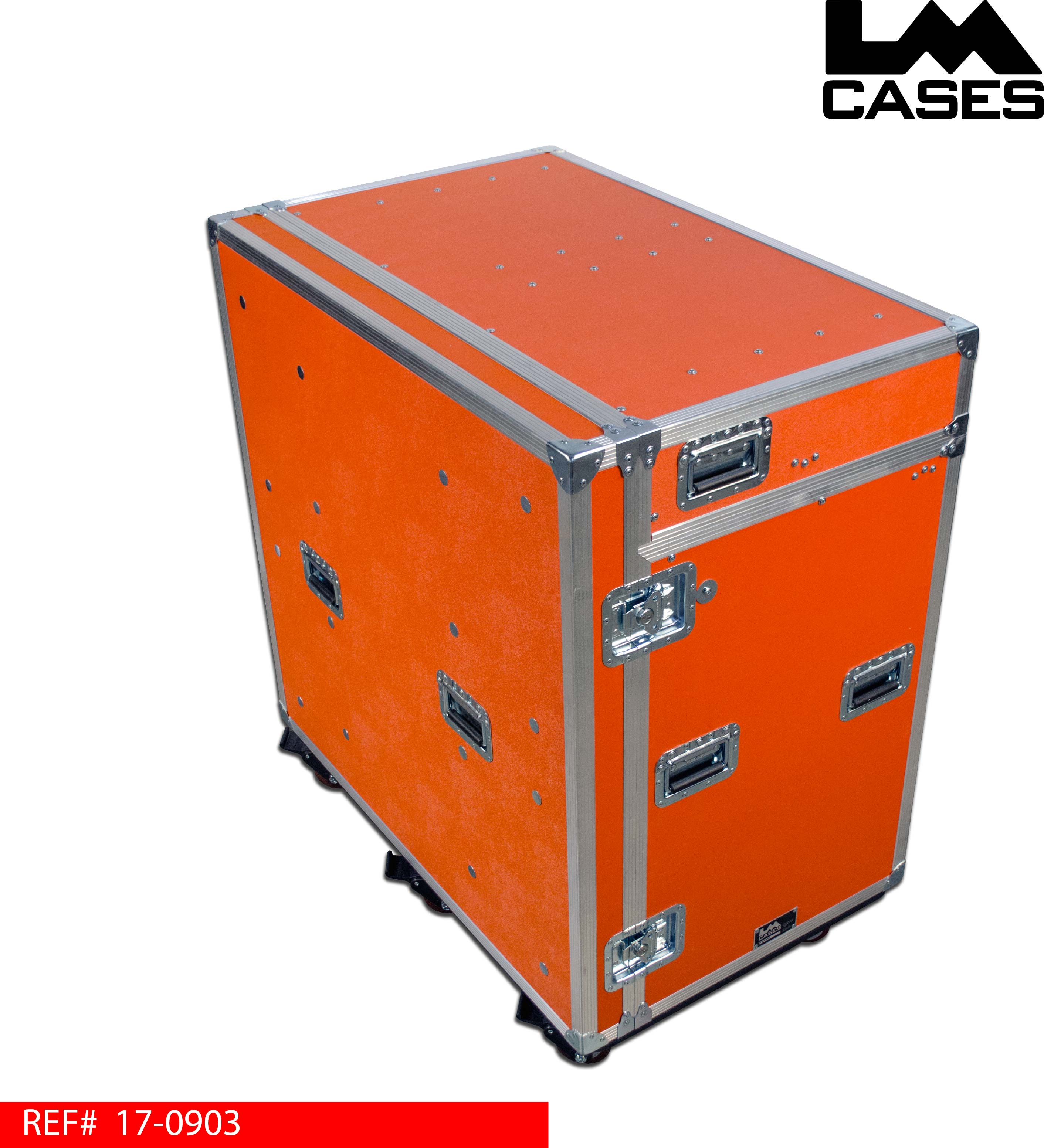

The trunk exterior is built out of 1/2" plywood laminated with orange ABS plastic. The trunk rides on HD Colson 4" x 2" casters (three are locking) and features ten deep recessed handles. The front lid features two sets of table legs to make a table that is 46" x 42". The maximum OD dimensions including corners and casters are 45" wide x 28.75" deep x 50.125" tall.
Special thanks to the Cleveland Browns!
