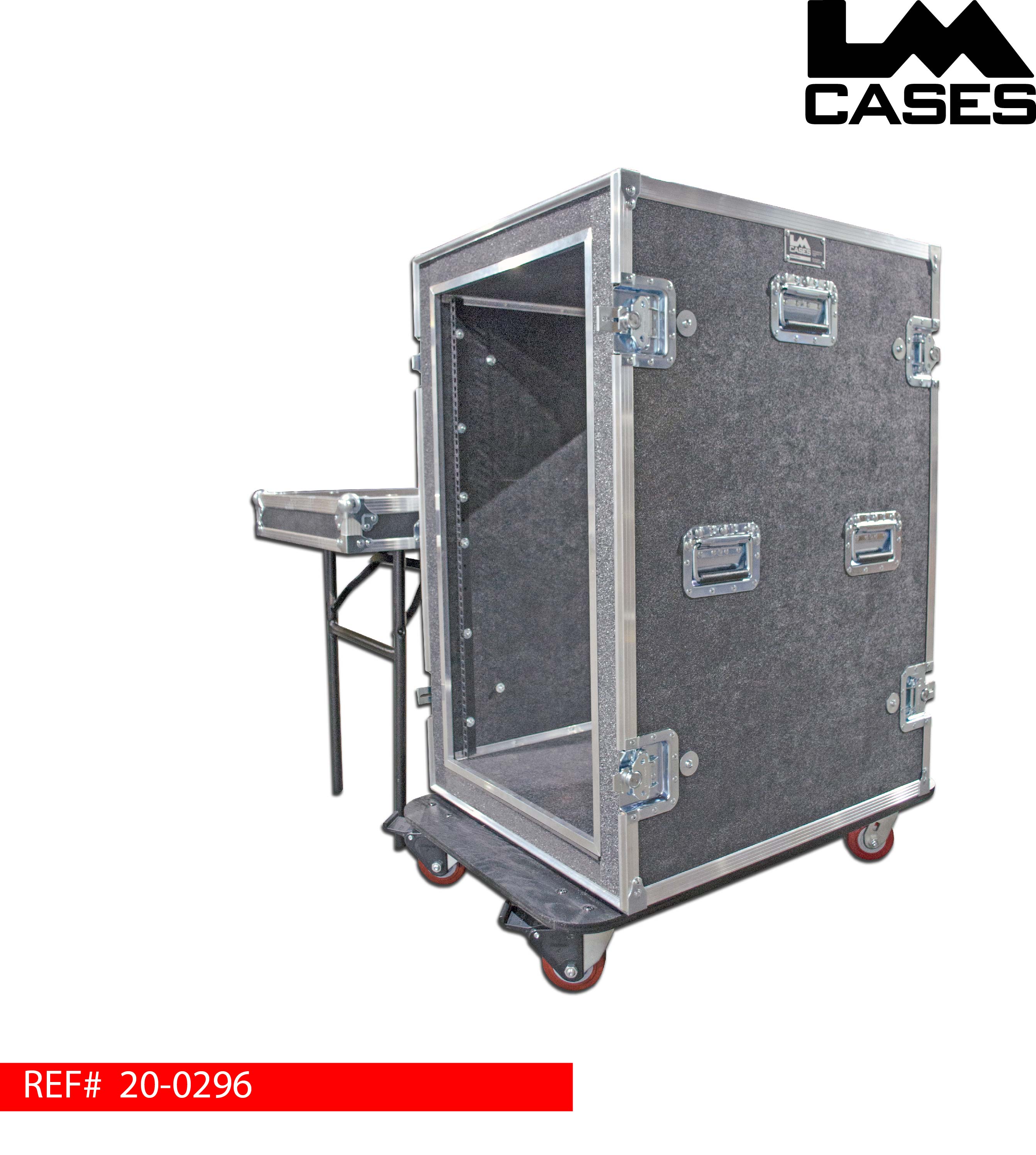

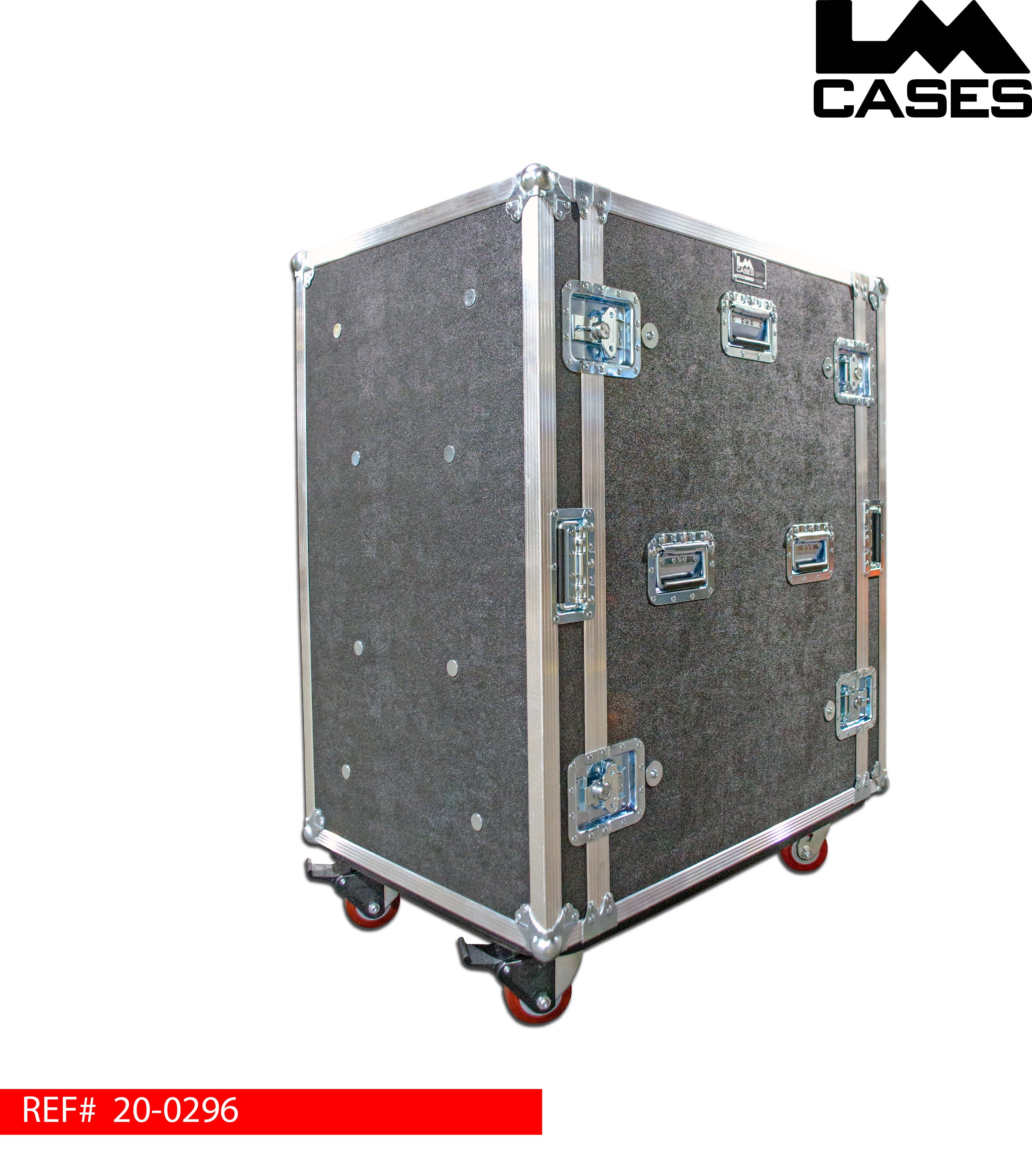

20RU Portable Heavy Duty Server Rack Case

This heavy duty server rack is designed for portable applications. Designed for transporting servers between data centers, trade shows and for mobile command stations. The rack is built out of ½” plywood laminated with your choice of ABS plastic colors. The inner rack shell is also built out of ½” plywood. The inner shell features a black ABS plastic lined interior. Box style square cage nut rack rail is provided to accommodate a variety of server and networking equipment mounting brackets. The rack shell is 29” deep. The front and rear rails are recessed ½”. The rails are spaced 28” apart.

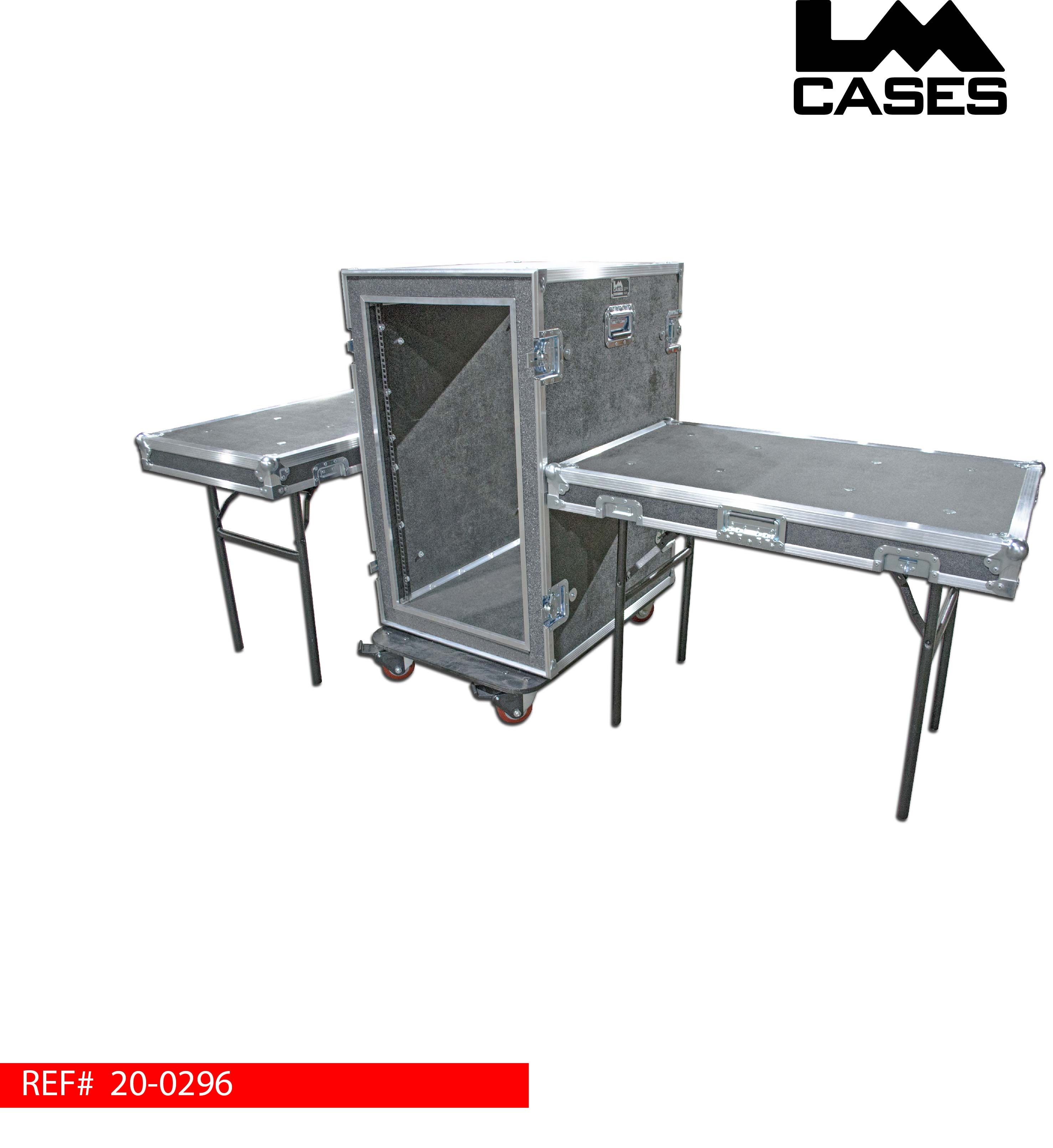

The exterior case features 3 handles on the right and left side. 2 handles are positioned as lift handles, with a third centered as a pull handle at an ergonomic height. 2 slim recessed handles are mounted in the sides of each lid to aid in removing them and moving the lids once they are removed. Each lid features table legs. These legs are heavy duty powder coated steel. The lids are designed to act as free standing tables allowing for mobile office set ups. The case rides on 4” x 2” HD Colson casters mounted on a full sized ¾” caster board. All edges are routed and finished. 2 casters are locking. Each lid can be locked via 2 pad-locking latches per.

To purchase this case from our online store, CLICK HERE.
