150 Capacity Amazon Kindle Fire Charging Transport Case
This case was designed for American Image Displays to transport and charge 150 Amazon Kindle Fire tablets. The case holds each tablet in an individual compartment and provides a dedicated USB outlet per slot.

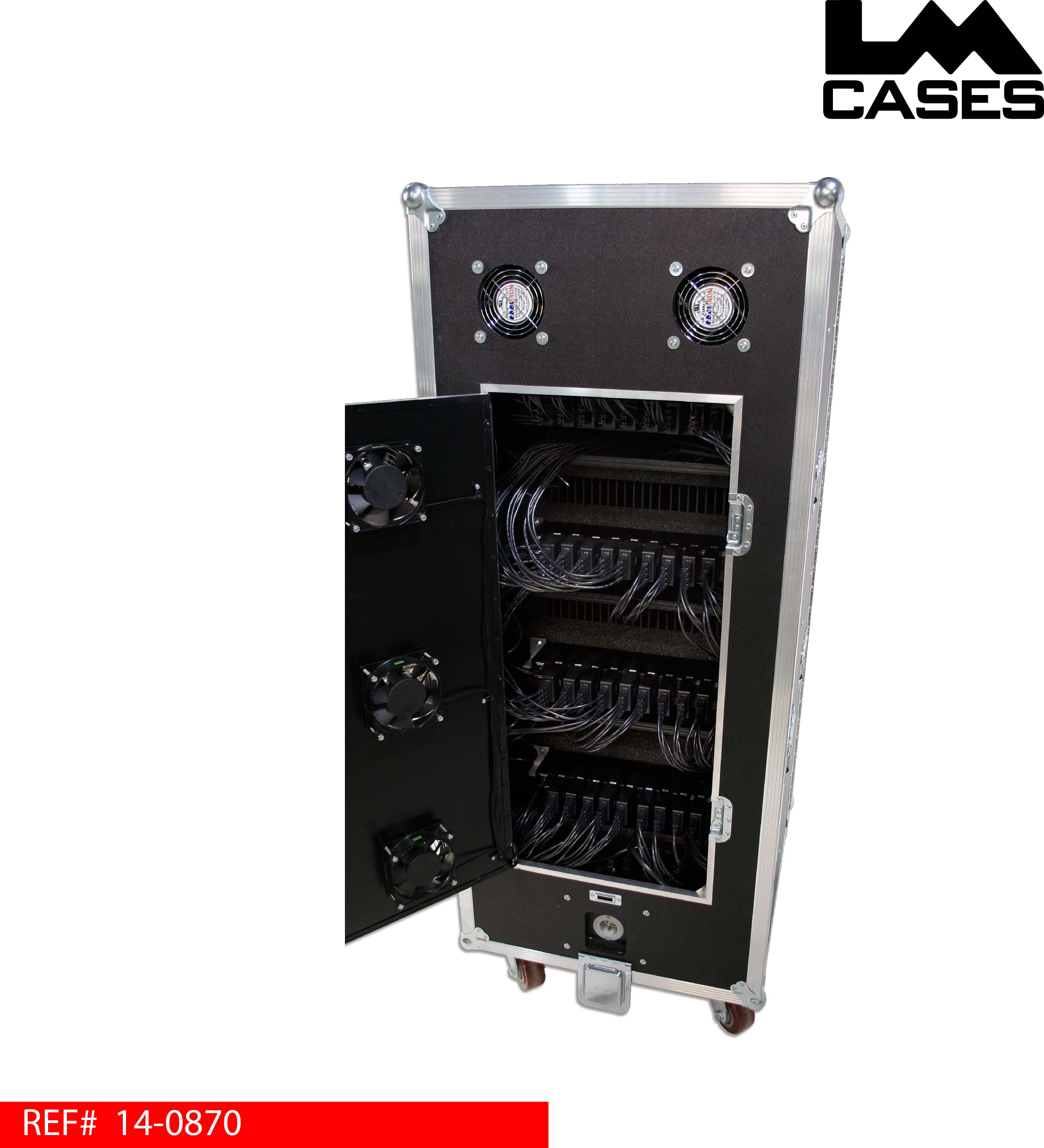

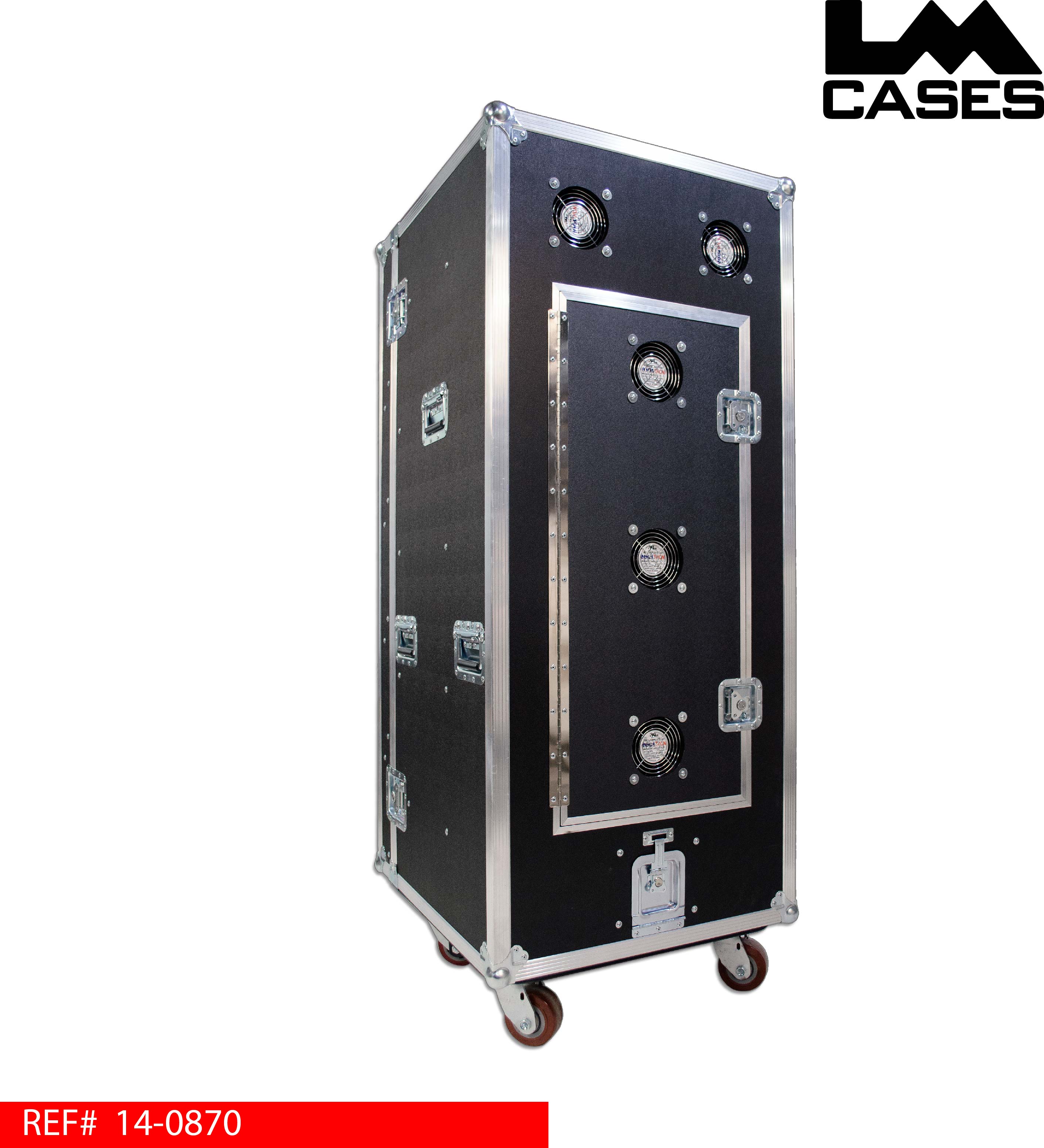

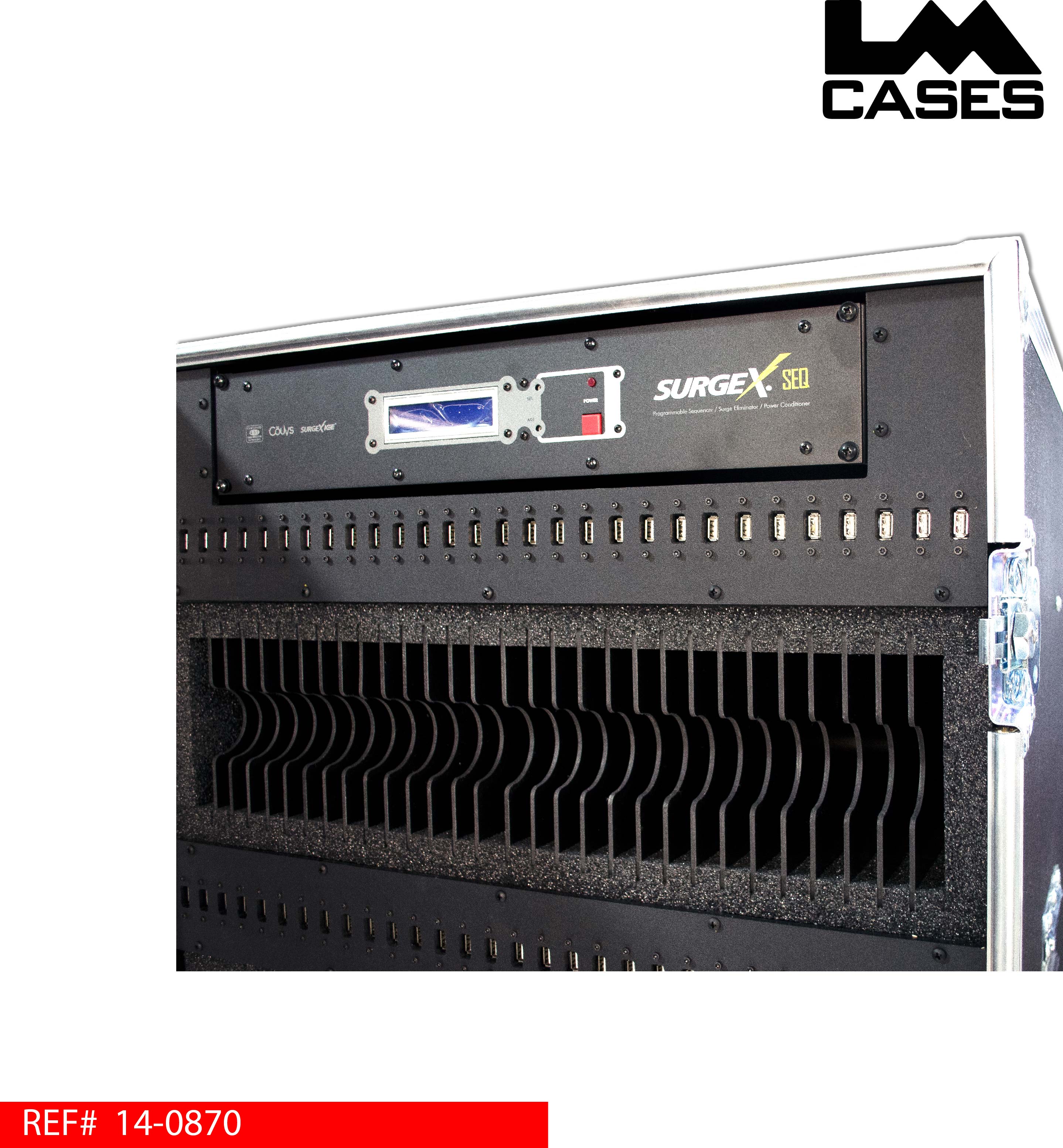

All components were provided and installed by the LM Cases Custom Integration Department. Power is brought into the case via a custom 20 amp power box allowing the case to remain closed while the tablets are charging, also provided is a 12awg 25' 20amp extension cord to supply power. Power is distributed via a sequencer that powers on each bank of 25 tables in a timed delay sequence to avoid tripping breakers. Panel mounted USB 2.0 jacks provide 12w power for each slot. Cooling is provided via 2 fans mounted in the rear access door, the fans exhaust hot air from the case. Recessed vent dishes are mounted in the front lid allow air to flow from front to back exhausting heat from the case.

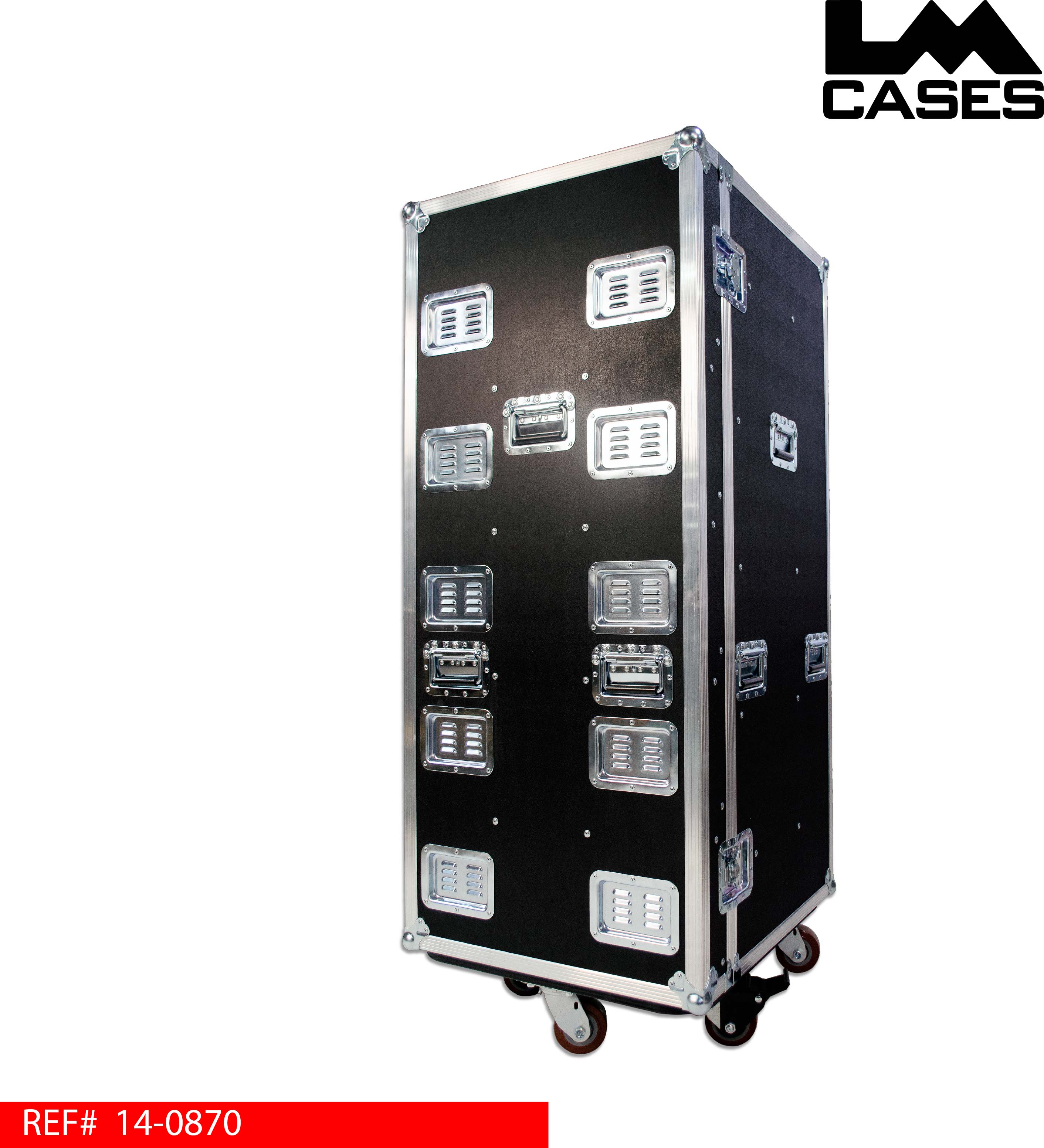

The exterior case is built out of 1/2" plywood and featured pad-lockable latches and Colson 4" x 2" HD Casters.
Special thanks to American Image Displays.
